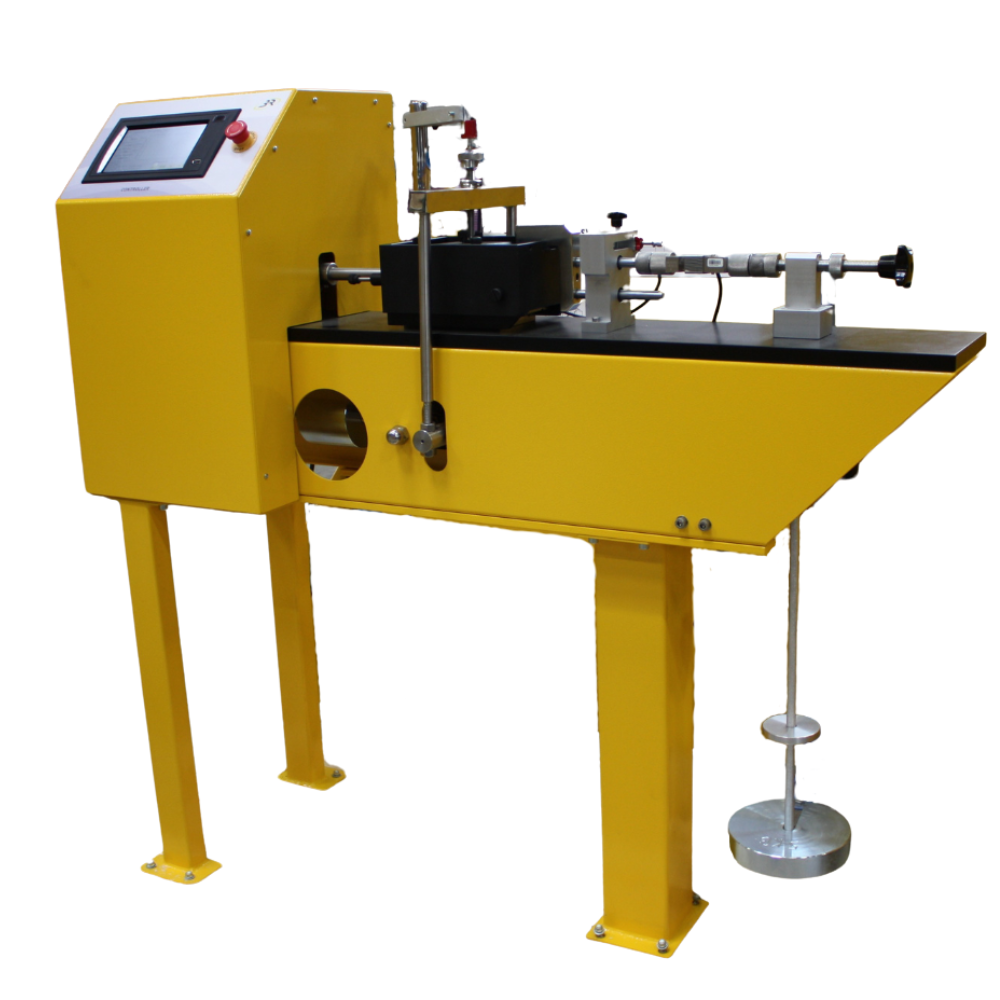

Automatic Shear Testing Machine
Shear testing machine technical specifications
- Control: Control system via digital control panel
- Vertical load application: Amplification cam with ratios of 9:1, 10:1 and 11:1
- Maximum shear force: 5000 N (5 kN)
- Adjustable shear rate: 0.00001 to 9,99999 mm/min
- Speed range: 0.00001 to 10 mm/min
- Maximum vertical load: 0 to 500 N
- Displacement sensors :
- Horizontal: 25 x 0,001 mm / Vertical: 10 x 0,001 mm
- Dimensions: 450 x 1250 x 1200 mm
- Weight: 110 kg
- Power supply: 220 – 240 V, 50 – 60 Hz, single-phase
- Power: 1100 W
Accessories included with theshear testing machine
- Control software
- Load cell 5 kN
- Linear potentiometric displacement sensors: 10 x 0,001 mm and 25 x 0,001 mm
Additional accessories for theshear testing machine
| Weight set 50 kg | Square mold 60 x 60 m | Square mold 100 x 100 mm | Round mold ø 60 mm | Round mold ø 100 x 100 mm |
| (4 x 10 kg, 5 kg, 2 x 2 kg, 1 kg) | Cutting ring 60×60 mm
Extractor 60x 60 mm Shear box 60×60 mm
|
Cutting ring 100 x 100 mm
Extractor 100 x 100 mm Shear box 100 x 100 mm
|
Cutting ring Ø 60 mm
Extractor Ø 60 mm Shear box Ø 60 mm
|
Cutting ring Ø 100 mm
Extractor Ø 100 mm Shear box Ø 100 mm
|
