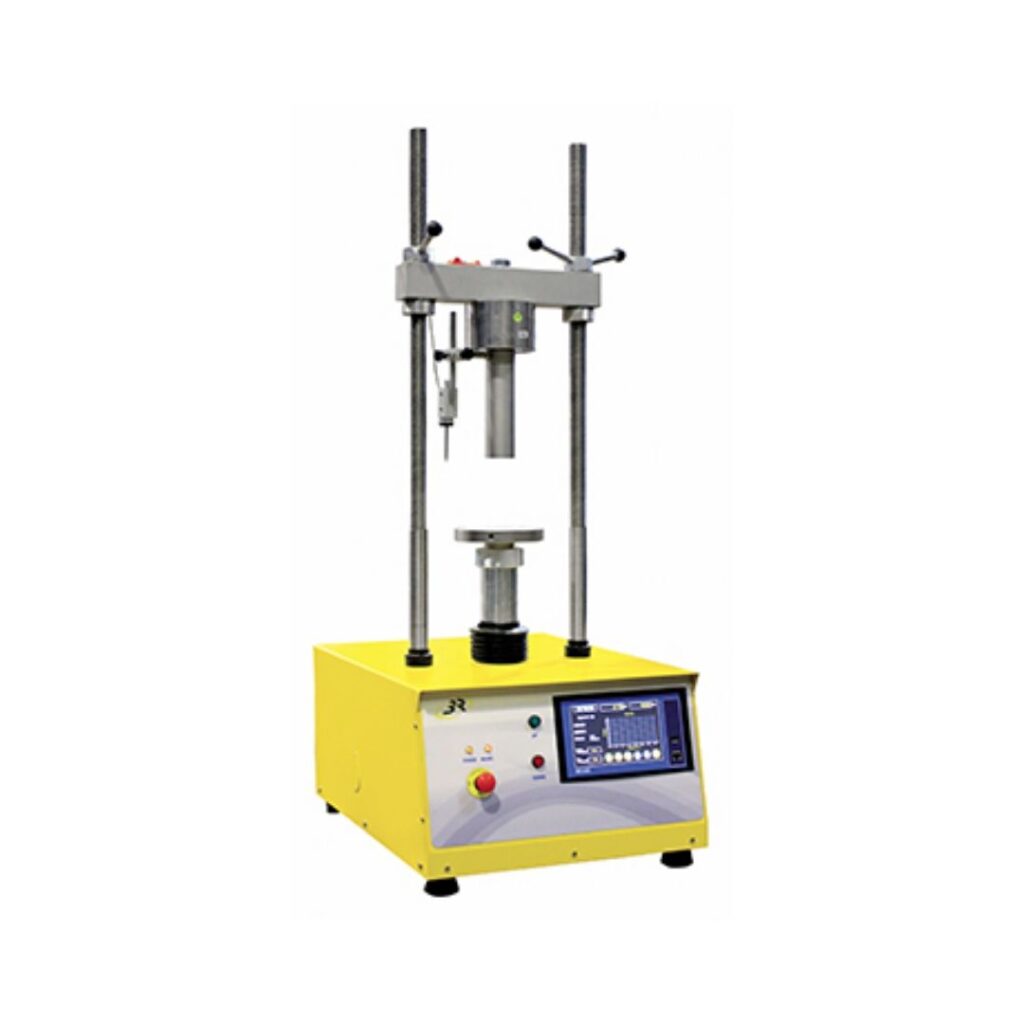

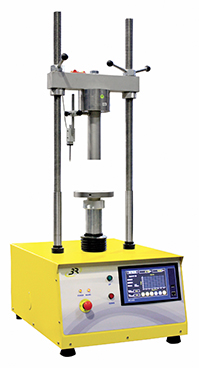

CBR Testing Machine

CBR testing machine with robust two-column frame.

Standards:EN 13286-47, NF P94-078

Standards

EN 13286-47
NF P94-078

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

CBR Testing Machine

Reliable and repeatable results

Suitable for standards-based testing

Local after-sales support

Electromechanical machine enabling automatic CBR testing according to the applicable standard

Description

CBR Testing Machine

CBR testing machine with robust two-column frame.

Standards:EN 13286-47, NF P94-078

  • Mobile upper crosshead
  • Capacity 50 kN
  • Penetration piston
  • Test speed: 1,27 mm/min
  • Enables testing according to BS, ASTM or EN standards
  • Test control via TOUCH LCD screen
  • Sensors installed on the frame
  • LCD display of applied load/penetration value graph
  • High resolution: 65.000 points
  • Memory storage for up to 100 results
  • 1 RJ45 output for transferring results to PC
  • 2 analog outputs: load cell + sensor
  • Power 750 W
  • Dimensions: 470 x 610 x 950 mm
  • Weight: 103 kg




REF: LUTMACHCBR
