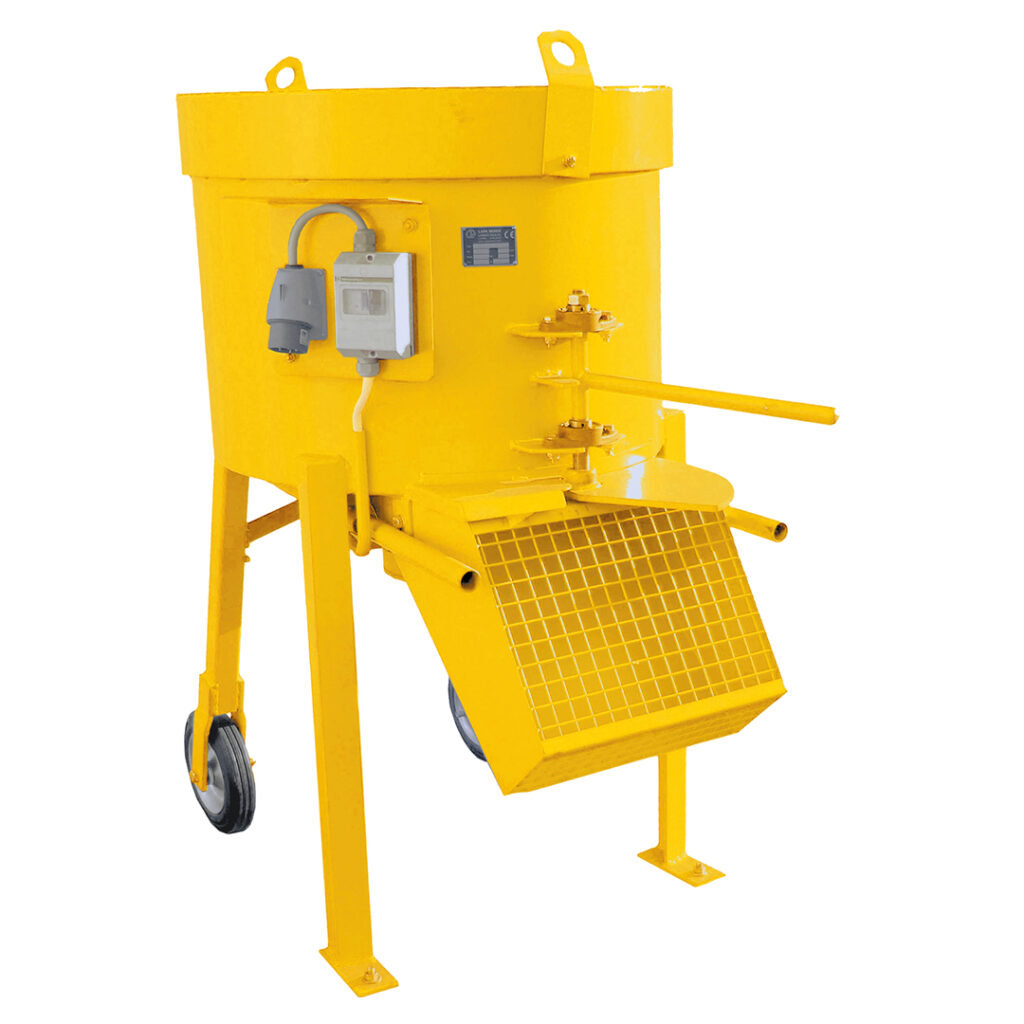

Laboratory concrete mixer

Mixers used in schools and concrete laboratories.

They can also be used for screed mixing on site.

These mixers feature:

  • Reduced mixing time
  • Comfortable dimensions
  • Simple and durable construction

Standards

EN 12390-2

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Laboratory concrete mixer

Suitable for standards-based testing

Reliable and repeatable testing

Local after-sales support

Description

Mixers used in schools and concrete laboratories. They can also be used for screed mixing on site.

These mixers feature:

  • Reduced mixing time
  • Comfortable dimensions
  • Simple and durable construction

COMPLIES WITH STANDARD

Features:

  • Manual discharge door
  • Hardox 400 mixing blades
  • Three-phase motor
  • Equipped with telescopic handles for easy transport
  • Suitable for dry mixes or surfacing coatings
SpecificationsUnitC50C100C150
Usable dry capacitylitres70140180
Fresh concretelitres60120150
Compacted concretelitres50100125
Compacted concretekg120240300
Electrical powerkW2.23.04.0
Weightkg250300380
Internal diametermm7509501,100
Wall heightmm500500500

C50……….. REF: LMAL-50

C100……… REF: LMAL-100

C150……… REF: LMAL-150
