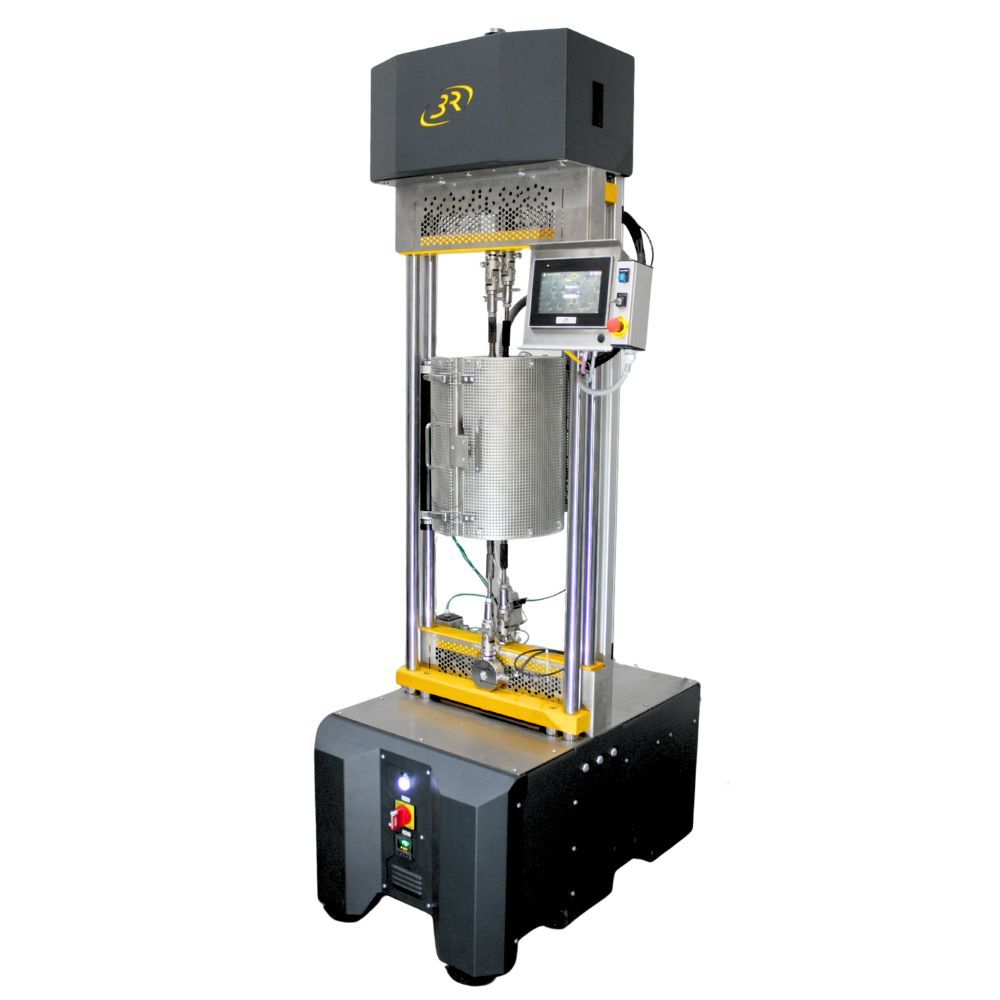

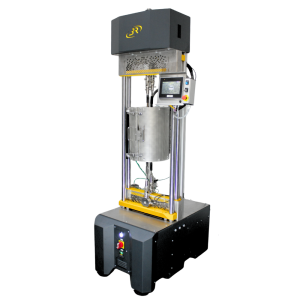

Dual-axis electromechanical creep testing machine with furnace
A concentrate of engineering and efficiency
Designed by 3R, this machine combines precision electromechanical technology with an innovative dual-axis architecture. Each axis operates totally independently, while sharing a single high-performance furnace guaranteeing exceptional thermal homogeneity up to 1200 °C.
Compact, robust and easy to use, it integrates seamlessly into any laboratory environment. Its intuitive control interface and advanced connectivity provide a smooth operator experience (no moving masses), while ensuring precise and traceable test monitoring.
Benefits for you
- Productivity: Perform two complete tests in parallel, without interference. Double your results in the same testing time for optimal efficiency.
- Ergonomics: No more suspended masses: touch control, enhanced safety and operator comfort throughout the entire test duration.
- Budget: Reduce your investment and operating costs by 50 %: a single furnace, less energy consumed and simplified maintenance.
- Space optimization: Install up to 4 m machines per square meter, without modifying your laboratory environment.
- Reliable results: Obtain stable, traceable data compliant with ASTM E139 / ISO 204standards, guaranteeing the reliability of your tests.
- Connectivity: Benefit from remote supervision, automatic alerts and integrated remote maintenance for continuous and secure monitoring.
- Energy savings: Thanks to an optimized electromechanical design, reduce your energy consumption and control your environmental footprint.
Technical specifications
| Dimensions (L x W x H) | 600 x 935 x 2120 mm |
| Capacity | 25 kN per axis |
| Stroke | 160 mm |
| Displacement resolution | 2 nm |
| Max. speed under load | 1,4 mm/s |
| Temperature range | 20°C – 1200°C |
| Thermal stability | ±3°C |
| Power supply | 230 V – 20 A – 4,6 kW |
| Weight | 450 kg |

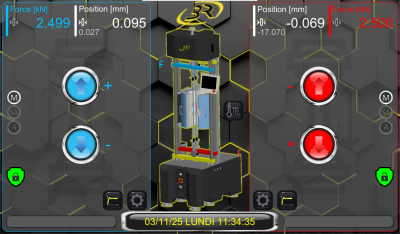

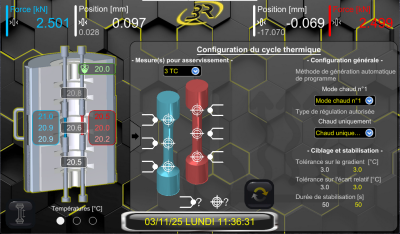

Software
