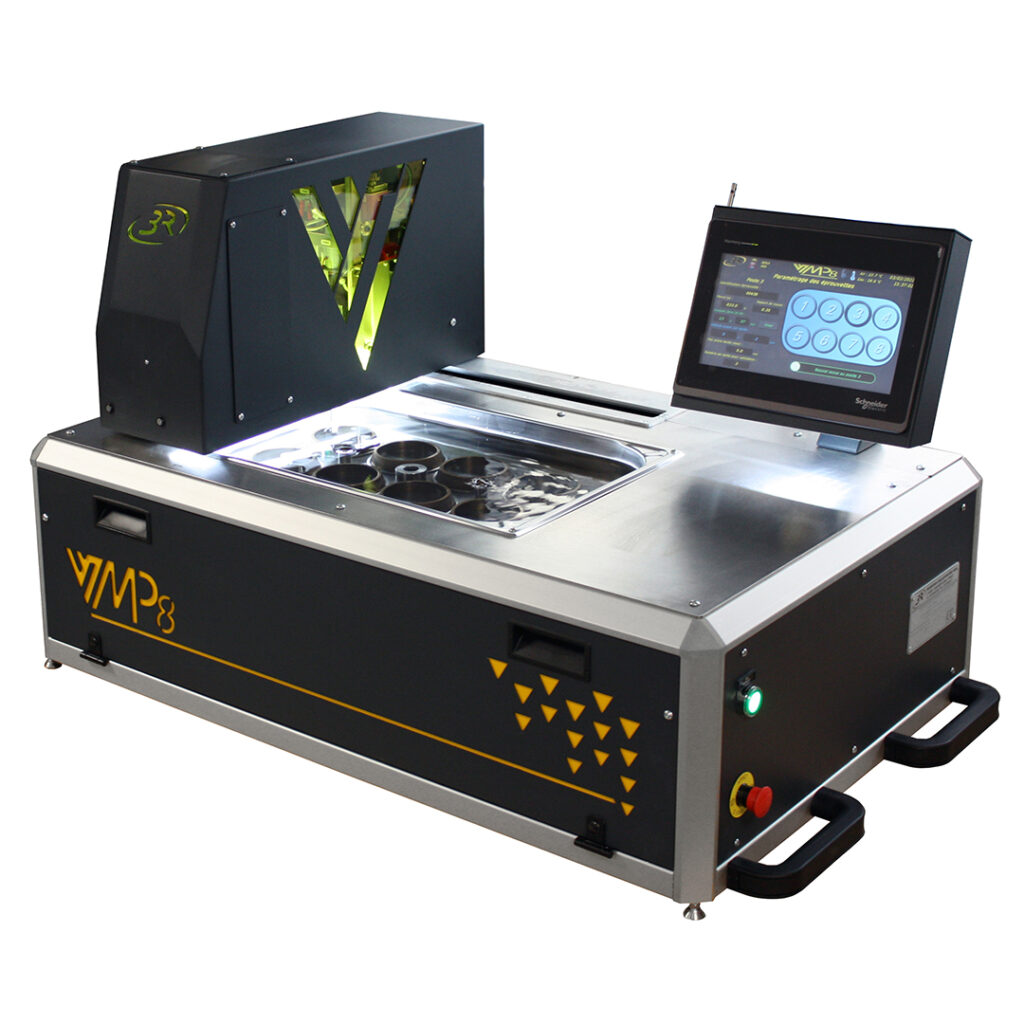

Determines the amount of Water required to produce a Cement paste according to a Standard
Standards: EN 196-3, EN13454-2, ASTM C187, ASTM C191, ASTM C807, NM 196-3, EN 480-2, EN 459-2.
With 8 measuring stations
• Consistency and setting time tests in air or water (determination of initial and final setting time)
• Fully autonomous (using an industrial HMI) and controlled by a latest-generation programmable logic controller, network-connectable and compatible with remote maintenance (via internet)
• 10” touchscreen and very user-friendly graphical interface
• Remote water temperature management according to the standard used and in a temperature-controlled laboratory (cooling unit optional).
• Mechanical and automatic needle cleaning
• Supplied with: 8 m brass molds; 8 supports and centering devices; 2 consistency needles; 2 setting needles;
• Power supply: 220-240 V 50-60 Hz
• Dimensions (L x W x H): 1070 x 620 x 600 mm
• Weight: Approximately 80 kg
REF: F09G2114000
