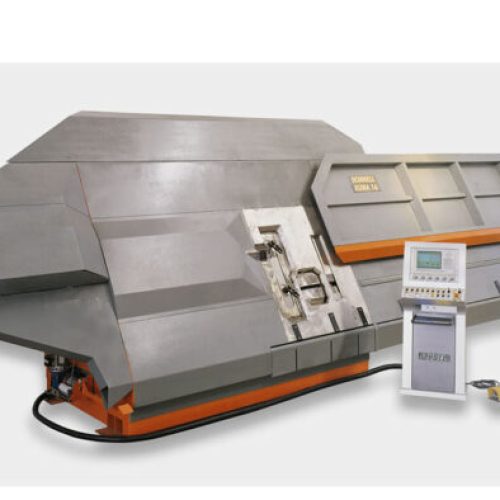

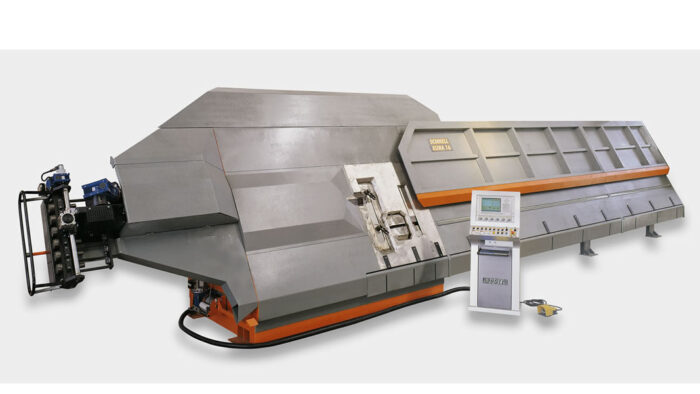

Electropneumatic machine, bidirectional with 2 t bending heads, for cold-drawn or hot-rolled wire in coil, capable of working from Ø8 to Ø16mm. This machine enables the production of stirrups, frames, pins, straight bars or bent bars on both sides.
Technical specifications of the EURA 16:
- Feed speed: 140m/min
- Bending capacity: 1x Ø8 to Ø16 and 2x Ø8 to Ø12
- Bending speed: 1.680°/sec
- Voltage: 380v
- Power consumption: 5kw/h
- Frequency: 50hz
Configuration of the EURA 16:
- Rebar magazine with insertion motor
- Insertion assistance winch
- Motorized external straightener
- Feed and measuring system
- Motorized internal straightener
- Cutting unit
- Double bending units
- Electrical panel
- Control unit
The advantages of using our machine:
- Fast and very easy-to-use machine.
- Versatile machine (stirrups and bent bars)
- Low energy consumption
- Precise machine using servo motors
- Very quiet machine
- Simple and responsive maintenance (RSP)
