SCHNELL offers a complete range of automatic stirrup benders designed for the production of stirrups and shaped rebar.
Depending on the model, the machines can work:
- from coils
- from bars
- in monodirectional or bidirectional
- up to Ø20 mm
Bending, cutting and feeding movements are performed by servo motors, while other movements are pneumatic.
This technology enables:
- reduced power consumption compared to a hydraulic solution
- reduced noise level during operation
- reduced maintenance costs
Several safety systems can be integrated to adapt the machine to operating conditions and production requirements.
Technical specifications
| Model | Steel type | Working capacity | Straightening | Feed speed | Bending speed | Average consumption |
|---|---|---|---|---|---|---|

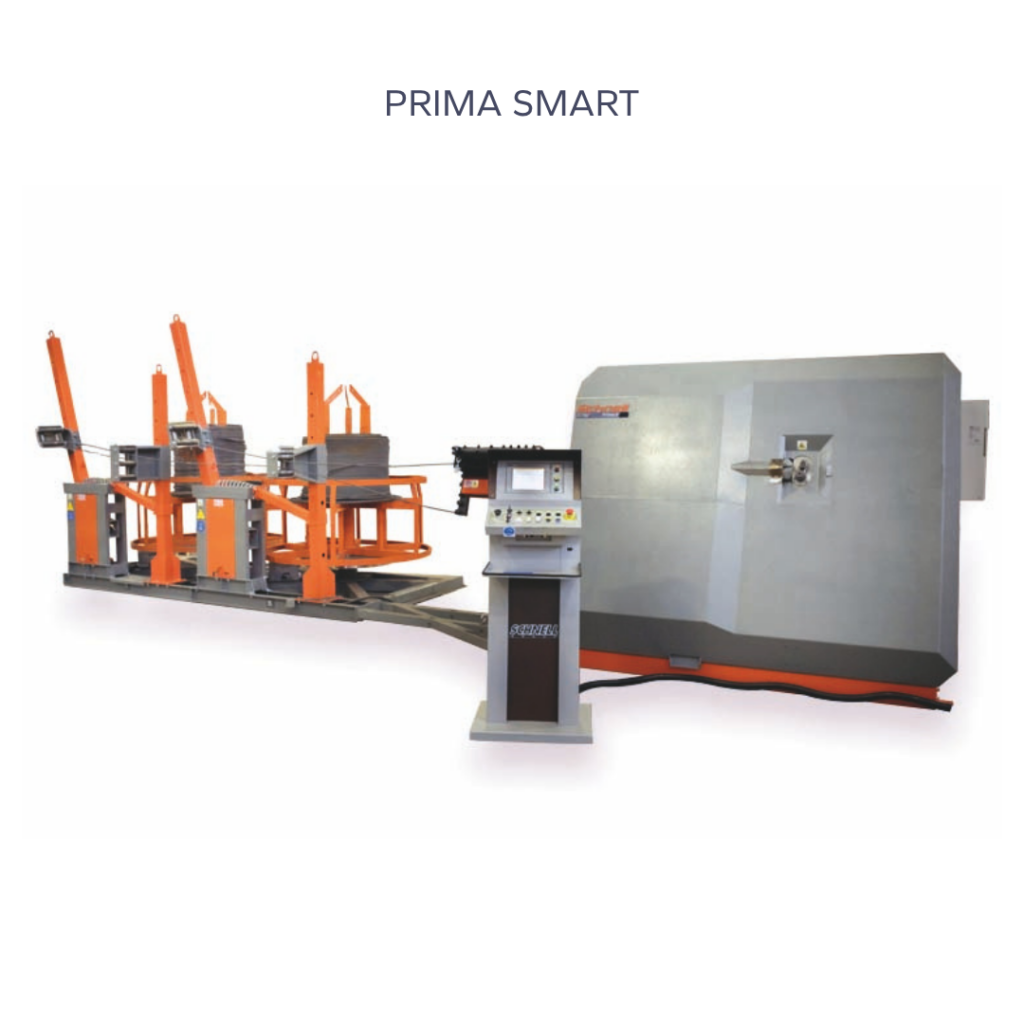

| PRIMA SMART | Coils | 1×12 / 2×10 | Manual with mechanical memory | 90 m/min | 1650°/s | 2 kW/h |
| PRIMA 13 | Coils | 1×12 / 2×10 | Manual with control unit memory | 130 m/min | 1650°/s | 2 kW/h |
| PRIMA 14 | Coils | 1×14 / 2×10 | Manual with electronic memory | 150 m/min | 1650°/s | 2 kW/h |
| FORMULA 14 | Coils | 1×14 / 2×10 | Motorized with electronic memory | 150 m/min | 1950°/s | 2 kW/h |
| FORMULA DISK | Coils | 1×14 / 2×10 | Motorized with electronic memory | 150 m/min | 2345°/s | 3 kW/h |
| COIL 16 | Coils | 1×16 / 2×12 | Motorized with electronic memory | 140 m/min | 1668°/s | 3 kW/h |
| COIL 20 | Coils | 1×20 / 2×16 | Motorized with electronic memory | 140 m/min | 1668°/s | 5 kW/h |
| BARWISER 16 N | Bars | 1×16 / 2×12 | — | 140 m/min | 840°/s | 2 kW/h |
| BARWISER 22 N | Bars | 1×20 / 2×16 | — | 120 m/min | 840°/s | 2 kW/h |
| BARWISER 22 N MULTIFEED | Bars / Coils | 1×20 / 2×16 (bars) 1×16 / 2×12 (coils) | Manual with electronic memory | 100 m/min | 685°/s | 2 kW/h |
Available options
- Anti-rotation
- Automatic wire change
- Receiving bench
- Option 3D
- Safety systems adaptable according to production requirements and working environment
Key features
- Automatic production of stirrups and rebar
- Working from bars or coils
- Monodirectional or bidirectional versions
- Diameters up to Ø20 mm
- Servo motors for bending, cutting and feeding
- Reduced power consumption
- Reduced operating noise
- Reduced maintenance costs
- Adaptable safety systems
