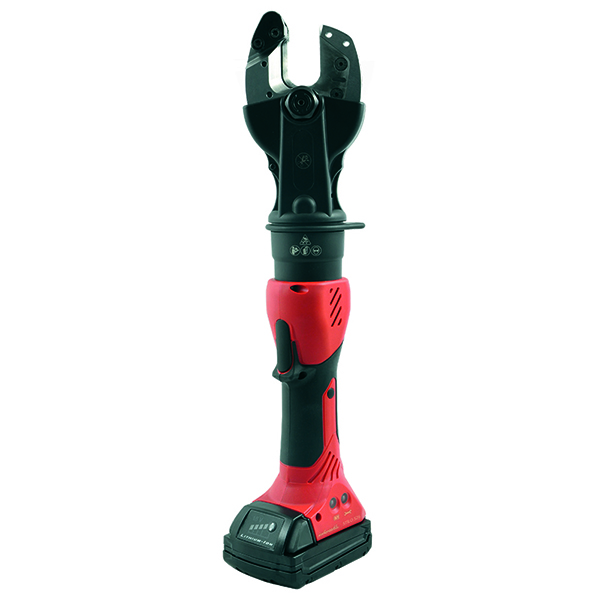

New!! STILO-26-S battery-powered hydraulic cable cutter Battery-powered electro-autonomous hydraulic cable cutter designed specifically for cutting cables (Cu-Al and steel) with a max. diameter of 26mm.
Lightweight and compact, it enables quick implementation for effortless work.
- Application: Aluminum, Copper, Almelec, Aldrey and STEEL (ACSR max. Ø 26 mm; steel cables 1×7 max. Ø 9,6 mm, 1x19max. Ø 11 mm and 7×19 max. Ø 12 mm. = see capacity table)
- Max. diameter: ø 26mm
- Cutting force: 44 kN
- Battery lithium Ion: 18V – 2 Ah
- Charging time: Approximately 30mn
- IP: 40
DO NOT USE UNDER VOLTAGE
- Open scissor-shaped cutting head
- Lightweight and compact structure
- Ergonomic design enabling easy use for both left-handed and right-handed users
- 360° free-rotating cutting head enabling easy cuts even in confined spaces
- Ergonomic bi-material handle for one-handed work reducing fatigue
- Automatic return to initial position at end of cycle
- Manual emergency return
- Interchangeable blades
- Automatic energy-saving mode after approximately 5 mminutes
- Mini USB port:
- Output of cutting curves and error messages
- Maintenance control
- Extremely fast work thanks to a 3 axial piston pump
- Multifunction LED indicator (battery charge, maintenance…)
Interchangeable blades
Dimensions: 457 x 126 x 82 mm Weight: 4,2 kg with battery Set (complete case) :
- Test report
- Battery-powered electro-hydraulic cable cutter
- Battery 18 V/1.5 Ah Li-Ion (RA12)
- Charger (LG8)
- USB cable
- Software (CD)
- Transport case with foam (dim. 450 x 500 x 140 mm – total weight with case 6.9kg)

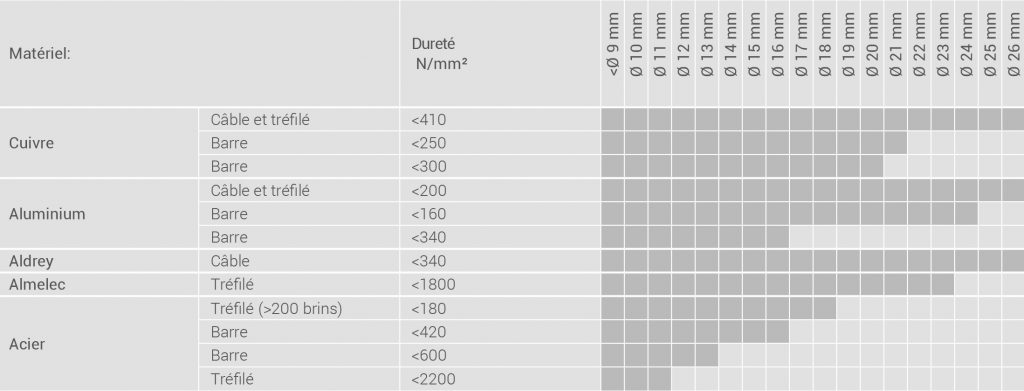

STILO-26-S cutting capacity table:
