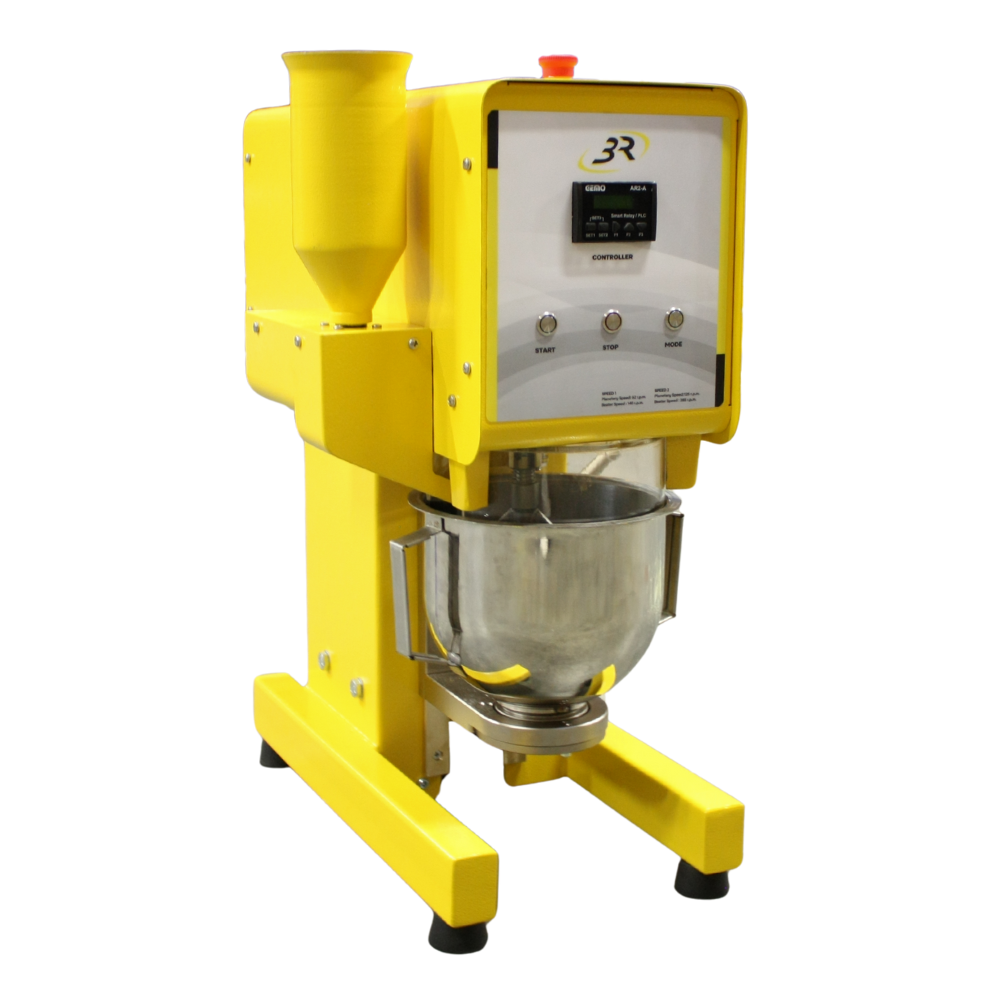

Automatic Mixer

Mixes mortars and cement pastes with automatic sand introduction

Standard: EN 196

This mixer enables mixing of mortars and cement pastes with automatic sand introduction. The arm rotation speed is 62 to 125 t / min and the beater speed 140 to 285 t / min. Possibility to select the program for different agitation.

The mixer is supplied complete with a 5 liter bowl and a blade

Standards

EN 196-1
EN 196-3

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Automatic Mixer

Reliable and repeatable results

Suitable for standards-based testing

Local after-sales support

Description

Automatic Mixer


Mixes mortars and cement pastes with automatic sand introduction

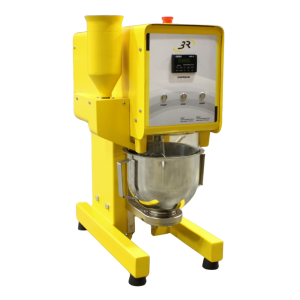

Standard: EN 1963R automatic mixer for cement or mortar

This mixer enables mixing of mortars and cement pastes with automatic sand introduction. The arm rotation speed is 62 to 125 t / min and the beater speed 140 to 285 t / min. Possibility to select the program for different agitation.

The mixer is supplied complete with a 5 liter bowl and a blade

• Dimensions: 300 x 555 x 610 mm – Weight: 56 kg

• Power supply: 230 V – 50/60 Hz, 1 ph – Electrical power: 250 W

• Bowl capacity: 4.7 liters

• Aluminum blade

REF: LUTMALMORTAUT

– Bowl …………………… REF: LUTMALMORTBOL

– Aluminum Blade……. REF: LUTMALMORTPAL



Related services

Maintenance and After-Sales Service

Request a quote

Similar equipment

M2A-V2-Photo-2-ouverte-cote

Automatic Leveling Machine

Technical specifications Weight: 115Kg Dimensions: D. 880 x W. 767 X H. 400mm P...
Automatic Leveling Machine
MALAXEUR-A-MORTIER-LTESTMAL-V

Automatic or Manual Mortar Mixer

Automatic or Manual sand introduction Standard: EN 196 Capacity: 5 liters Dimen...
Automatic or Manual Mortar Mixer
malaxeur-a-mortier-de-laboratoire-3R

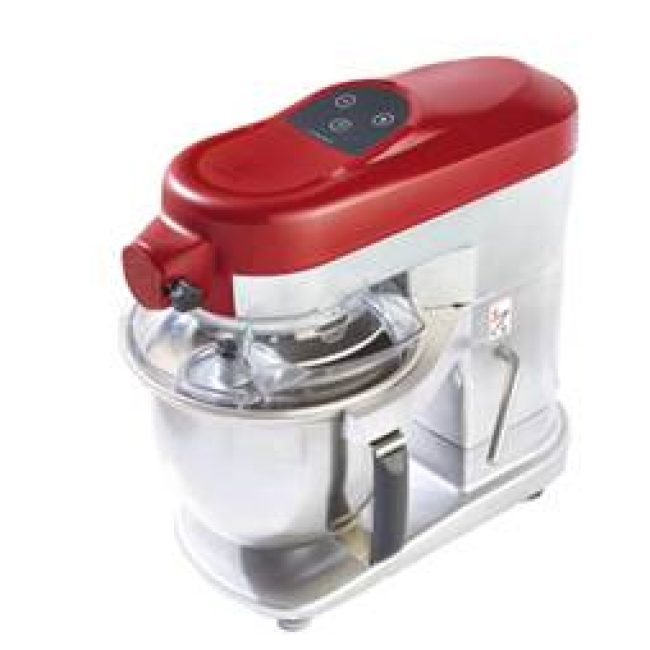

Laboratory mortar mixer

Laboratory mortar mixer 5 LDesigned for homogeneous and reproducible mixing of m...
Laboratory mortar mixer
enceinte-climatique-modulaire-1

Modular Climatic Chamber

Modular chamber designed for humidity and temperature-controlled storage Panel ...
Modular Climatic Chamber
enceinte-climatique-600-litres-3R

Climatic Chamber 600 L

The 600 L climatic chamber is designed to maintain perfectly controlled temperat...
Climatic Chamber 600 L
bac-de-conservation-des-eprouvettes-4-4-16

Storage tank for 4x4x16 cm specimens

Storage tank for specimens 4×4×16 cm – EN 196-1 Designed for controlled storage ...
Storage tank for 4x4x16 cm specimens
moule-ciment-acier-

Steel Cement Mold 4x4x16cm

3 Cells 4 x 4 x 16 cm Standard: EN 196-1 • 3 cells • Robust steel - 280 HV • We...
Steel Cement Mold 4x4x16cm
moule-cubique

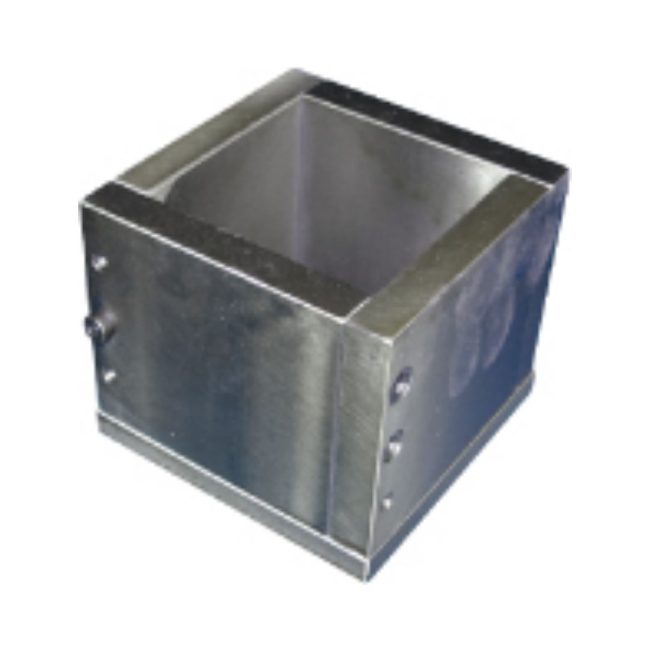

Steel Cubic Mold

5 x 5 x 5 cm & 7 x 7 x 7 cm Standard: EN 196-1 • Made of robust steel• Wei...
Steel Cubic Mold
moules_cylindriques_4x8_avec_eprouvettes_2

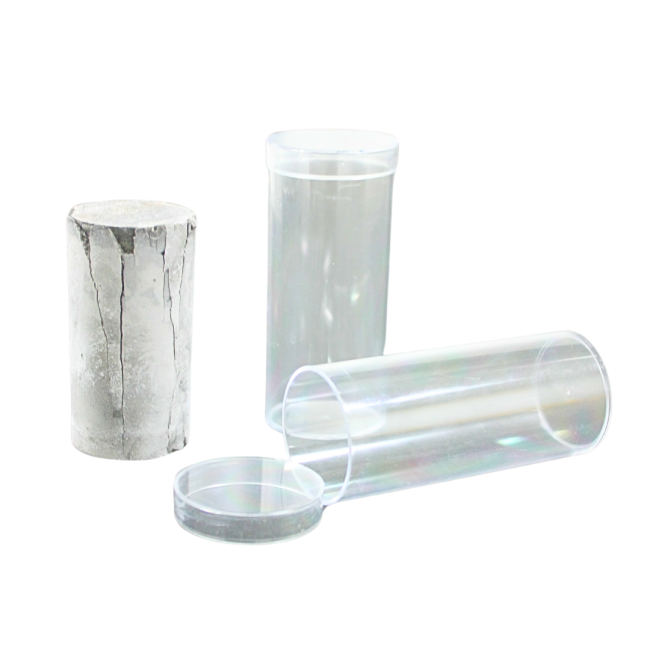

Cylindrical mold 40x98mm

Cylindrical molds for mortarStandards: NF P94-071-1 / NF P94-071-2 Internal dime...
Cylindrical mold 40x98mm
sable-normalise-2

Standard Sand

Cement Preparation Standard: EN 196-1• 1350 g bagREF: LSABLE
Standard Sand
Hauss-remplissage-4x4x16-3r

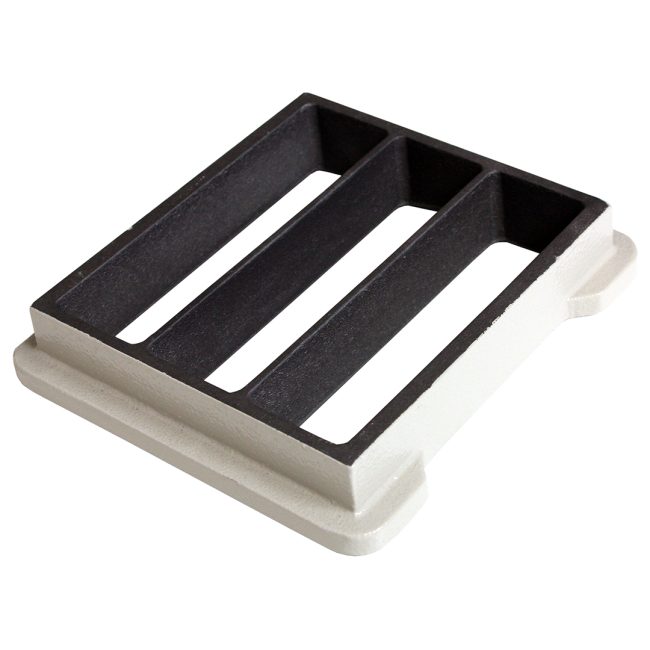

Filling Extension

Specimen Preparation Standard: EN196-1 Designed for filling 4 x 4 x 16 cm molds...
Filling Extension
Spatule

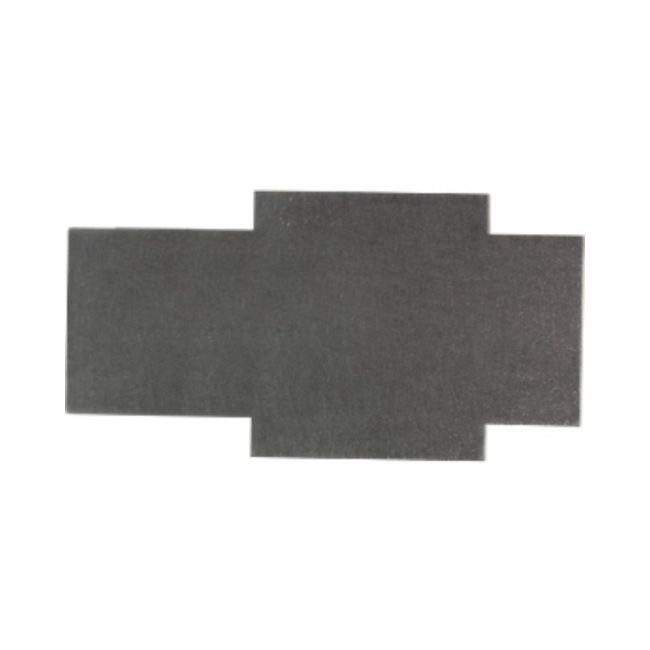

Spatula
