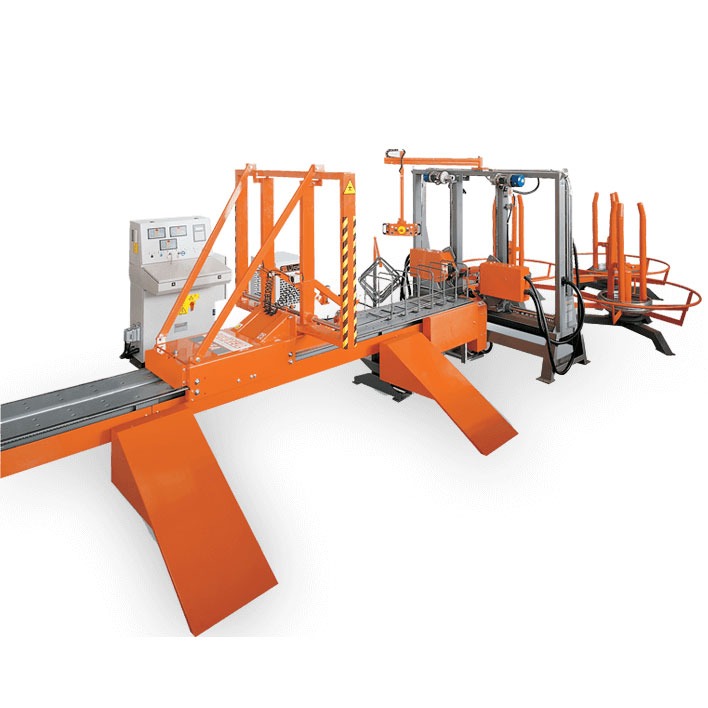

IDEA -SCHNELL assembly machine

The IDEA is a rebar assembly machine applying the exclusive 'Schnell System' (patented).

Thanks to three small-diameter longitudinal wires, positionable at any external point of the frame, the IDEA assembles an intermediate rebar cage from stirrups of any shape and dimension.

Industry type

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

IDEA -SCHNELL assembly machine

Local after-sales support

Automation tailored to your production requirements

Ergonomic workstations

Operational safety

The IDEA SCHNELL assembly machine automates the assembly of rebar cages from stirrups of various shapes and dimensions.

Description

Operation is very simple:

  • the stirrups are inserted
  • the clamps weld the stirrups to the three longitudinal wires
  • the entire rebar cage moves forward (at continuous or variable pitch)
  • All that remains is to insert the bars into this rebar cage to complete the piece

Related services

Custom engineering and project solutions

Installation and commissioning

User training

Maintenance and After-Sales Service

Demo video

Request a quote
