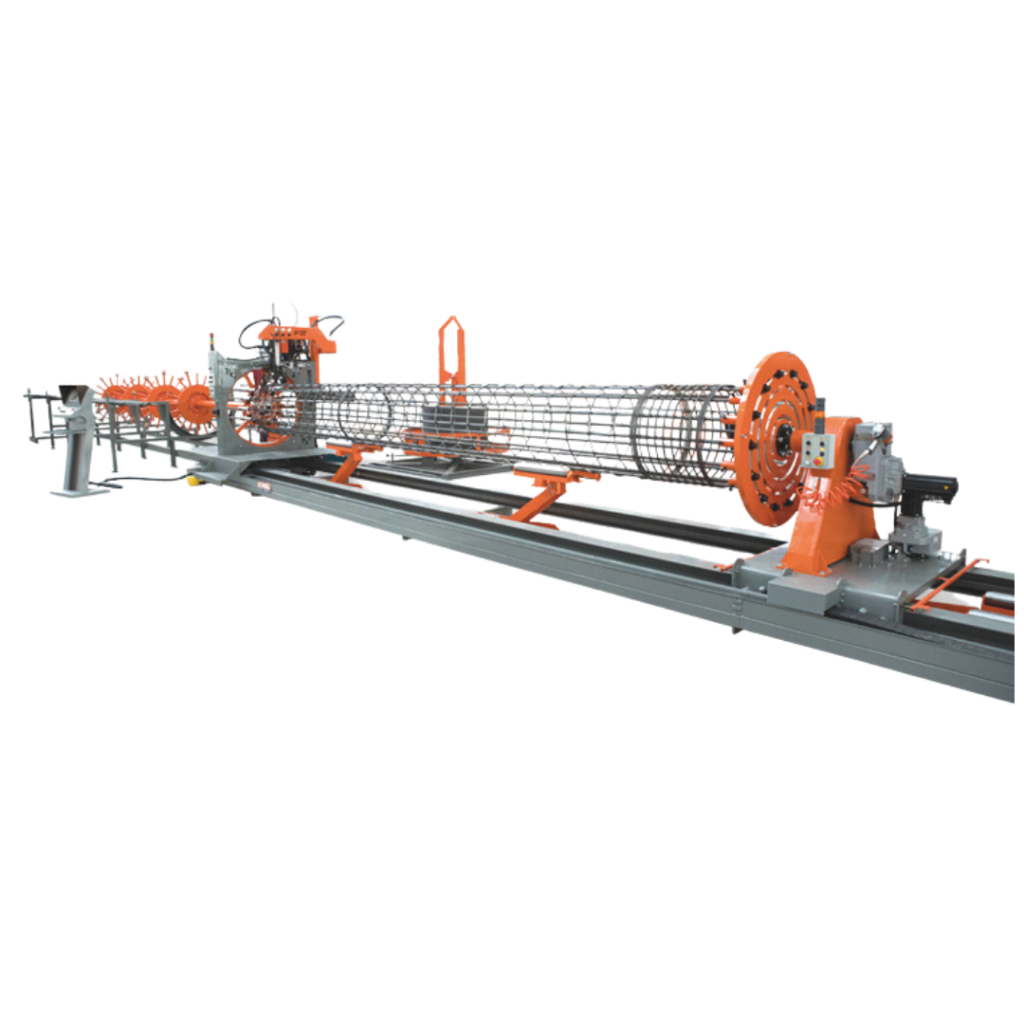

SCHNELL pile cage machines are designed for the fabrication of rebar cages for deep foundations and civil engineering structures.
Their operation enables automatic welding operations, thus limiting operator intervention and increasing productivity compared to a traditional fabrication station.
The range enables the fabrication of piles with:
- diameters ranging from 200 mm to 2 500 mm
- programmable intervals
- different configurations according to production requirements
Numerous options are available to adapt the machine to the specific requirements of each project and each workshop.
Technical specifications
| Model | Ø piles min / max | Pile length min / max | Ø rebars | Ø spirals | Max. weight | Consumption |
|---|---|---|---|---|---|---|
| CMPRO 1100.2 | 200 / 1100 mm | 4 / 24 m | 12 / 32 mm | 6 / 16 mm | 4 t | 5 kW/h |
| CMPRO 1600 | 200 / 1600 mm | 4 / 24 m | 12 / 40 mm | 6 / 16 mm | 7 t | 7 kW/h |
| CMPRO 2000 | 400 / 2000 mm | 4 / 20 m | 12 / 40 mm | 6 / 16 mm | 9 t | 7 kW/h |
| CMPRO 2500 | 800 / 2500 mm | 4 / 20 m | 12 / 40 mm | 6 / 16 mm | 13 t | 7 kW/h |
| CMPRO TELESCOPE | 200 / 1600 mm | 4 / 16 m | 12 / 40 mm | 6 / 16 mm | 7 t | 8 kW/h |
