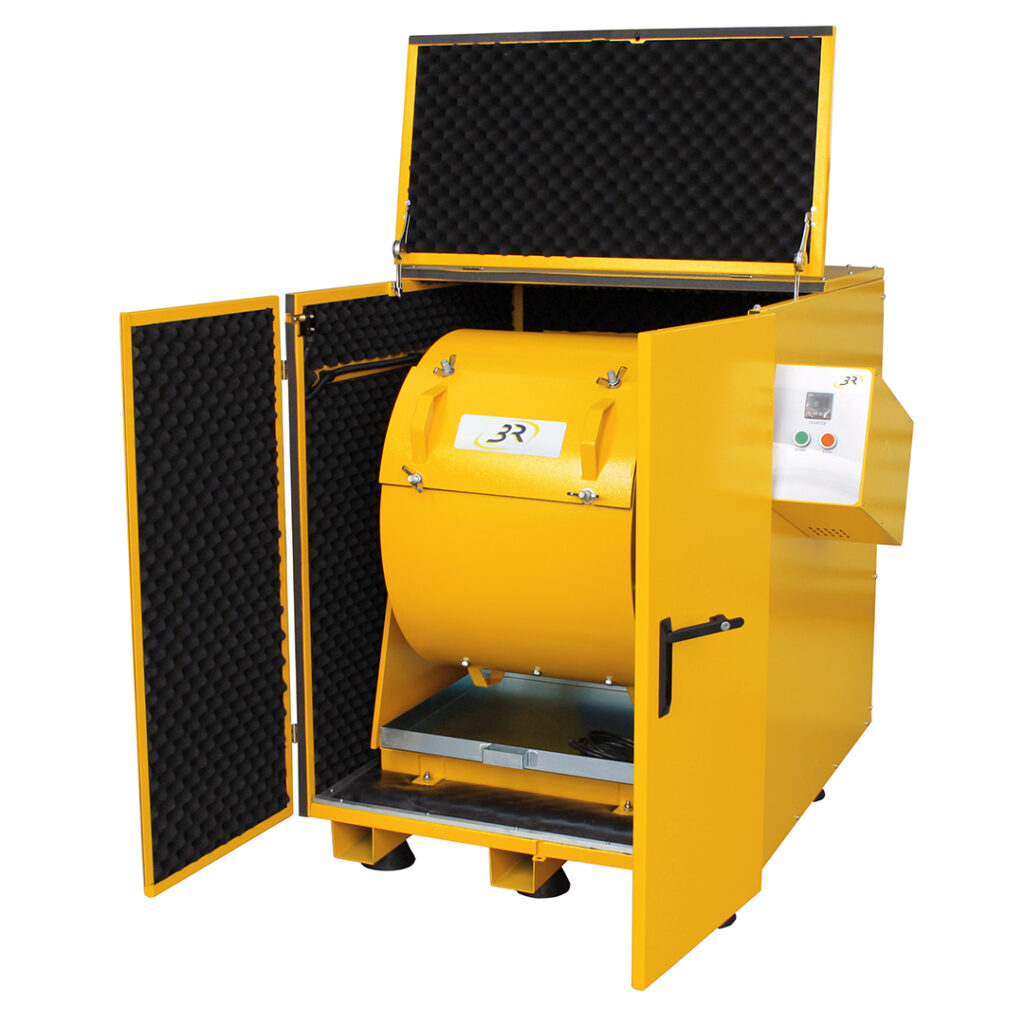

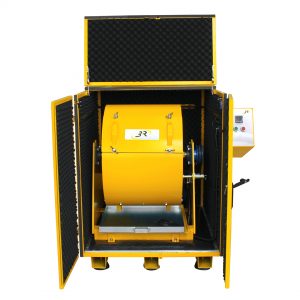

LOS ANGELES

Abrasion test: Aggregate resistance to abrasion

Permits to determine the abrasion resistance of aggregates Standard: EN 1097-2

Specifications:

  • Composed of a steel cylinder with internal dimensions: ø 711 x 508 mm
  • Rotation: 30-33 rpm
  • Automatic digital counter
  • Supplied with or without insulation box
  • Power supply: 220 V
  • External dimensions: 1000 x 900 x 1000 mm
  • Weight: 350 kg
  • Supplied with a set of 11 balls and collection tray

Standards

NF EN 1097-2

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

LOS ANGELES

Reliable and repeatable results

Suitable for standards-based testing

Local after-sales support

Description

LOS ANGELES


Abrasion test: Aggregate resistance to abrasion

Permits to determine the abrasion resistance of aggregates
Standard: EN 1097-2

Specifications:

  • Composed of a steel cylinder with internal dimensions: ø 711 x 508 mm
  • Rotation: 30-33 rpm
  • Automatic digital counter
  • Supplied with or without insulation box
  • Power supply: 220 V
  • External dimensions: 1000 x 900 x 1000 mm
  • Weight: 350 kg
  • Supplied with a set of 11 balls and collection tray

– With insulation box ……….. REF: LUTLOSANG – Without insulation box ……….. REF: LUTLOSSEUL
