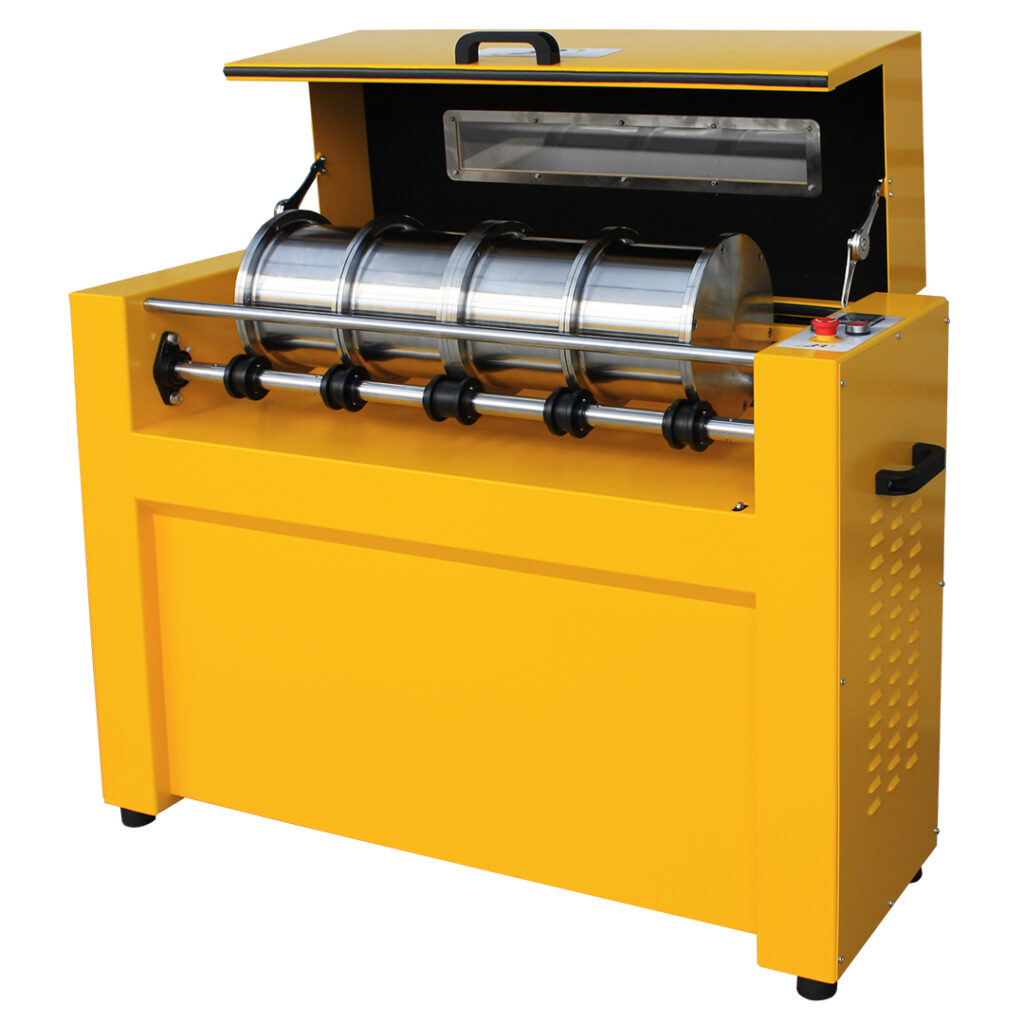

MICRO DEVAL

Abrasion Test: Aggregate Resistance

Enables the determination of aggregate resistance for sizes between 25 and 50mm Standard: EN 1097-1

Features:

  • Supplied with 4 stainless steel cylinders int. ø 200 x 154 mm
  • Constant speed rotation on ball bearings
  • Digital display
  • Electronic regulation
  • Automatic selection and stop at end of cycle
  • Rotation speed: 100 ± 5 t / min
  • Power supply: 220 V
  • Dimensions: 640 x 1200 x 350 mm
  • Weight: 150 kg
  • Supplied with 1 set of 20 kg stainless steel balls ø 10 mm

Standards

NF EN 1097-1

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

MICRO DEVAL

Reliable and repeatable results

Suitable for standards-based testing

Local after-sales support

Description

MICRO DEVAL


Abrasion Test: Aggregate Resistance

Enables the determination of aggregate resistance for sizes between 25 and 50mm
Standard: EN 1097-1

Features:

  • Supplied with 4 stainless steel cylinders int. ø 200 x 154 mm
  • Constant speed rotation on ball bearings
  • Digital display
  • Electronic regulation
  • Automatic selection and stop at end of cycle
  • Rotation speed: 100 ± 5 t / min
  • Power supply: 220 V
  • Dimensions: 640 x 1200 x 350 mm
  • Weight: 150 kg
  • Supplied with 1 set of 20 kg stainless steel balls ø 10 mm

REF: LUTMICRODEVAL
