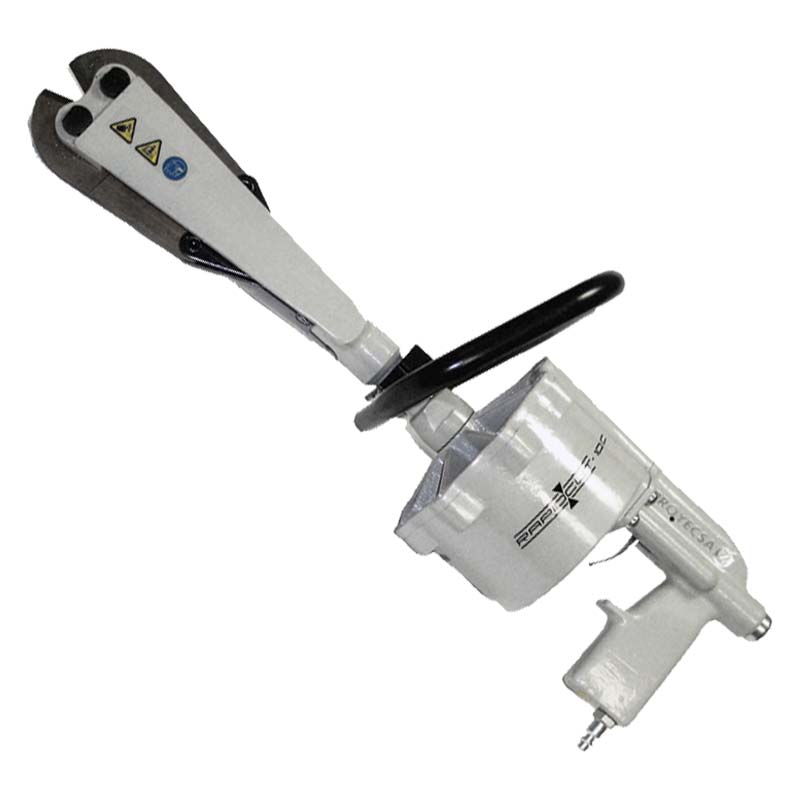

The PROYECSA CUT range is designed for cutting rebar and mesh directly on site.
Operating with a pneumatic pressure of 7 bars, these shears offer a mobile and practical solution for standard cutting operations.
Depending on the model, several arm lengths are available:
- standard version
- long version (L)
- extra-long version (XL)
The long versions enable cutting rebar or mesh on the ground without bending down.
The range covers cutting capacities from Ø6 mm to Ø12 mm.
Technical specifications
| Model | Cutting arm length | Shear ref. | Weight | Max. cut (70 kg/mm²) | Blade ref. |
|---|---|---|---|---|---|
| CUT 6 | 220 mm | RC6 | 3,2 kg | Ø 6 mm | C80LAP |
| CUT 6L | 670 mm | RC6L | 4,7 kg | Ø 6 mm | C80LAP |
| CUT 8 | 220 mm | RC8 | 5,8 kg | Ø 8 mm | M60 L |
| CUT 8L | 670 mm | RC8L | 7,2 kg | Ø 8 mm | M60 L |
| CUT 8XL | 870 mm | RC8XL | 8,7 kg | Ø 8 mm | M60 L |
| CUT 10 | 450 mm | RC10 | 8,0 kg | Ø 10 mm | 1260 TM |
| CUT 10L | 650 mm | RC10L | 8,5 kg | Ø 10 mm | 1260 TM |
| CUT 12 | 350 mm | RC12 | 10,0 kg | Ø 12 mm | 1260 TM |
| CUT 12L | 650 mm | RC12L | 12,0 kg | Ø 12 mm | 1260 TM |
