Round Punch Axes – LS Pumps
| Ref | Description |
| 50-028/22 | Tensile axis ø 9,5mm (small axis to be screwed onto the reducing adapter sleeve {50-028/12}) for standard round punches from ø 15.2mm to ø 33mm Length 73mm • Pre-drilling at ø 10.5mm • Thread: 3/8″ – 24 UNF |
| 50-028/36 | Tensile axis ø 19mm (large axis to be screwed directly onto pump outlet LS6 or 8) for standard round punches from ø 35mm to ø 120mm Length 108mm • Pre-drilling at ø 20mm • Thread: 3/4″ – 16 UNF |
| 62-401/01 | Tensile axis ø 9,5mm (small axis to be screwed onto the reducing adapter sleeve {50-028/12}) for HD STAINLESS STEEL round punches from ø 16.2mm to ø 18.6mm Length 90mm • Pre-drilling at ø 10.5mm • Thread: 3/8″ – 24 UNF |
| 62-420/03 | Tensile axis ø 13mm (medium axis to be screwed directly onto HD pump outlet) for HD STAINLESS STEEL round punches from ø 20.4mm to ø 32.5mm Length 121mm • Pre-drilling at ø 14mm • Thread: 1/2″ – 20 UNF |
| 62-401/02 | Tensile axis ø 19mm (large axis to be screwed directly onto HD pump outlet) for HD STAINLESS STEEL round punches from ø 37.0mm to ø 68.0mm Length 125mm • Pre-drilling at ø 20mm • Thread: 3/4″ – 16 UNF |
| 50-028/88 | Tensile axis for rangeX New |
Sleeve and Spacer
| Ref | Description |
| 50-028/12 |
Reducing adapter sleeve for pump LS6 or 8 (to be screwed on one side onto LS pump outlet 6 or 8 {ø 19mm} and on the other side to be screwed with the tensile axis ø 9.5mm {50-028/22}) |
| 50-028/24 |
Positioning spacer for pumps LS6 or LS8 (to be placed as a stop on LS pump outlet 6 or 8, for positioning the punches and centering the punches from ø 15.2mm to 16.9mm) |
Manual Round Punch Axes
| Ref | Description |
| 62-138 |
Tensile axis ø 9.5mm with wrench for manual use with ball bearing (3/8” 24 UNF wrench size 17) for standard round punches from ø 15.2mm to ø 33mm |

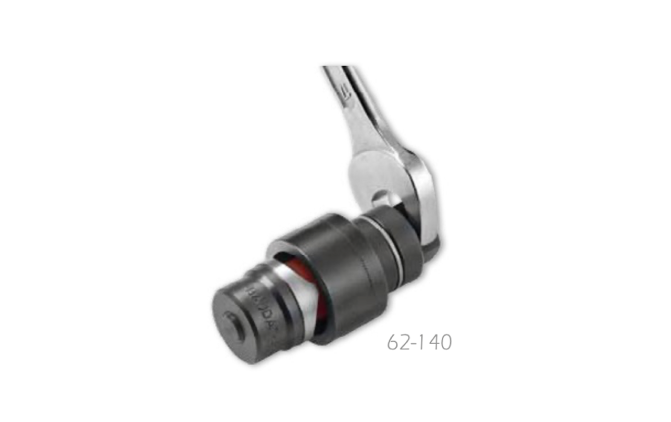

| 62-140 |
Tensile axis ø 19mm with wrench for manual use with ball bearing (3/4” 16 UNF wrench size 27) for standard round punches from ø 35mm to ø 120mm |
Cutting Paste (New!)
| Ref | Description |
| 00-169/05 |
High-Performance Cutting Paste increases the service life of Punches. |
