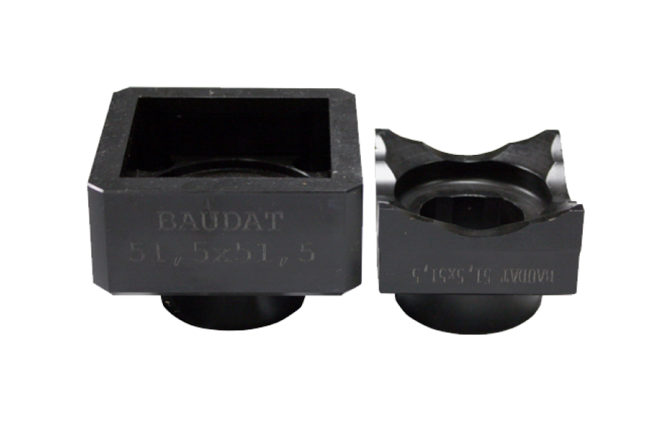

Shafts & Nuts for Square Punches – LS Pumps Square– LS Pumps
| Ref | Designation |
| 50-028/50 |
Tensile shaft 50 ø 15mm (compatible with nut 42 {50-028/42}) for standard square punches |
| 50-028/42 |
Nut 42 (compatible with shaft 50 {50-028/50}) for standard square punches |
| 62-401/03 |
HD tensile shaft 03 ø 22mm (compatible with nut 71 {50- 028/71}) for standard square punches & HD STAINLESS STEEL square punches |
| 50-028/71 |
Nut 71 (compatible with shaft 03 {62-401/03}) for standard square punches & HD STAINLESS STEEL |
| 50-028/41 |
Tensile shaft 41 ø 28mm (compatible with nut 43 {50-028/43}) for standard square punches |
| 50-028/43 |
Nut 43 (compatible with shaft 41 {50-028/41}) for standard square punches |
Shafts & Nuts for Rectangular Punches – LS Pumps Rectangular– LS Pumps
| Ref | Designation |
| 50-028/40 |
Tensile shaft 40 ø 16mm (compatible with nut 42 {50-028/42} and 44 {50-028/44}) for standard rectangular punches Length 95mm • Pre-drilling at ø 17mm • Thread: M12 x 1.5 |
| 50-028/50 |
Tensile shaft 50 ø 15 mm (compatible with nut 42 {50-028/42} and 44 {50-028/44}) for standard rectangular punches Length 85mm • Pre-drilling at ø 16mm • Thread: M12 x 1.5 |
| 50-028/42 |
Nut 42 (compatible with shaft 40 {50-028/40} and shaft 50 {50-028/50}) for standard rectangular punches |
| 50-028/44 |
Nut 44 (compatible with shaft 40 {50-028/40} and shaft 50 {50-028/50}) for standard rectangular punches |
| 50-028/41 |
Tensile shaft 41 ø 28mm (compatible with nut 43 {50-028/43}) for standard rectangular punches |
| 50-028/43 |
Nut 43 (compatible with shaft 41 {50-028/41}) for standard rectangular punches – see Table Page 20 |
