Square Punches

Square Punches from 17 x 17 mm to 110 x 110 mm

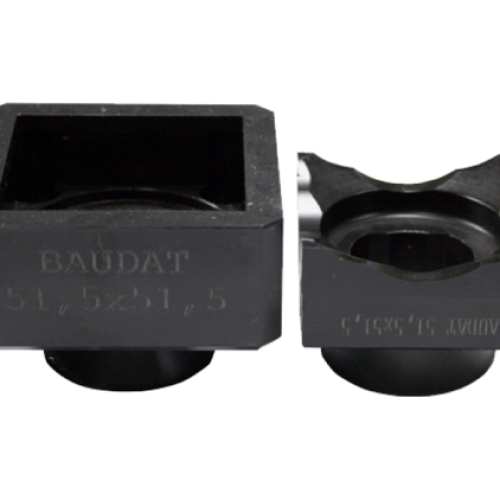

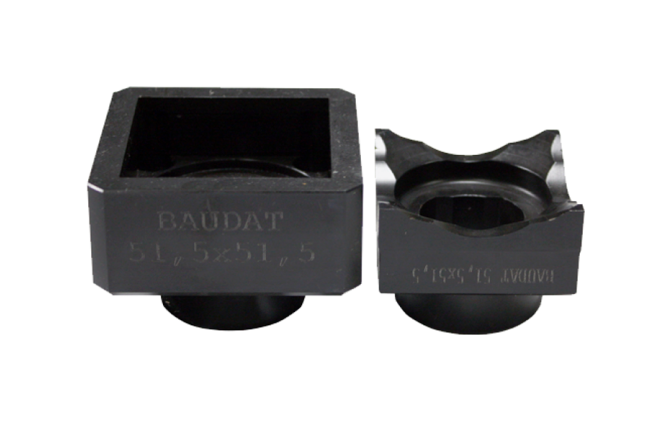

A complete square punch consists of: a PUNCH + a DIE

All to be mounted on 2 accessories: a TENSILE AXIS + a NUT

Industry type

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Square Punches

Robust equipment

Time savings

Local after-sales support

Description

⌀ mm Punch Die Axis of Ref Nut of Ref
17 x 17 62-115/0170 62-116/0170 17 50-028/66 17 50-028/70
20 x 20 62-115/0200 62-116/0200 50 50-028/50 42 50-028/42
21 x 21 62-115/0210 62-116/0210 50 50-028/50 42 50-028/42
22 x 22 62-115/0220 62-116/0220 50 50-028/50 42 50-028/42
26 x 26 62-115/0260 62-116/0260 50 50-028/50 42 50-028/42
31.2 x 31.2 62-115/0312 62-116/0312 50 50-028/50 42 50-028/42
32.5 x 32.5 62-115/0325 62-116/0325 HD 03 62-401/03 71 50-028/71
34 x 34 62-115/0340 62-116/0340 HD 03 62-401/03 71 50-028/71
37 x 37 62-115/0370 62-116/0370 HD 03 62-401/03 71 50-028/71
40 x 40 62-115/0400 62-116/0400 41 50-028/41 43 50-028/43
44.5 x 44.5 62-115/0400 62-116/0400 41 50-028/41 43 50-028/43
45 x 45 62-115/0450 62-116/0450 41 50-028/41 43 50-028/43
46 x 46 62-115/0460 62-116/0460 41 50-028/41 43 50-028/43
48 x 48 62-115/0480 62-116/0480 41 50-028/41 43 50-028/43
51.5 x 51.5 62-115/0515 62-116/0515 41 50-028/41 43 50-028/43
52.2 x 52.2 62-115/0522 62-116/0522 41 50-028/41 43 50-028/43
52.5 x 52.5 62-115/0525 62-116/0525 41 50-028/41 43 50-028/43
66 x 66 62-115/0660 62-116/0660 41 50-028/41 43 50-028/43
68 x 68 62-115/0680 62-116/0680 41 50-028/41 43 50-028/43
72 x 72 62-115/0720 62-116/0720 41 50-028/41 43 50-028/43
92 x 92 62-115/0920 62-116/0920 41 50-028/41 43 50-028/43
96 x 96 62-115/0960 62-116/0960 41 50-028/41 43 50-028/43
110 x 110 62-115/1100 62-116/1100 41 50-028/41 43 50-028/43
