B-BOX data acquisition unit

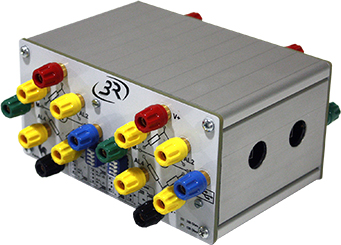

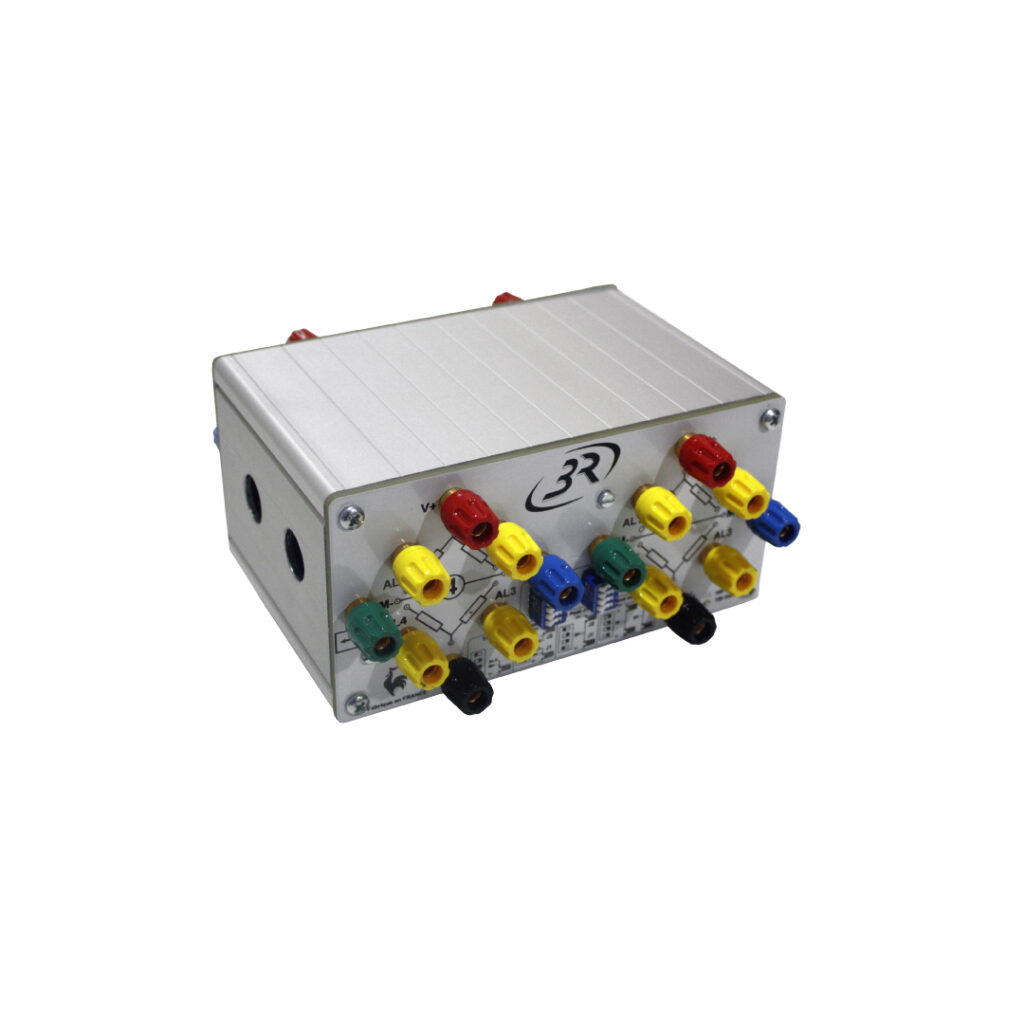

The B-Box is a 4-channel data acquisition unit for 120Ω or 350Ω strain gauges. It enables the conditioning of strain gauge signals and consequently signals from strain gauge sensors: load cells and extensometers.

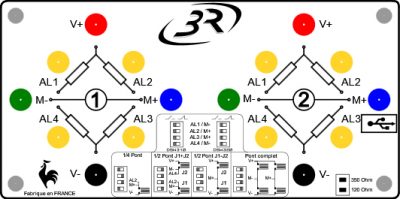

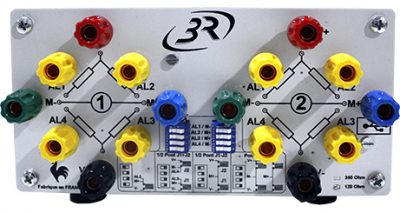

The instrumented devices are connected to the B-Box data acquisition unit via terminals with brass contacts and gold plating. Depending on the instrumentation configuration, the unit enables Wheatstone bridge completion.
Each channel can thus be used in quarter, half or full bridge configuration.
Used standalone or on a loading device such as Bed 100 or RP25 ATF, this “plug and play” unit connects easily to a PC via two USB cables (one per two channels).
The supplied software enables instant reading and recording of measured values in the selected units.
