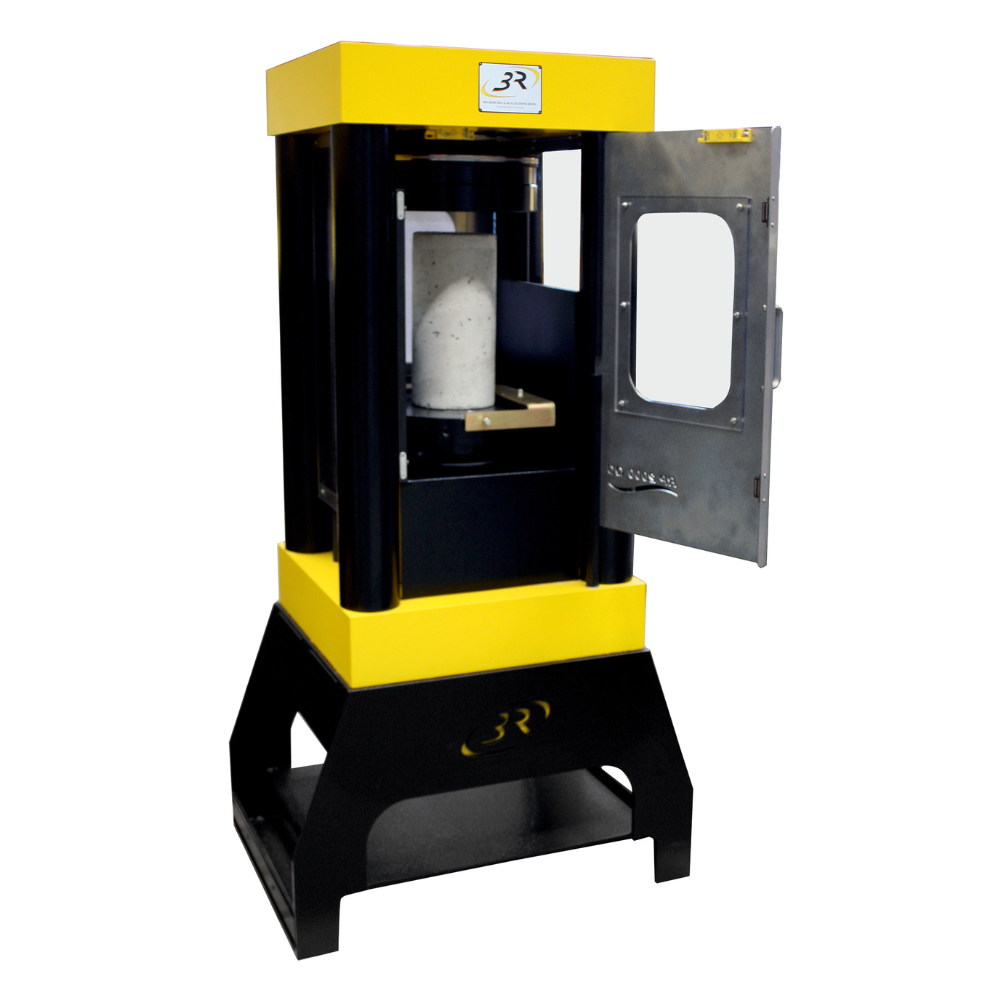

2000- 3000-5000 kN Four-Column Compression Testing Machine

Automatic testing machine for compression tests on Cubes & Cylinders

Features:

Class 1
High-stiffness frame controlled with footmeter
Designed in accordance with European standards
Hardened steel platens ø 300 mm - Hardness ≥ 600 HV30
Test chamber height: 340 mm - 170 mm with spacers
Protection grids with electrical safety detector
Foot designed for easy handling with forklift

Testing force

2000, 3000, 5000 kN

Test type

Compression

Industry type

Civil engineering testing laboratories

Standards

EN 12390-4

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

2000- 3000-5000 kN Four-Column Compression Testing Machine

Robust equipment

Reliable and repeatable testing

Suitable for standards-based testing

Local after-sales support

Operational safety

The four-column compression machine guarantees reliable tests at high loads thanks to a rigid structure suited to intensive testing.

Description

2000-3000-5000 kN Four-Column Compression Testing Machine

Automatic testing machine for compression tests on Cubes & Cylinders

The frame QC (Quatre Colonnes) is a high-strength compression frame, designed to perform tests on cubic specimens (10×10 – 15×15 – 20×20) or cylindrical specimens (11×22 – 15×30 – 16×32).Standard: EN 12390-4Fully machined to guarantee perfect alignment of the thrust center, its generously dimensioned 4-column structure offers low deformation under load, ensuring long service life for the frame.

Ergonomics are also carefully considered, with a working height of 1.050 mm, and perforated feet for easy and safe handling.

Features:

Class 1
High-stiffness frame controlled with footmeter
Designed in accordance with European standards
Hardened steel platens ø 300 mm – Hardness ≥ 600 HV30
Test chamber height: 340 mm – 170 mm with spacers
Protection grids with electrical safety detector
Foot designed for easy handling with forklift
