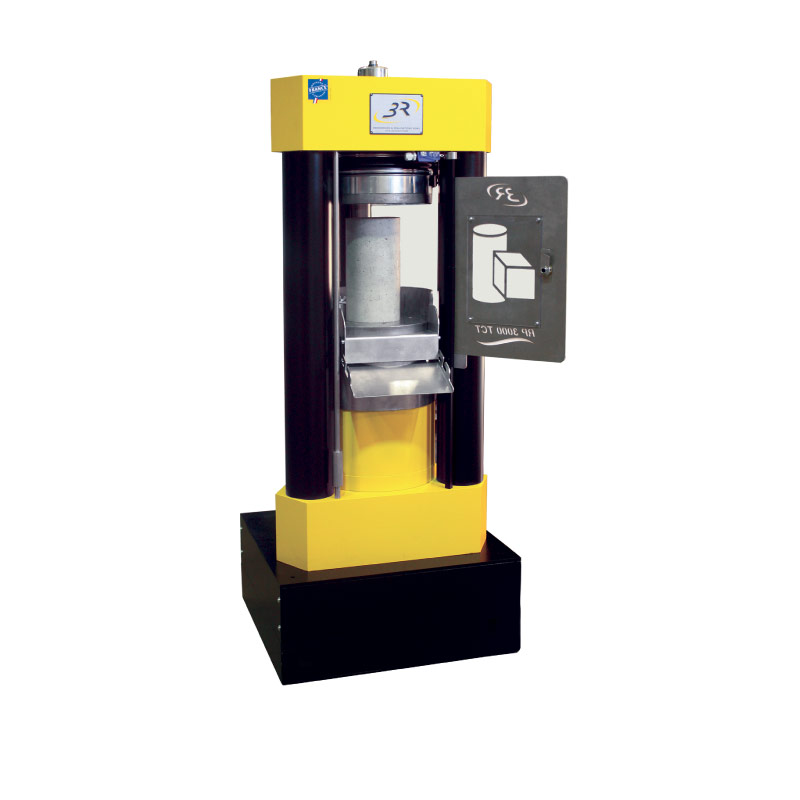

The frame TC (Three Columns), with its perfect geometric shape (isostatic), guarantees ideally centered load application on the specimen axis (perfect alignment of the cylinder axis with the ball joint axis) in accordance with standard EN 12 390-4.
Standard: EN 12390-4
The absence of transverse load, due to the centering of the thrust axis as well as the extreme stability of this frame, ensure the excellent accuracy of this machine.
Finally, its exceptional stiffness (deformation less than 0,75 mm at 3000 kN) and its very long guided cylinder, make this frame the ideal machine for high-performance concrete testing.
Ergonomics:
The space between columns guarantees excellent accessibility to the specimen. The ergonomic working height (980 mm) allows the machine to remain on the floor, without the need to build a concrete base. The operator thus works in postures limiting back pain.
Features:
- High stiffness frame Class 0,5
- Designed in accordance with European standards
- Fully machined frame, controlled with footmeter
- 3 columns: isostatic frame for perfectly balanced loading
- Oil bath ball joint in treated steel coated with Teflon for better load distribution
- Treated steel platens – Hardness > 58 HRC
- Test chamber height: 340 mm
- Cylinder: Low friction composite seal and bronze guide
- Piston anti-drift device
- Mechanical centering device for quick and accurate specimen positioning
- Stainless steel protective grids with electrical safety detector
- Base designed for easy handling with forklift
