Maximum grinding capacity: approximately 50 specimens per day (8 hours)
Characteristics:
- Extremely rigid mechanically welded steel frame, re-machined after welding to guarantee perfect orthogonality of elements
- Designed for simultaneous grinding of 3 specimens at a time (one face)
- Automatic grinding wheel feed enabling an automatic cycle over a programmable number of passes and a fixed pass depth (0,4mm per pass)
- Capacities: 3 x 16×32 / 3 x 15×30 / 3 x 11×22 /
- Quick specimen clamping system (5 seconds per specimen)
- Diamond grinding wheel system diameter 220 mm supplied as standard
- Grinding wheel rotation speed: 3.000 trpm

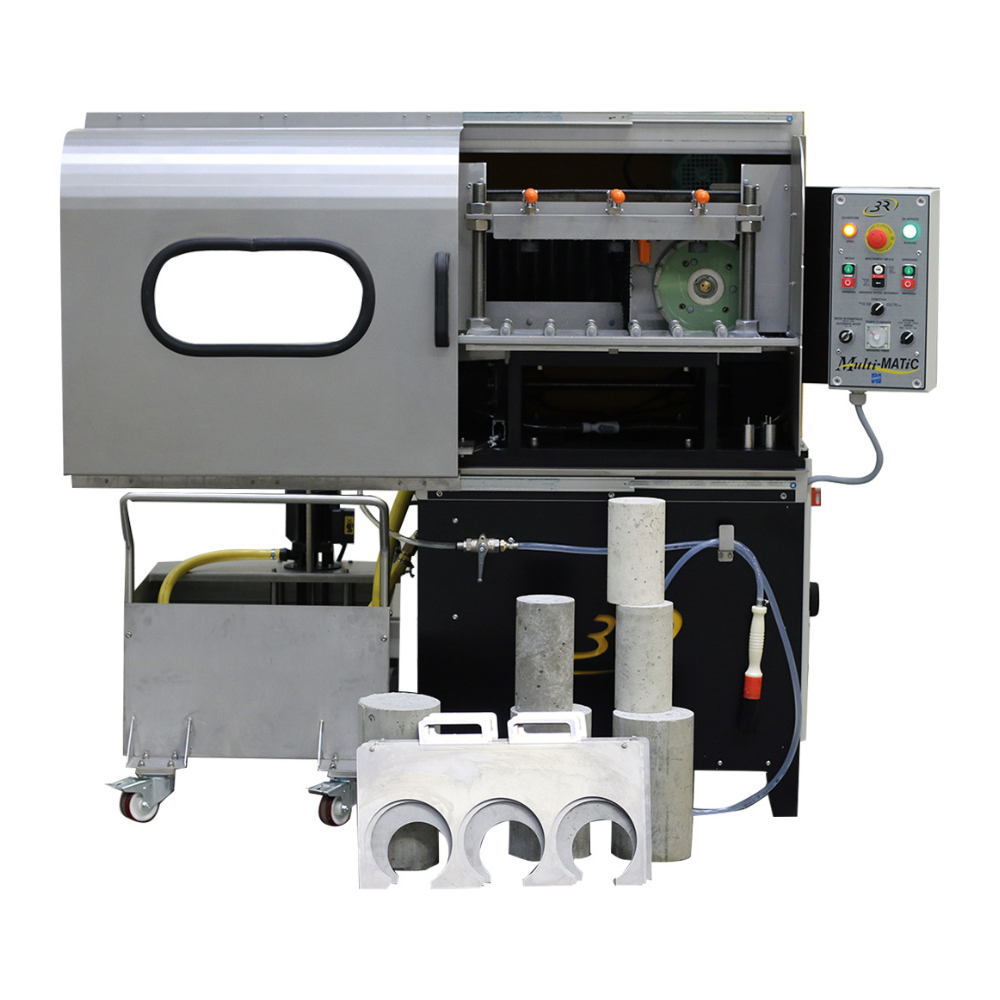

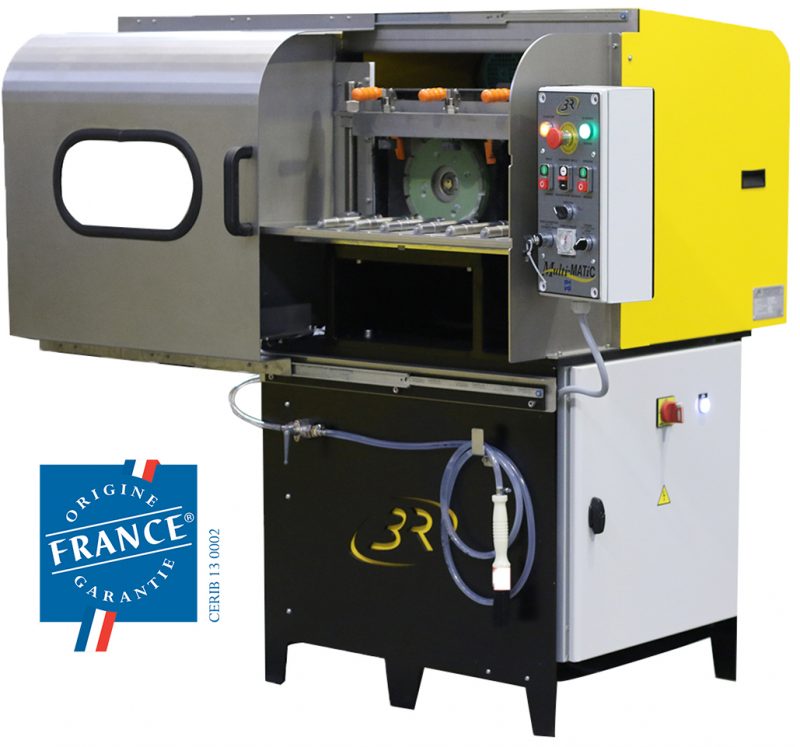

Multi-MATIC 3R concrete grinding machine for specimens - 3 speeds, slow, normal, fast. Max speed 600 mm/min. Grinding wheel translation time (L/R, R/L) approximately 1min
- Wet zone containment cabinet entirely in stainless steel
- Rigid sliding door with polycarbonate window and integrated electrical safety compliant with CE safety standards
- Continuous water spray system on the grinding wheel diamonds
- Closed-loop water circuit with settling system (possibility of open-loop operation)
- Special spray pump for loaded water
- Removable stainless steel settling tank on wheels with 100 liter capacity
- Installed power 3 kW
- Power supply: 3 x 400 V + T
- Dimensions: L 1086 (1.600 door open) x D 1020 x H 1600 mm
- Net weight: approximately 600 kg

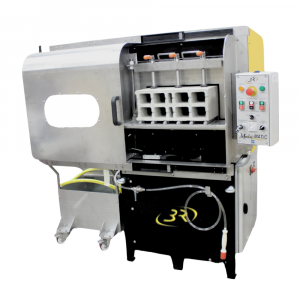

The Multi-MATIC DUO for your cylindrical specimens or blocks
The only machine capable of grinding simultaneously
- 1 block concrete, brick or concrete block up to 250 x 250 x 500 mm
- or
- 3 simultaneous cylindrical specimens (one face): Ø 16×32 Ø 15×30 Ø 11×22 or 3 cores Ø 40 to 100 mm
