Patent No. 05.03953 of 20/04/2005
Features:

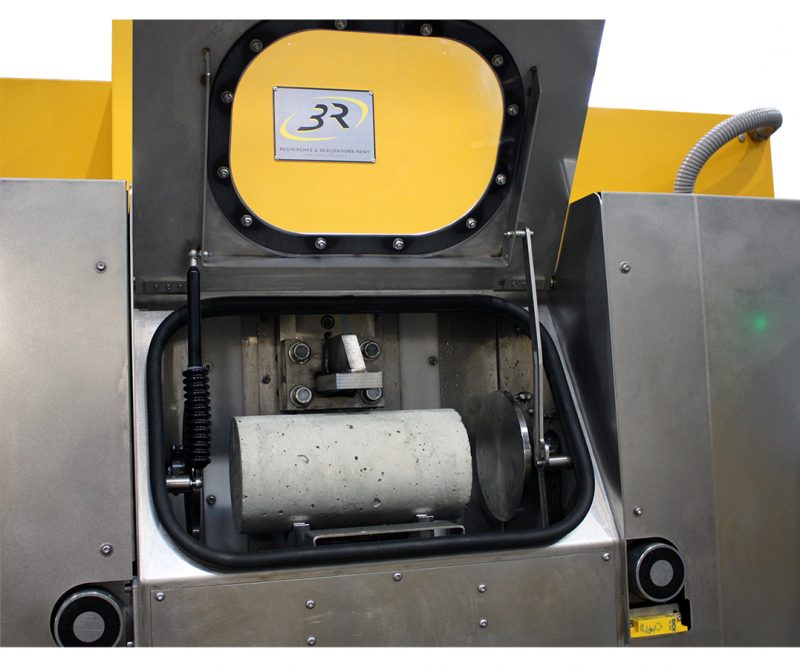

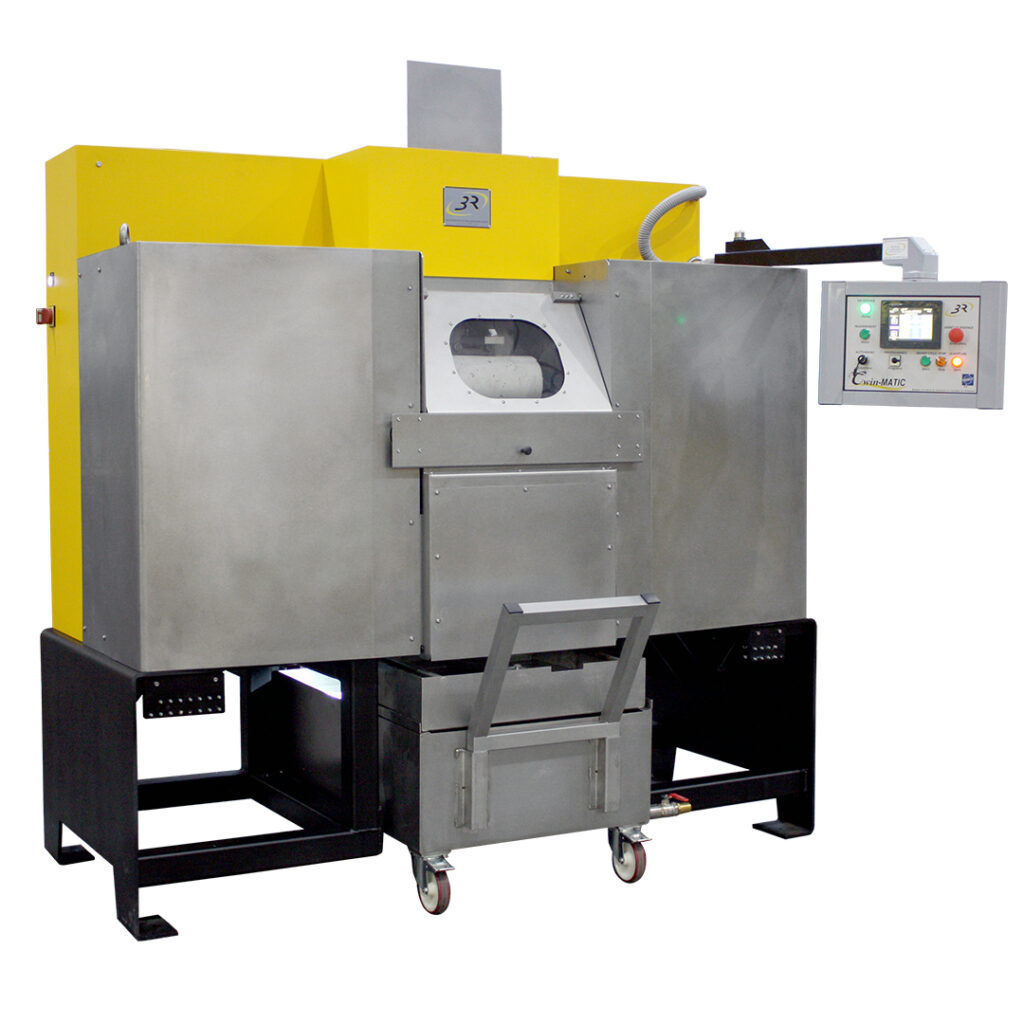

twin-MATIC 3R concrete grinding machine for specimens
- lapping machine for grinding concrete cylinders
- Two diamond wheels for SIMULTANEOUS grinding of the 2 faces of the specimen
- Continuous water supply system on the diamonds of both wheels
- Closed-loop water circuit

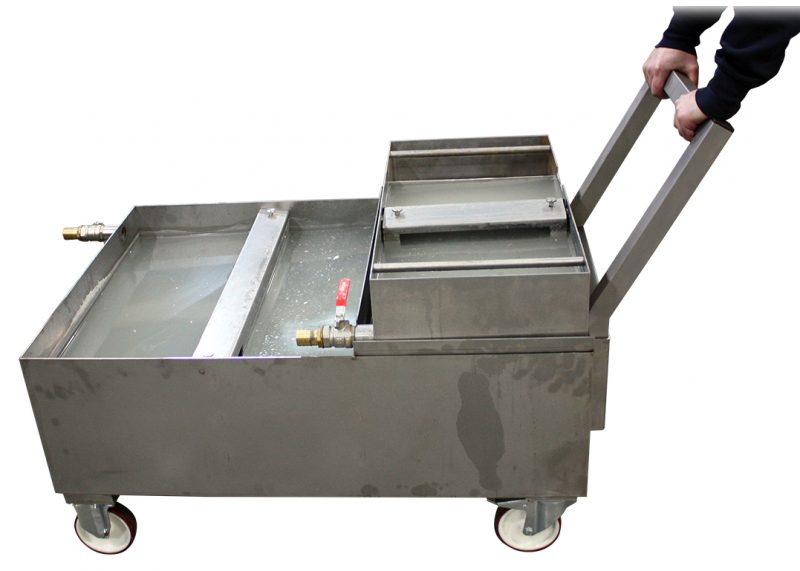

- Removable stainless steel settling tank for the twin matic grinding machine with a capacity of at least 100 liters
- Easy and quick locking by hydraulic system
- Vertical movement of the specimen between the rotating wheels, machining possible in both downward and upward directions (patented system)

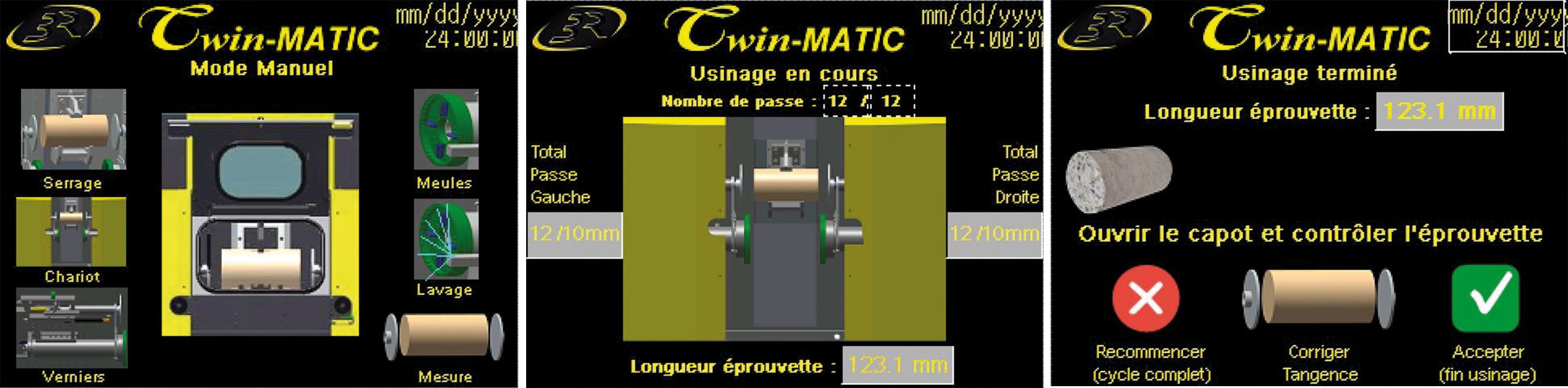

- Automatic wheel feed enabling an automatic cycle over a preprogrammed number of passes and depth of cut
- Fully sealed protective cover
- Net weight of twin matic specimen grinding machine: approximately 1.900 kg
- Patented machine (Patent No. 05.03953 of 20/04/2005)
