Technical specifications of the Multimatic Duo
Grinding capacities:

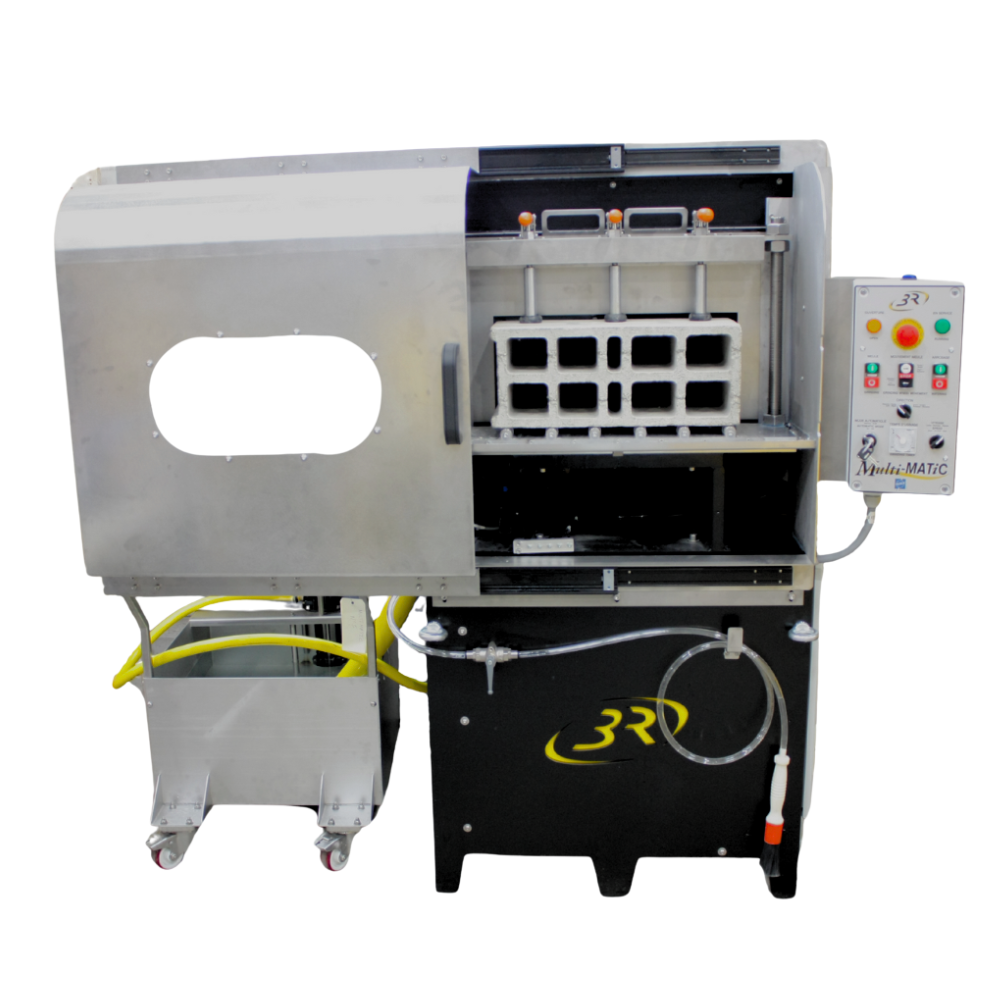

- 1 block concrete, brick or concrete block up to 250 x 250 x 500 mm
or

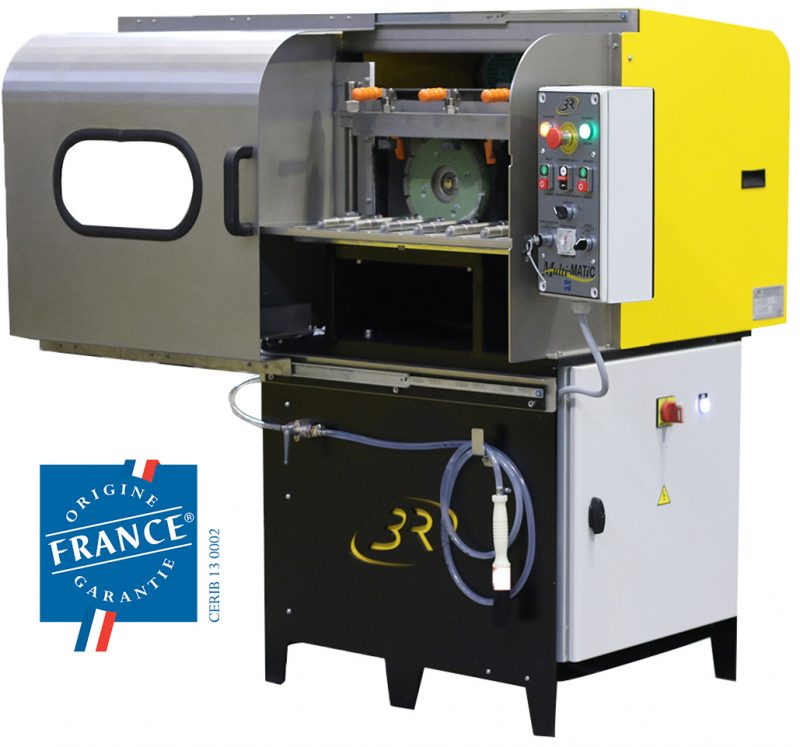

grinding machine for cylindrical specimens or blocks
- 3 simultaneous cylindrical specimens (one face): Ø 16×32 Ø 15×30 Ø 11×22 or cores Ø 40 to 100 mm
Technical specifications:
- Extremely rigid mechanically welded steel frame, re-machined after welding to guarantee perfect orthogonality of elements
- Automatic wheel feed enabling an automatic cycle over a programmable number of passes and a fixed pass depth (0,4mm per pass)
- Quick specimen clamping system (5 seconds per specimen)
- Diamond wheel grinding system ø 220 mm or ø 330 supplied as standard
- Wheel rotation speed: 3.000 trpm
- 3 speeds, slow, normal, fast. Max speed 600 mm/min. Wheel translation time (L/R, R/L) approximately 1min
- Wet zone containment cabinet entirely in stainless steel
- Rigid sliding door with polycarbonate window and interlocked electrical safety compliant with CE safety standards
- Continuous water spray system on the wheel diamonds
- Closed-loop water circuit with settling system (open circuit operation possible)
- Special spray pump for water with suspended solids
- Removable stainless steel settling tank on wheels with 100 liters capacity
Power supply and dimensions:
- Installed power 3 kW
- Power supply: 3 x 400 V + T
- Dimensions: L 1086 (1.600 door open) x D 1020 x H 1600 mm
- Net weight: approximately 600 kg
