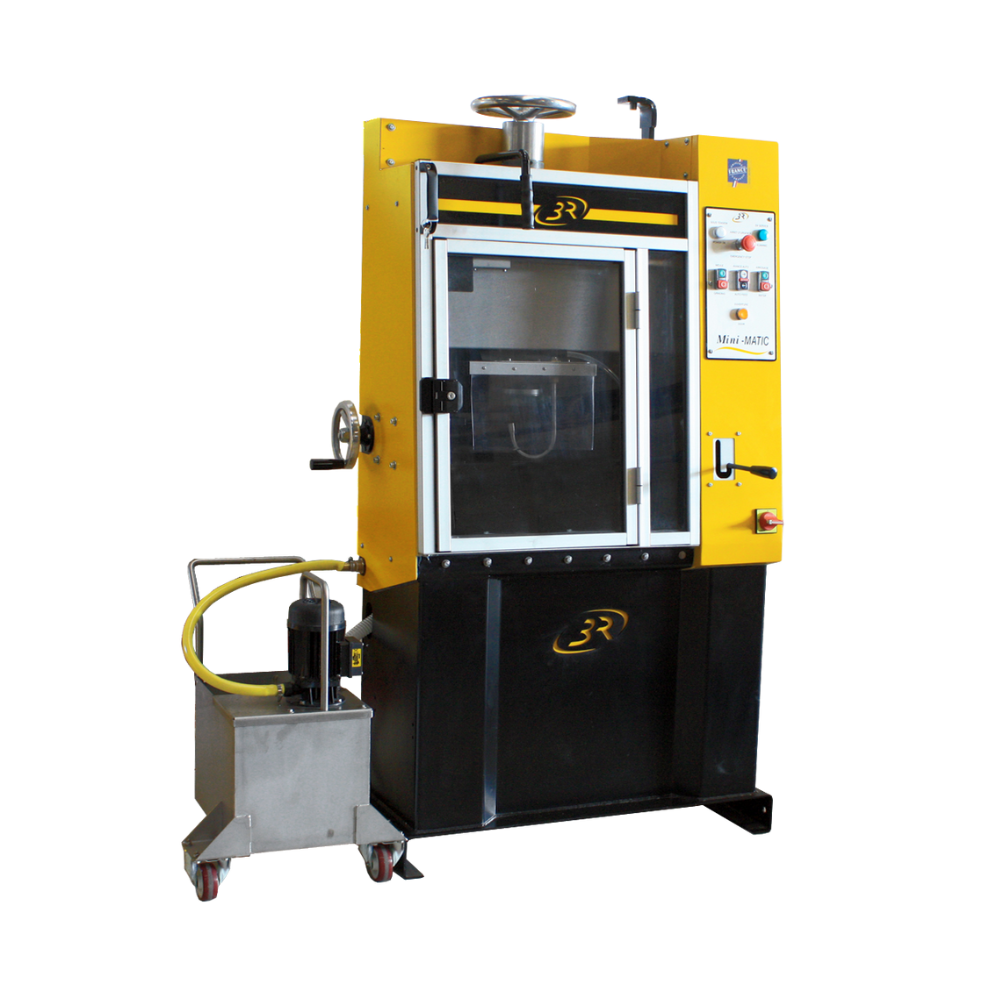

Semi-automatic specimen grinding machine model Mini-MATIC

Compact grinding machine designed for precise preparation of cylindrical concrete specimens.

Equipped with a diamond grinding wheel with continuous water cooling, a closed-loop water circuit and a quick-clamping system, it enables grinding of 16x32, 15x30 and 11x22 cm formats.

Its robust and watertight design ensures reliable, safe operation suited to testing laboratories.

Standards

EN 12390-1
NF EN 12390-1

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Semi-automatic specimen grinding machine model Mini-MATIC

Made in France

No sulphur capping required

The Mini-MATIC grinding machine enables semi-automatic grinding of a cylindrical specimen while guaranteeing flatness and geometry of the specimen in compliance with standard NF EN 12390 and eliminating the use of sulfur.

Description

Features:

  • Grinding machine for cylinder grinding
  • Diamond grinding wheel system
  • Continuous water cooling system on the grinding wheel diamonds
  • Closed-loop water circuit
  • Quick-locking system for specimens enabling clamping of 16×32, 15×30 and 11×22 specimens
  • Removable stainless steel settling tank on wheels with 25 liter capacity
  • Control box with emergency stop
  • Manual feed
  • Depth of cut 0 to 0.5mm
  • Compact monobloc watertight steel sheet frame with protective casing
  • Fully watertight aluminum and polycarbonate housing
  • Dimensions: L 1100 mm x D 550 mm x H 1875 mm
  • Net weight: approximately 450 kg

Options:

  • Grinding of 40×40 to 80×160 cm cores with adapted locking system
  • Open water circuit
  • Automatic feed

Related services

Installation and commissioning

User training

Maintenance and After-Sales Service

Demo video
