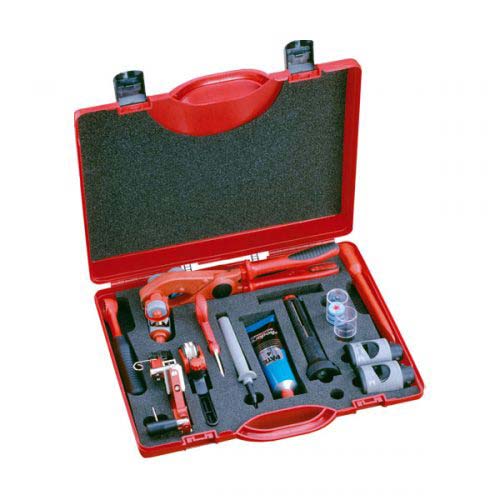

The complete electrician’s kit SET 5 is suitable for working and preparing swelling tape cables: stripping outer sheaths, the semi-conductive layer and removing primary insulation.
Optimal equipment for performing the entire stripping procedure on various cables, particularly polylam screens (without touching the semi-conductive layer underneath)The kit contains :
- AIS cable stripper (Universal cable stripper for insulating outer sheaths from ø 16 to 54mm – High-density polyethylene cables from 16 to 54mm [ø 16- 54mm] with insulation thickness from 0.5 to 5mm)
- Feed lever
- 2 blade fixing screws and set of replacement blades with washers
- AMS universal cable stripper (Universal stripper for outer insulating layer of MV & LV cables from ø 25mm – PVC, rubber cables with diameter greater than 25mm [ø > 25mm] with insulation thickness from 0 to 5mm)
- FBS cable stripper (cable stripper for vulcanized semi-conductive screen Vulcanized, extruded, bonded semi-conductive layer for diameter 10 to 52mm [ø 10 – 52 mm] with insulating layer thickness from 0 to 1.5mm)
- IMS cable stripper (cable stripper for all types of primary insulating sheaths from 25 to 240 mm2 – Thickness according to pre-adjusted inserts)
- Special insert for IMS 70mm2
- Special insert for IMS 185mm2
- 3 replacement blades for IMS inserts
- Sheath spreader
- Silicone grease tube
- Electrician’s scissors
- Stripping knives with protective flap
- 2.5mm Allen key
- Rigid plastic carrying case
Dimensions: 380 x 275 x 80 mm Weight: 3.200kg
The complete electrician’s kit SET 5 is available in a “light” version with AIS + Feed lever + 2 fixing screws + 1 special insert 185mm2 + 1 allen key 2.5mm: all in a rigid plastic case Dimensions: 380 x 275 x 80 mm Weight: 1.900kg
