Crimping head alone PP60-1 (max 240mm²)

intercable CRIMPING head alone to be combined model PP60-1. Suitable for crimping copper and aluminum cables up to max section 240mm2 => Compression force 60kN

Industry type

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Crimping head alone PP60-1 (max 240mm²)

Robust equipment

Local after-sales support

Operational safety

Description

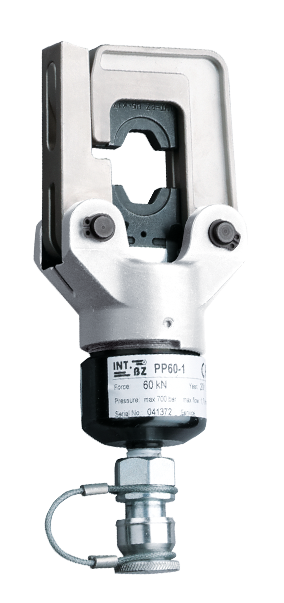

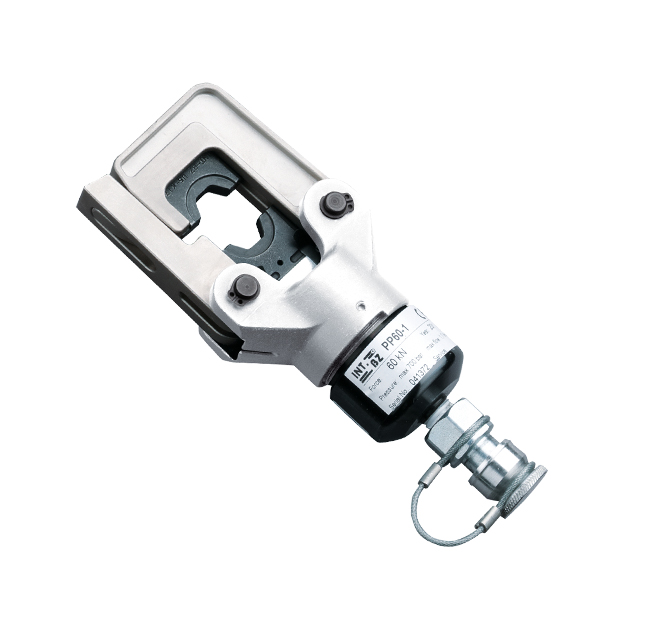

Crimping head PP60-1 (max 240mm²)

Suitable for crimping copper and aluminum cables from 6mm² up to max section 240mm².
=> Compression force 60kN

  • To be connected with a 700 bars pump
  • Robust and compact structure
  • Quick-closing crimping head with carabiner
  • Male quick hydraulic connection with automatic locking system and dust cap
  • max. Stroke 17 mm

Dimensions: 74 x 198 x 54 mm Weight: 1,6 kg Set :

  • Test report
  • Crimping head PP60-1
  • Instructions

=> Supplied in rigid transport case with space for 18 mdies (case dimensions 320x260x75mm)

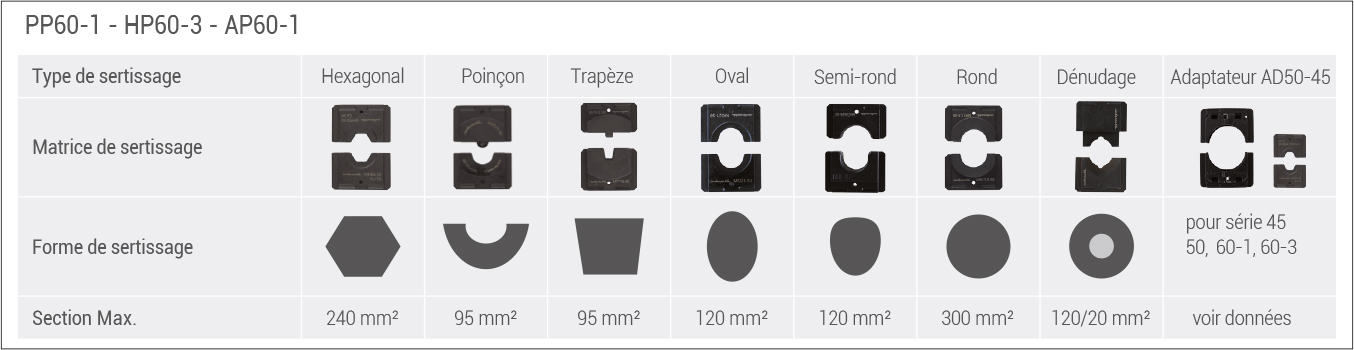

=> Compatible crimping dies for 50 and 60-1/3 series => Follow thislink
