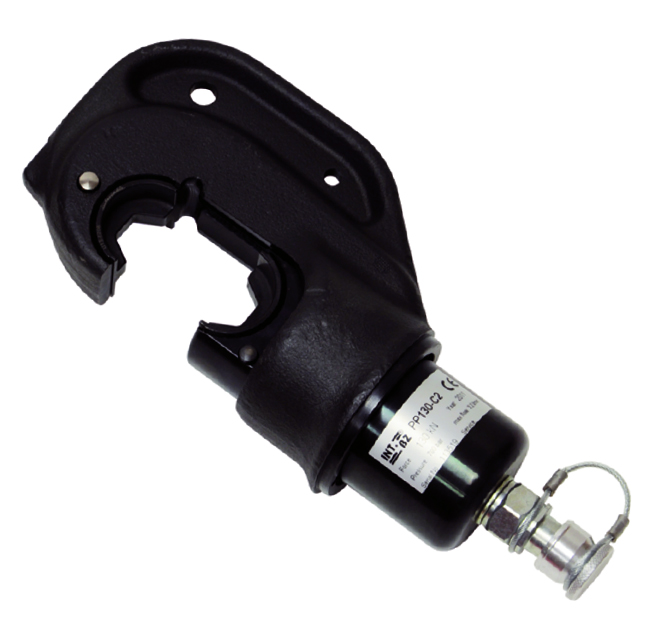

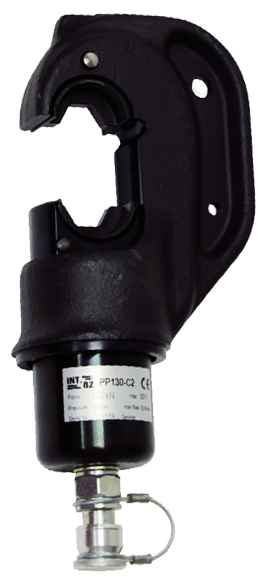

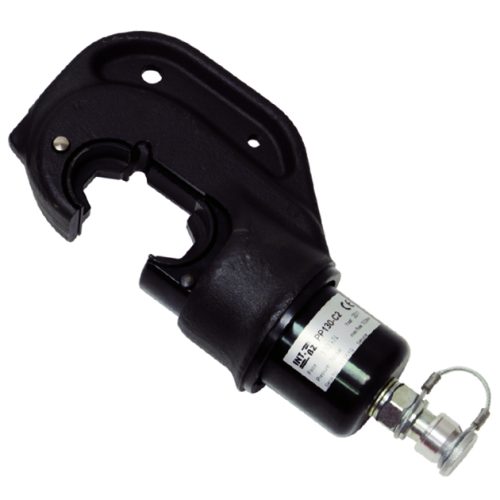

C-head crimping tool PP130-C2 opening 42mm (max 400mm²)
Overview
The Crimping tool PP130-C2 opening 42mm is designed for demanding electrical work. It crimps copper and aluminum from 6 to 400 mm². Its force reaches 130 kN. The C-head design speeds up the installation of dies and conductors. This saves you time and reduces alignment errors.
Applications and cross-sections
Use it in the workshop, on switchboards or for field maintenance. It is suitable for standard hexagonal lugs and sleeves. In addition, the 42 mm stroke accepts a wide range of accessories. Consequently, a single tool covers the majority of LV/MV requirements.
Hydraulics and connection
Connect it to a 700 bar pump to deliver full pressure. The male quick connector features automatic locking. A dust cap protects the interface during transport. In addition, the hydraulics remain stable under repeated load, which improves cycle reliability.
Need a mobile unit? See the Intercable CP700 EC battery-powered hydraulic pump. It powers the tool at 700 bar and optimizes on-site efficiency.
Dimensions and handling
Format: 129 × 271 × 78 mm. Weight: 4,4 kg. The structure remains compact and robust. The mechanical guidance then ensures precise positioning. Finally, the C-head geometry facilitates access in confined spaces.
Set contents
- Crimping tool PP130-C2
- Test report
- User manual
Everything comes in a rigid case with 14 slots for dies (400 × 350 × 130 mm). This keeps each accessory protected and identified.
Compatible dies
Use the130 series diesto adapt the indent to the cross-section and material. In addition, select the hexagonal shape recommended by the project specifications. This guarantees correct electrical resistance and long-lasting mechanical strength.
