Intercable HP45 manual hydraulic crimping tool – hand pump
3-year or 20 000 cycle warranty

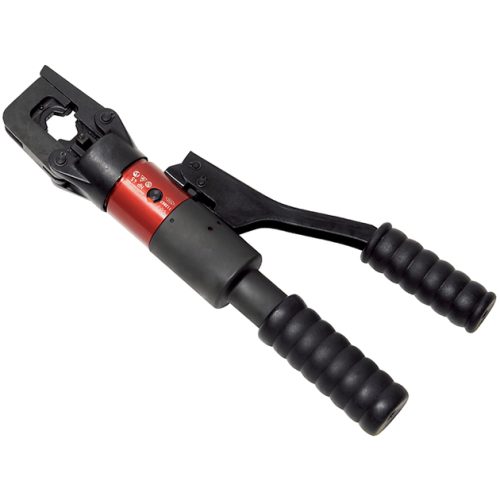

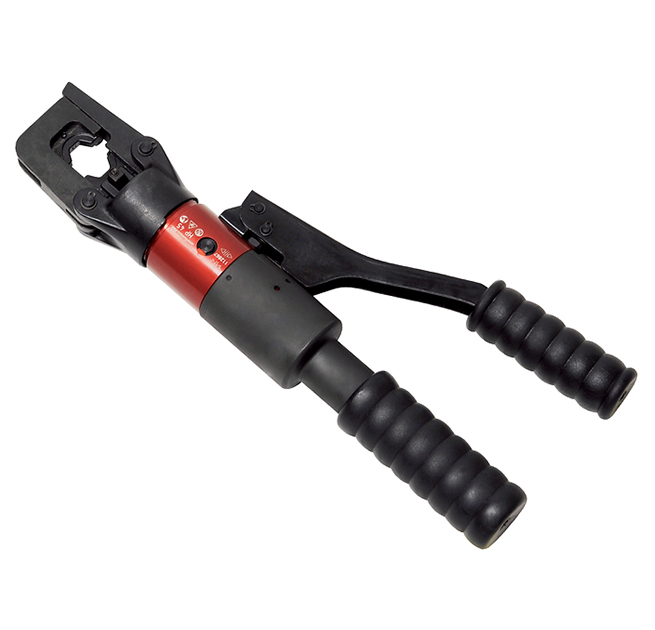

The manual hydraulic crimping tool intercable HP45 is a robust and compact tool designed to meet the needs of electricians and installers in professional environments. Thanks to its manual pump hydraulic system, it does not depend on any electrical power supply and can be used in all site conditions, including isolated areas or without access to electricity. It enables reliable crimping of copper and aluminum conductors from 6 mm² to 150 mm².
With a compression force of 45 kN and a maximum pressure of 470 bar, the HP45 ensures consistent and safe operation. Its 180° swivel crimping head, combined with quick carabiner closure, facilitates access in electrical cabinets, narrow manholes and other confined environments. The rapid advance of the double hydraulic cylinder reduces cycle time and increases productivity.
Manual hydraulic crimping tool features
- Compact structure resistant to mechanical stress
- 180° swivel head with carabiner closure
- Rapid advance thanks to double hydraulic cylinder
- Integrated automatic safety valve
- Manual return to any position by rotating the handle
- Maximum stroke: 16 mm
Physical specifications
- Dimensions: 157 × 375 × 54 mm
- Weight: 2,5 kg
Manual hydraulic crimping tool applications
This crimping tool is perfectly suited for electrical maintenance work, connections on panels, interventions in commercial and industrial sectors. Its low weight and manual design make it a preferred solution for mobile technicians. The integrated safety valve prevents any pressure overrun and guarantees tool durability, while the manual handle return allows the operation to be interrupted at any time.
Set contents
- HP45 manual hydraulic crimping tool
- Test report
- User manual
The HP45 is supplied in a rigid transport case, with space for 15 m dies (case dimensions: 440 × 190 × 80 mm). This packaging ensures optimal protection and organization of the tool and its accessories.
Discover the complete range of hydraulic tools for selection by application and cross-section.
