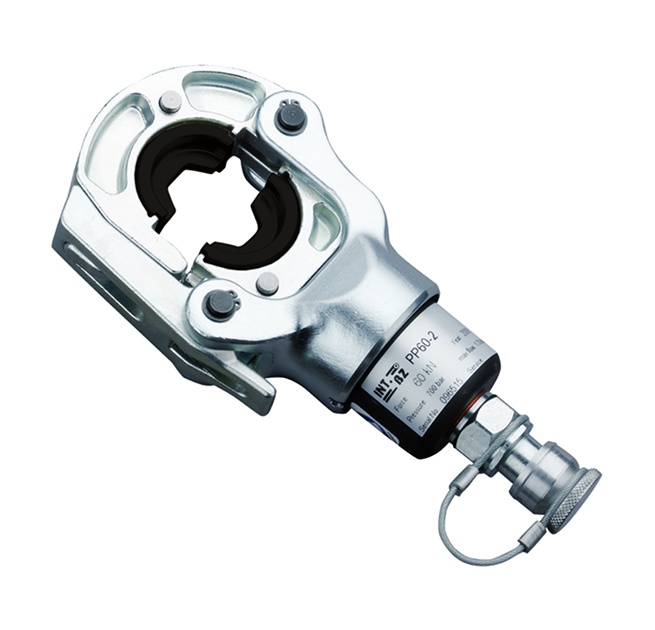

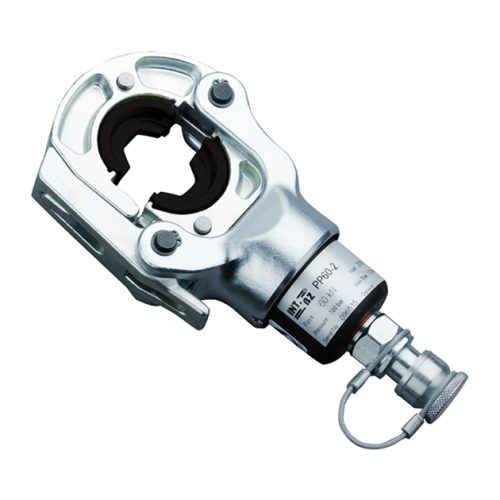

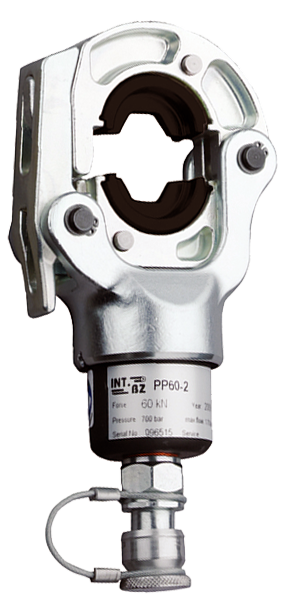

Intercable PP60-2 hydraulic crimping head – max 300 mm²
Overview
The Intercable PP60-2 hydraulic crimping head is a high-performance professional tool designed for crimping copper and aluminum cables from 6 mm² to 300 mm². With a compression force of 60 kN, it offers precision, reliability and durability in site or workshop environments. Its compact and robust design makes it a reference for demanding installers and electricians.
Applications and compatibility
Suitable for LV/MV connection work, standard hexagonal lugs and sleeves, the PP60-2 adapts to a wide range of conductor cross-sections. Its quick-closing carabiner system and automatic locking mechanism guarantee smooth and safe operation. Thanks to its compatibility with 700 bar hydraulic pumps, it delivers constant pressure ensuring uniform crimping.
Hydraulic characteristics
- Maximum pressure: 700 bar
- Compact structure, wear-resistant
- Quick-closing crimping head with carabiner
- Male quick hydraulic connection with automatic locking and dust cap
- Maximum stroke: 17 mm
Dimensions and weight
Dimensions: 93 × 198 × 93 mm
Weight: 1,7 kg
Its compact format enables use in areas with limited access, while maintaining optimal structural stiffness. The balanced tool body ensures stable handling, reducing fatigue during successive crimping cycles.
Case contents
- Intercable PP60-2 crimping head
- Test report
- User manual
Supplied in a rigid case with 18 die slots (dimensions: 320 × 260 × 75 mm), providing secure storage and easy transport.

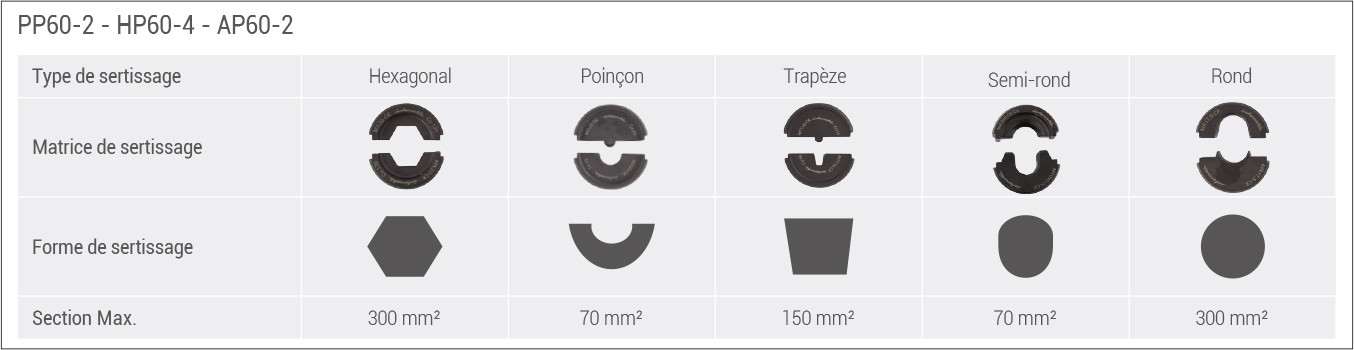

Compatible dies
The PP60-2crimping head is compatible withIntercable 50 and 60-1/3 series dies, available according to the cross-section and material to be crimped.
To guarantee optimal performance, select the hexagonal impressions recommended by NFC 20-130 and ENEDIS standards.
