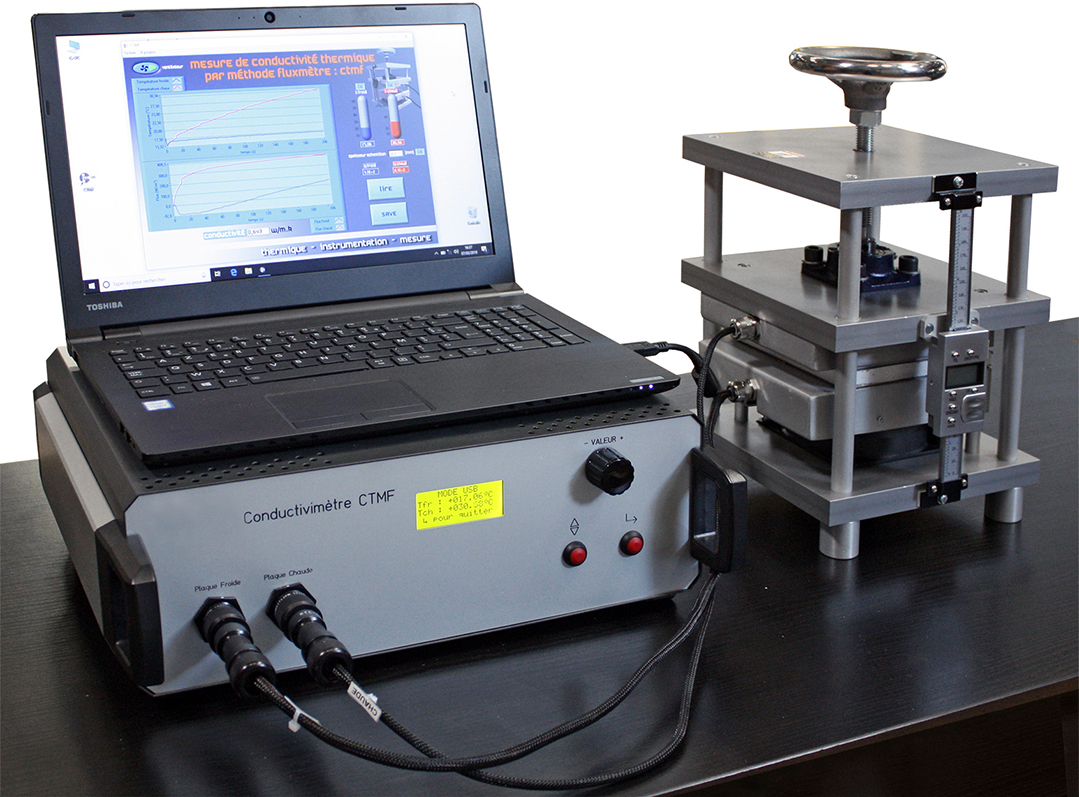

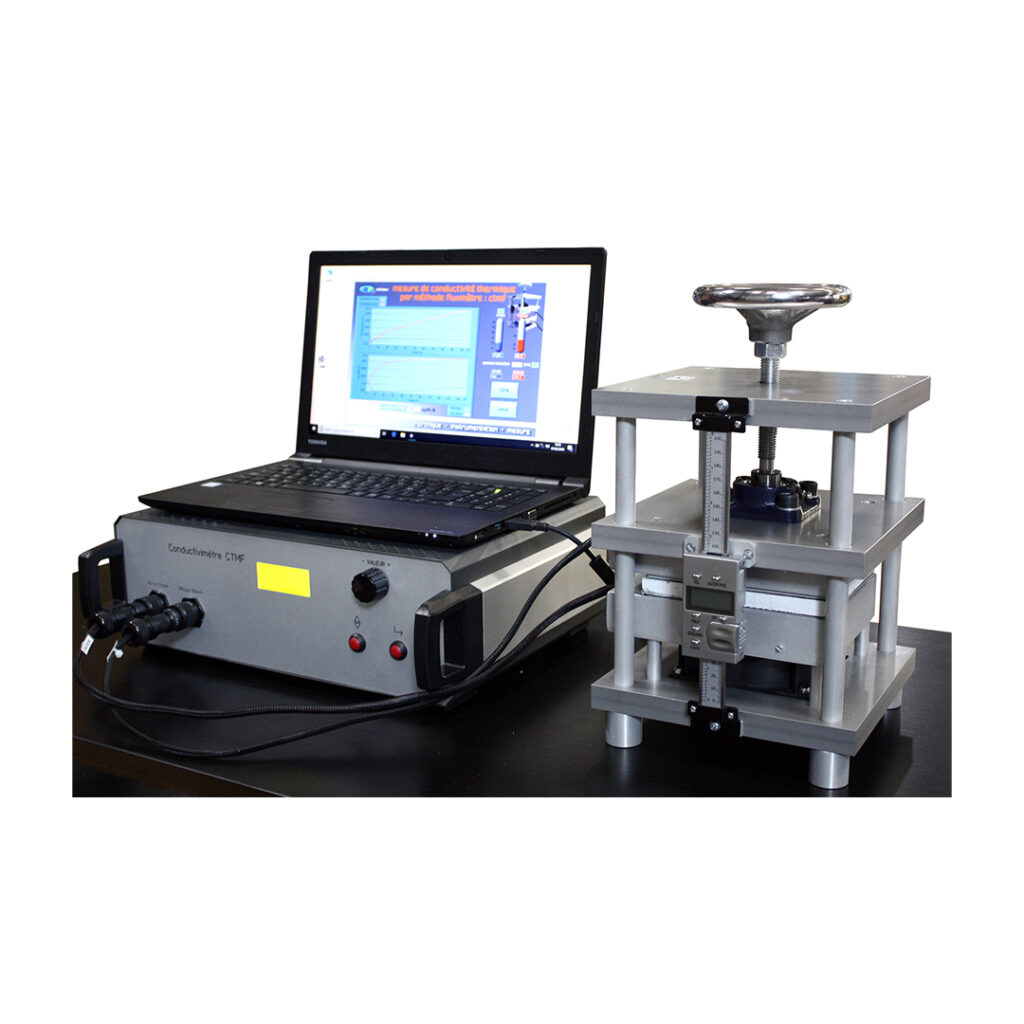

Measurement of THERMAL CONDUCTIVITY using the HEAT FLOW METER method
Compliant with standards:
- ASTM C518
- ISO 8301
- EN 12667
The CTMF enables the measurement of thermal conductivity of all insulating materials such as polystyrenes, polyurethanes, mineral wools, fired/unfired clay, ceramics, plastics, woods, super insulators and many others.
Principle
The CTMF principle is based on the heat flow meter method, which consists of producing a temperature gradient across the thickness of the specimen to be characterized and measuring the heat flux passing through it.

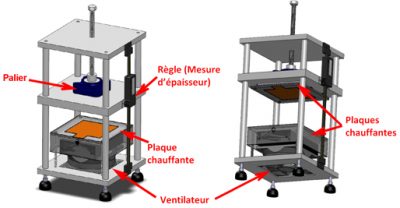

The temperature difference between the two faces of the specimen is applied using specifically dimensioned thermal elements.
The heat flux is measured by thermopiles according to the cited standards. The assembly is designed to accommodate specimens of 150 x 150 mm and from a few millimeters to a few centimeters in thickness.
Device Content
- Signal conditioning, temperature gradient regulation and thermal conductivity calculation unit
- 1 specimen holder
- Device operating instructions
Technical Specifications
- Solid specimens,…
- Specimen size: 150 x 150 mm, thickness from 5 mm to 20 mm
- Conductivity range: 0.005 to 1 W.m-1.K-1
- Measurement accuracy: 5%
- Repeatability: 3%
- Specimen thickness measurement accuracy: 0,03 mm
- Measurement temperature range from 20 to 80°C (room at 20°C)
- Power supply: 220 V
Please do not hesitate to contact us for any additional information on Thermal Conductivity Meters. View documentation
