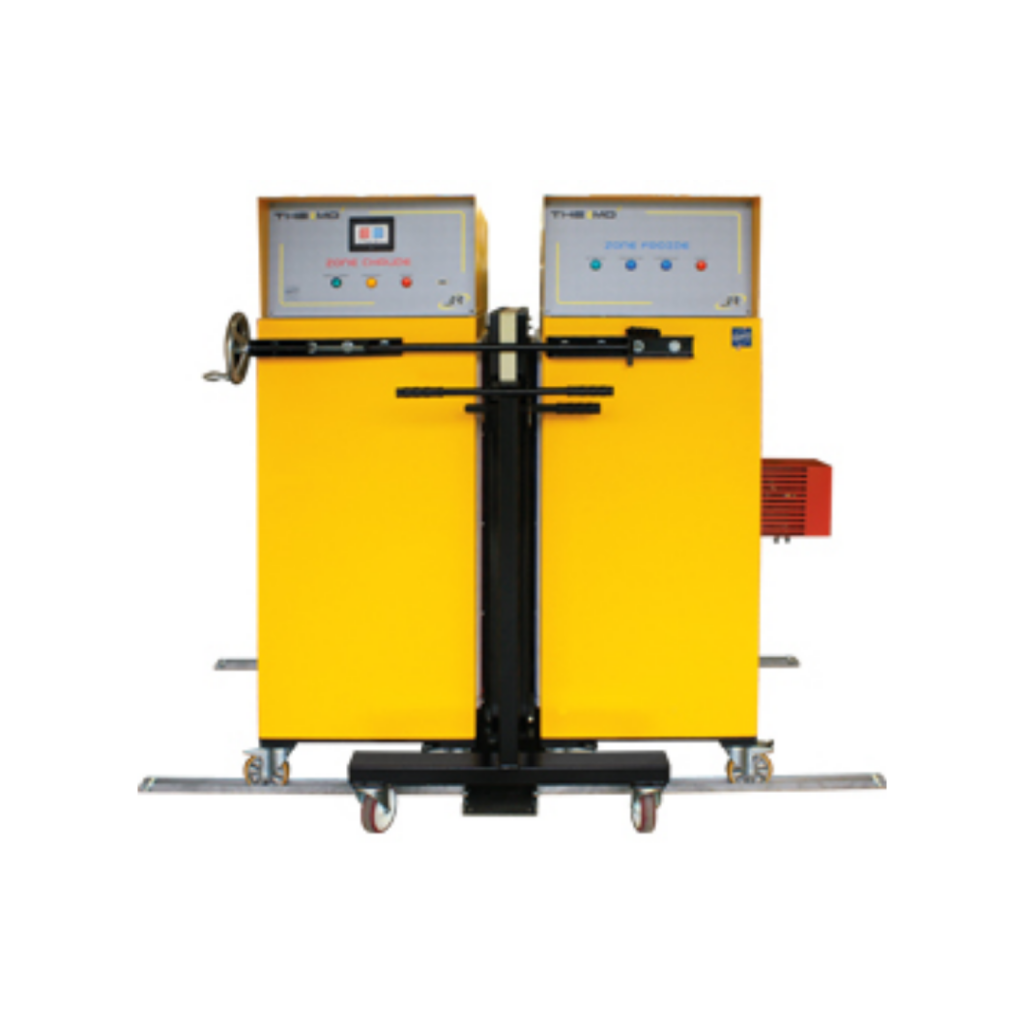

Full-scale heat transfer measurement device through a vertical flat wall
Operating principle: The hot and cold chambers are placed on either side of the wall to be tested…
Each chamber is set to a regulated temperature (cold side: between +5°C and –10°C) and hot side (between +10°C and +30°C).
.
The display shows the following data:
- the temperature gradient between the faces of the wall under test
- the energy loss through the wall
- the energy loss caused by thermal bridges
- the heat flux through the wall
- the thermal resistance and conductivity of the wall
Supplied with:
- a set of walls including:
► insulating panel
► insulated drywall
► double-glazed window
- a set of 8 digital temperature sensors
- a data acquisition unit for measuring temperatures and energy consumption
- A touch display for configuration and visualization of measurement results
Hot Zone:
- Insulated and ventilated
- Heating elements 200W
- 8 digital temperature sensors
- Supply current and voltage are measured by the central unit and enable calculation of the actual power of each zone
Cold Zone:
- Equipped with a refrigeration unit, a (cold) heat exchanger connected to the cold zone and a (hot) heat exchanger connected to the outside.
- The zone is insulated and ventilated.
- 4 digital temperature sensors.
See brochure
