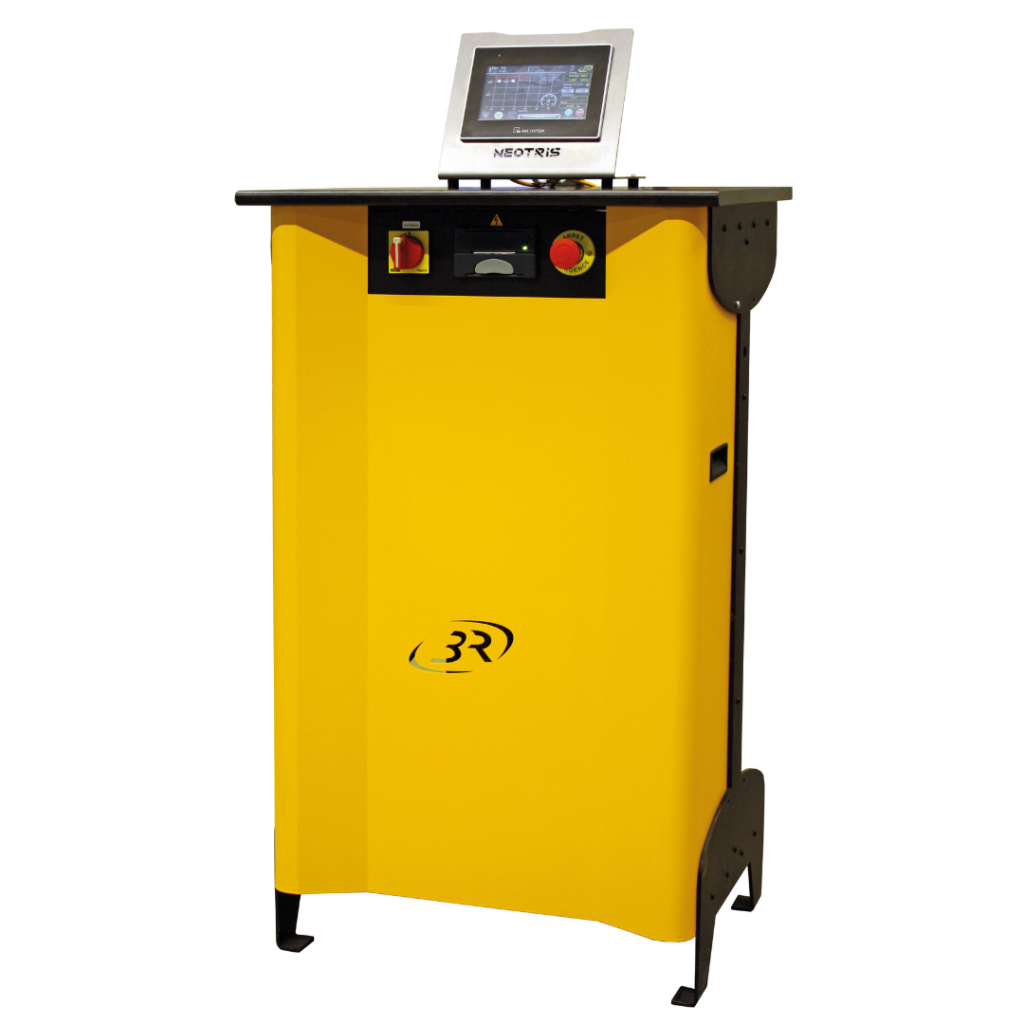

Néotris control unit features

• Control of a single frame single-acting, the control unit can be connected to all compression testing machines, whether from our range or other brands

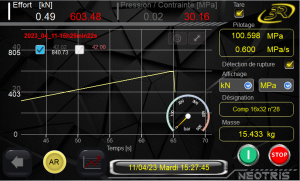

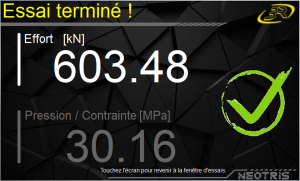

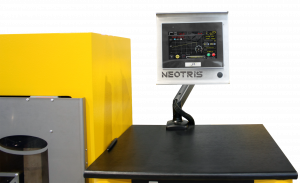

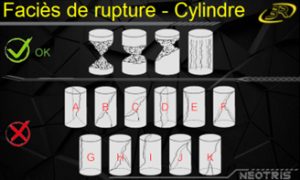

• Great ease of use: With its 7” color touchscreen TFT LCD display, all data is accessible at your fingertips!

• Excellent performance: With a measurement resolution of 24bits, a sampling frequency of 250Hz and a precision pressure sensor 0,15% of the measurement range, this control unit enables accuracy class 0.5 and compliance with EN 12390-4.
• Fully automatic control: Requiring no human intervention during the test, NEOTRIS automatically manages the loading rate and rupture detection.
• Results transferable by email with a single click
• Backup of results on USB key (optional): Automatic recording on a 16 GB USB key (or more on request).
• Printing of results on printer (optional): Integrated printer for printing results.
• Network connection: Possibility of connecting the control unit to a network for results retrieval and remote maintenance.

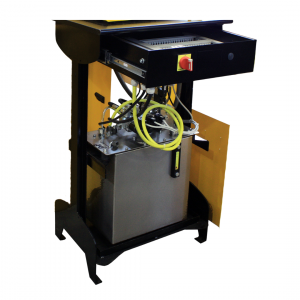

Hydraulic power unit:

• Flow-controlled from 8 to 500 bar (700 bar on request)
• Two-stage pump: fast approach (4,2 L/min) and high pressure (0,3 L/min)
• Submerged motor, dynamically balanced
• Aluminum reservoir capacity 8.6 usable liters
• Distribution and high-pressure filter
• Reservoir mounted on silent blocks
• External oil level

A flexible control unit: compact version or Retrofitfor your compression

machine

The NEOTRIS control unit is much more than a simple control tool: it adapts to your needs, whether you are looking for a turnkey machine + control unit solution or an upgrade of your existing equipment. Its modular and innovative design makes it an essential choice for civil engineering professionals seeking to connect a single frame.

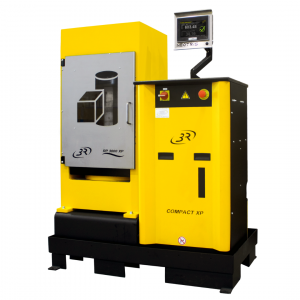

1. Compact version integrated into our machines

The NEOTRIS automatic control unit is available in “COMPACT” version, designed to integrate with one of our testing machines. This all-in-one solution enables:

• Quick and simple installation, without specific adaptation.
• Optimal compatibility with our equipment
• Immediate performance thanks to intuitive and efficient use from commissioning.

2. Retrofit mode: upgrade your existing equipment

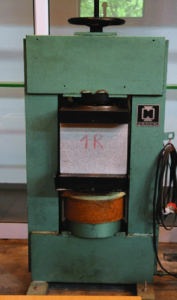

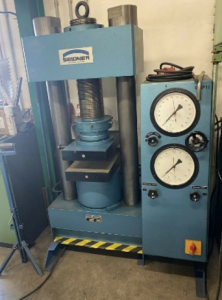

For professionals who already have an old testing machine and wish to upgrade it at the right price, the NEOTRIS automatic control unit offers the best solution currently on the market to reuse your current machine, while drastically improving its performance.

The control unit can be connected to all compression testing machines, whether from our range or other brands.

Transform your old machine into an automatic, modern and high-performance solution, while significantly limiting your budget!

We are here to support you by treating each project individually. Our expert technicians and design office are available to ensure perfect integration of the new system.+ or
Control unit alone + testing machine any brand
