Control of multiple testing machines
The QUANTECH can be prepared for the connection of several presses, used successively from a single control unit.
This configuration enables the laboratory to:
- centralize the control of its equipment;
- limit the multiplication of control stations;
- maintain common methods across several machines;
- evolve its installation according to its needs.
Measurement and acquisition
The reading unit integrates several measurement channels for the connection of sensors required for testing.
| Function | Main characteristic |
|---|---|
| Connectable machines | Up to 4 presses, used non-simultaneously |
| Measurement channels | Up to 16 inputs |
| Control | From a dedicated PC |
| Acquisition | Several sensors monitored simultaneously |
| Configuration | Adaptable to laboratory equipment |
SYNT’X control software
The SYNT’X software centralizes the preparation, launching and monitoring of tests.
It enables in particular to:
- create and save test methods;
- automate the different phases of the cycle;
- control by load or by stress;
- monitor measurements and curves in real time;
- save profiles for recurring tests;
- develop specific methods according to laboratory applications.
Results management
Results are saved in formats directly usable from the PC. They can be consulted, reprocessed and integrated into customized reports.
| Data management | Capabilities |
| Results | Files accessible from the PC |
| Reports | Customizable reports |
| Archiving | Locally or on the laboratory server |
| Curves | Real-time display |
| Methods | Configuration according to tests and applicable standards |
Integrated hydraulic power unit
The multi-piston hydraulic power unit is designed to ensure regular and quiet operation. Its large capacity reservoir and its level and temperature control devices contribute to securing the control unit operation.
Support and remote maintenance
A secure Internet connection enables 3R Industries teams to intervene remotely for:
- configuration support;
- maintenance;
- setup assistance;
- user support.

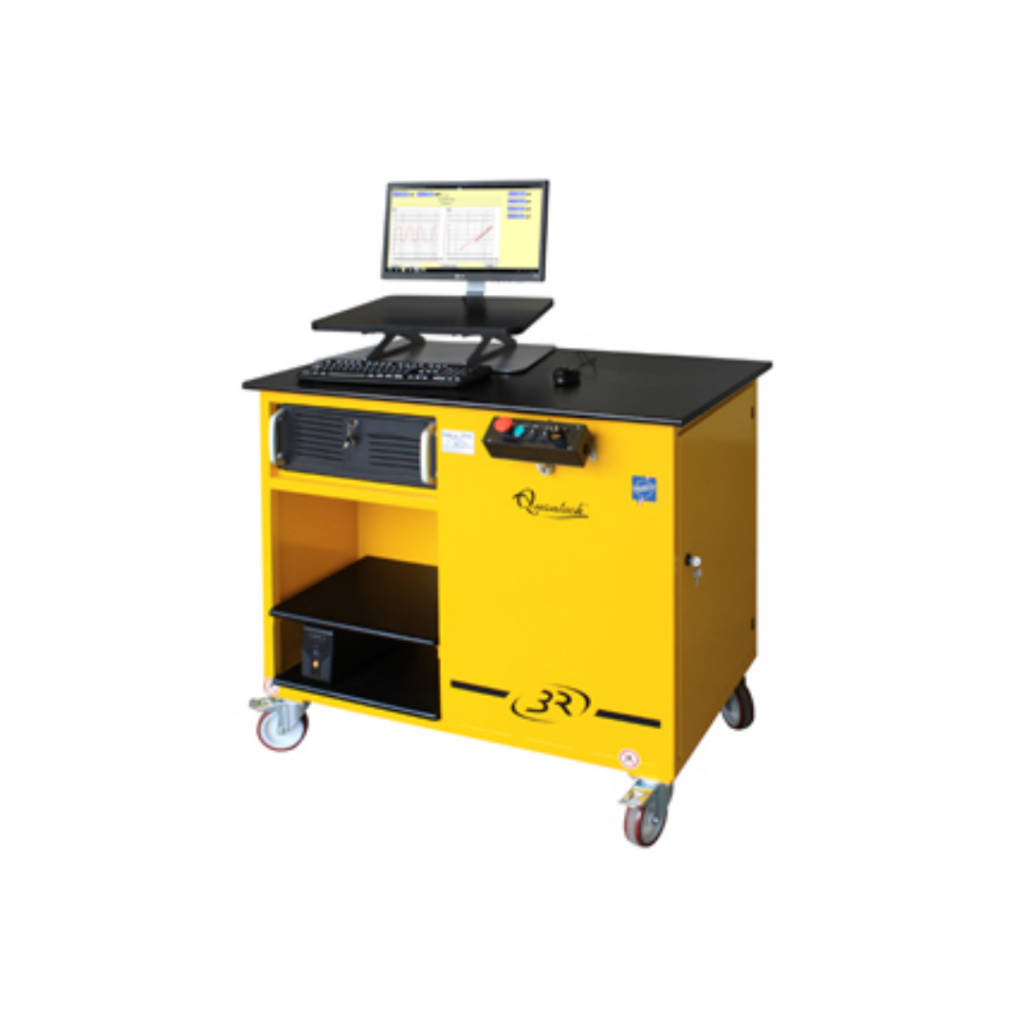

Main characteristics
| Characteristic | Value |
| Control type | Automatic from a dedicated PC |
| Software | SYNT’X |
| Pre-connected machines | Up to 4 presses |
| Reservoir capacity | 80 liters |
| Dimensions H × W × D | 1 124 × 1 415 × 750 mm |
| Weight | Approximately 170 kg depending on options |
| Hydraulic power supply | 3 × 400 V + earth |
| Control power supply | 230 V + earth |
