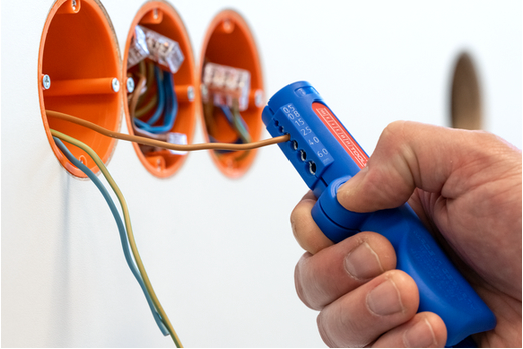

The Quadro No.16 stripping tool from WEICON is a high-precision multifunctional tool designed for fast stripping and sheathing removal of standard round cables from 8 to 13 mm in diameter. Compact and ergonomic, it combines several functions in a single device to meet the needs of electricians, installers and maintenance technicians.
Main features:
-
Maximum versatility: compatible with all common round and wet cables with PVC insulation.
-
Precise stripping of flexible or rigid conductors from 0.5 to 6,0 mm²thanks to an integrated stripping zone (0.5 / 0.75 / 1.5 / 2.5 / 4.0 / 6,0 mm²).
-
Fast longitudinal and circular cutting via optimized cable passage geometry.
-
Retractable and lockable hook blade in multiple positions, easily replaceable (accessory ref.: 52953040).
-
Robust construction in glass fiber reinforced polyamide, guaranteeing light weight (53 g) and longevity.
-
Fixed inner blade for consistent alignment and enhanced safety.
-
TÜV NORD certification, attesting compliance with safety standards.
Technical specifications:
-
Cable type: standard round cables (PVC, wet)
-
Conductor cross-section: 0.5 to 6,0 mm²
-
Length: 125 mm
-
Weight: 53 g
-
Material: glass fiber reinforced polyamide
-
Hook blade: interchangeable, lockable
-
Product reference: 10038853
User benefits:
-
4-en-1 tool: round cutting, longitudinal cutting, stripping, final cutting
-
Safe and fast handling
-
Protected and lockable blade for safe operation
-
Compact design for construction site or electrical cabinet environments
Available accessory:
-
Replacement hook blade ref. 52953040
Manufacturer: WEICON GmbH & Co. KG
Last update: 26/11/2024
