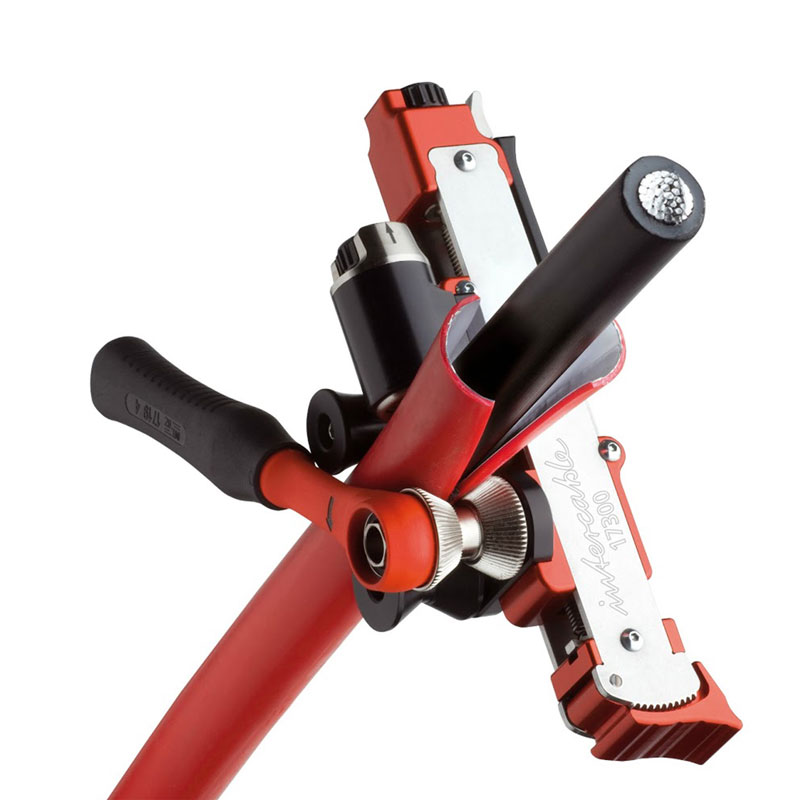

Universal stripper AMX

Universal cable stripper for robust outer sheaths from ø 16 to 54mm

Polyethylene cables / outer insulation fully bonded on aluminum from 16 to 54mm (ø 16- 54mm) with insulation thickness from 0 to 5mm

Designed to strip armored outer sheaths of LV / MV cables

Suitable for longitudinal and circular cutting

Additional claw to break hard insulation

Initial adjustment of the correct cable diameter is done by adjusting the handle

The device is fixed on the cable using a quick-release system with main lever.

Cutting depth is adjustable in 0,1 mm increments

Industry type

Electrical networks

Brand

Intercable

Request a quote

Request a quote, we will get back to you within N days

Request a quote

Universal stripper AMX

Robust equipment

Time savings

Local after-sales support

Description

Universal stripper AMX:

Universal stripper for robust outer sheaths from ø 16 to 54mm
Polyethylene cables / outer insulation fully bonded on aluminum from 16 to 54mm (ø 16- 54mm) with insulation thickness from 0 to 5mm
Designed to strip armored outer sheaths of LV / MV cables
Suitable for longitudinal and circular cutting
Additional claw to break hard insulation
Initial adjustment of the correct cable diameter is done by adjusting the handle
The device is fixed on the cable using a quick-release system with main lever.
Cutting depth is adjustable in 0,1 mm increments
Switchable between longitudinal and circular cutting
Maximum rotation clearance of the tool: 300 mm
Rotation enables working in confined spaces
Easy and precise work thanks to a quick-locking system
Step-by-step depth adjustment and maximum safety for the operator.

Supplied in soft case with feed lever and operating instructions
Tool included in the HTA Fi2A kit
Dimensions: 250 x 150 x 90 mm Weight: 1.3 kg
