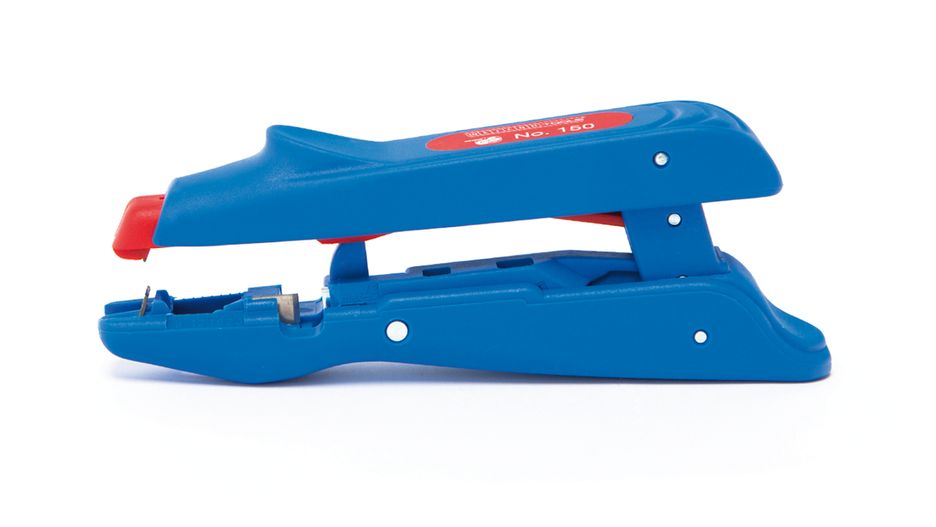

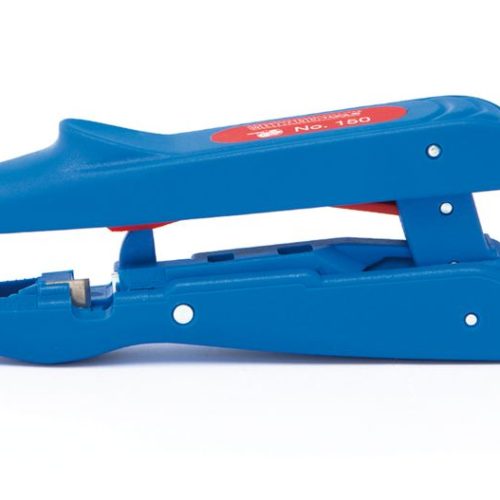

WEICON CABLE STRIPPER MINI-DUO No.150

Automatic stripper for single-core and multi-core wires from 0.5 to 6 mm². Integrated wire cutter and automatic adjustment to conductor cross-section.

Industry type

Electrical networks

Brand

Request a quote

Request a quote, we will get back to you within N days

Request a quote

WEICON CABLE STRIPPER MINI-DUO No.150

Robust equipment

Time savings

Local after-sales support

Description

FAST & FLAWLESS automatic stripping of all common single-core and multi-core cables from 0.5 to 6mm2.

With integrated side wire cutter for easy access (multi-core up to 6,0mm2, single-core up to 4,0mm2).

A mark on the handle facilitates stripping to the desired length (8 to 20mm).

The stripper automatically adjusts to the wire diameter and enables fast and flawless stripping.

Description: Fully insulated stripper for all common multi-core and single-core wires. A special sensing system automatically adapts to the conductor cross-section. Integrated side wire cutter for easy access (multi-core up to 6,0mm2, single-core up to 4,0mm2).
Cable types: multi-core and single-core conductors with PVC insulation
Inner blade: interchangeable
Material: glass fiber reinforced polyamide
Accessories: replacement blades, Art.-No. 5100-157

Diameter: 0.5 to 6mm2

Wire Cutter: max ø: – multi-core: 6,0mm2 – single-core: 4,0mm2

Length: 160mm

Weight: 58 gr

Reference: 5100-150

Related services

Request a quote

Similar equipment

AIS Universal Stripper

Universal cable stripper for insulating outer sheaths from ø 16 to 54mm High-den...

AIS Universal Stripper

Quadro No.16 Stripping Tool – WEICON

Compact and ergonomic, the WEICON No.16stripping tool enables fast stripping and...

Quadro No.16 Stripping Tool – WEICON

Stripping tool ABI1 for outer sheath

Stripper for rigid or flexible outer insulating layer PVC, rubber cables diamete...

Stripping tool ABI1 for outer sheath

Universal AMS Stripping Tool

Universal Stripper for outer insulating layer of MV & LV cables from ø 25mm ...

Universal AMS Stripping Tool

Universal stripper AMX

Universal cable stripper for robust outer sheaths from ø 16 to 54mm Polyethylene...

Universal stripper AMX

WEICON 28-35

Stripping knife for round cables Ø 28 to 35 mm. Self-pivoting blade for precise,...

WEICON 35-50

Stripping knife for round cables Ø 35 to 50 mm. Suitable for single-strand and m...

WEICON 4-16

Compact stripping knife for round cables Ø 4 to 16 mm. Enables precise and safe ...

WEICON 4-28 G

Stripping knife for round cables Ø 4 to 28 mm, with straight blade and protectiv...

WEICON 4-28 H

Stripping knife for round cables Ø 4 to 28 mm, with hooked blade and protective ...

WEICON 8-27

Stripping knife for round cables Ø 8 to 27 mm. Adjustable self-pivoting blade fo...

WEICON COAXIAL CABLE STRIPPER No. 2

Cable stripper for coaxial cables Ø 4.8 to 7,5 mm and flexible cables. Simple st...

WEICON COAXIAL CABLE STRIPPER No. 2

WEICON DENUDE CABLE COMBI-COAX N°3

Stripper for coaxial cables and flexible cables. Enables step stripping without ...

WEICON DENUDE CABLE COMBI-COAX N°3

WEICON DUO CRIMP N°300

2-en-1 tool for stripping conductors from 0.5 to 6 mm² and crimping cable ferrul...

WEICON DUO CRIMP N°300

WEICON DUO STRIPPER N°200

Professional tool 2-en-1 for stripping round cables Ø 4 to 28 mm and stripping c...

WEICON DUO STRIPPER N°200

WEICON MULTI STRIPPER N° 400

Multi-purpose tool for circular cutting, longitudinal cutting, stripping and wir...

WEICON MULTI STRIPPER N° 400

WEICON MULTI STRIPPER PLUS N° 500

Multi-function tool 5-en-1: stripping, sheathing removal, wire cutting, voltage ...

WEICON MULTI STRIPPER PLUS N° 500

WEICON N°5 PRO

Stripping tool No. 5 PRO for all common stranded and solid conductors 0,2 - 16 m...

WEICON N°5 PRO

WEICON No. 1000

Robust knife for stripping large-diameter cables and multi-insulated cables. Pro...

WEICON No. 1000

WEICON ROUND CABLE STRIPPER N°13

Tool for flush stripping of round cables Ø 8 to 13 mm, including in junction box...

WEICON ROUND CABLE STRIPPER N°13

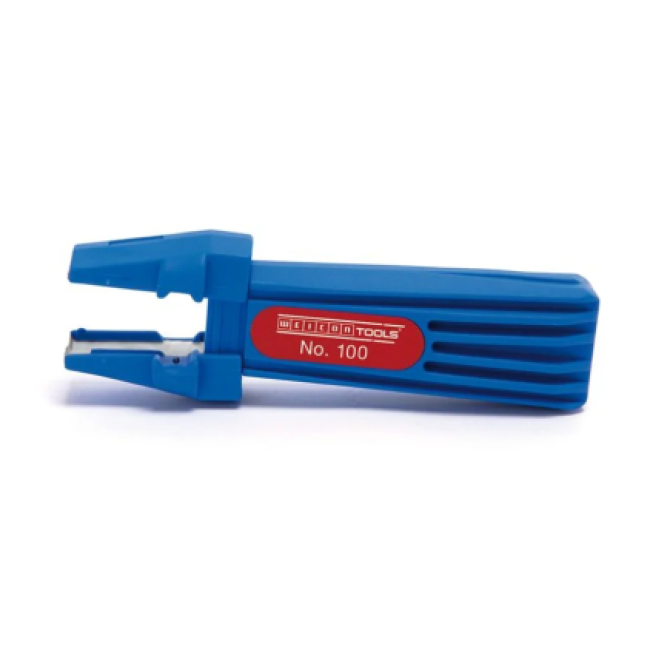

WEICON STRIPPER N°100
