Multi-purpose Tool with 5 functions: Reversible screwdriver bits (flat and Phillips), phase and voltage tester, stripping, sheathing removal and wire cutting.
5 tools combined in 1 enabling the stripping of standard round cables from 8 to 13mm in diameter, and the sheathing removal of all conductors from 0,5mm2 to 6mm2.
Integrated wire cutter for cables up to ø 9mm. Ergonomic bi-material non-slip handle.
The tool features 2 reversible screwdriver bits as well as a phase and voltage tester.
=> Stripping of all standard round cables and coaxial cables.
– Suitable for all types of standard round cables from ø 8 to 13mm (from 3×1.5mm2 to 5×2.5mm2)
– For layer-by-layer stripping of all standard transmission coaxial cables from ø 4,8mm to 7,5mm.
=> 2 reversible screwdriver bits.
– Phillips PZ1 and Flat 3.5 x 0,6mm
– Phillips PZ2 and Flat 4.0 x 0,8mm
=> Phase and Voltage tester.
– Voltage from 110 to 250 V
=> Wire cutter.
– Integrated wire cutter up to max. ø 9mm.

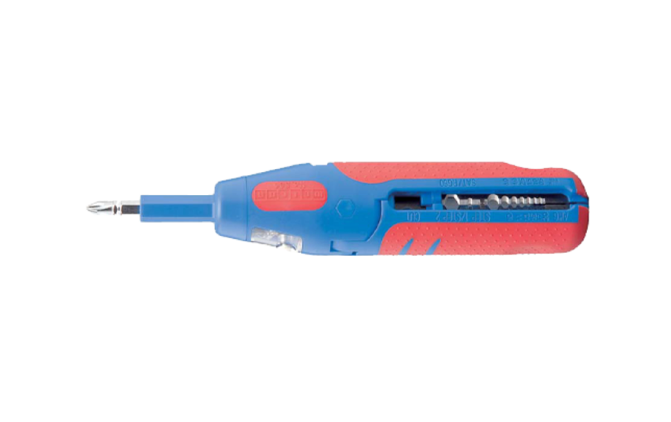

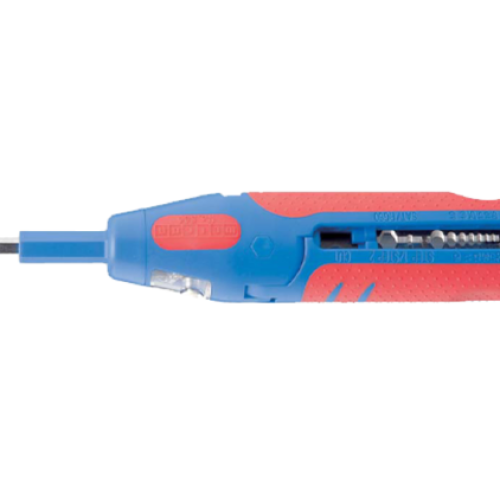

- Description: The Multi-Stripper plus No. 500 is a multi-function tool designed for sheathing removal and stripping of all standard round and coaxial cables. An easily accessible wire cutter is also integrated for cutting cables up to ø 9mm. A phase and voltage tester can be used, thanks to its 2 reversible screwdriver bits. Ergonomic tool with its bi-material body and non-slip handle.
- Cable types: multi-strand and single-strand conductors with PVC insulation; coaxial cables
- Inner blade: fixed, non-replaceable
- Material: glass fiber reinforced polyamide
Stripping: from ø 8 to 13mm
Sheathing removal: Standard round cables from 0.5 to 6mm2 / Coaxial cables from ø 4.8 to 7,5mm
Wire Cutter: Max. ø 9mm
Length: 240 mm
Weight: 168 gr
Reference:5100-500
