Stripping & CRIMPING with A SINGLE TOOL.
2 tools combined in 1, enabling FAST, PRECISE and SAFE stripping and crimping of all common round cables.
=> Stripping of all common single-strand and multi-strand cables from 0.5 to 6,0 mm2.
The special adjustment system automatically adapts to the wire diameter and enables fast stripping without damaging the insulation of the conductor core.
The conductor is stripped over a length of 5mm (the stripped part remains on the wire).
Then the multi-strand conductor is twisted.
=> Crimping of cable ferrules from 0.5 to 2,5mm2 or from 4.0 to 6,0mm2.
The tool offers 2 crimping ranges:
– from 0,5mm2 to 2,5mm2
– from 4,0mm2 to 6,0mm2
Integrated wire cutter easily accessible (multi-strand up to 6,0mm2, single-strand up to 4,0mm2)
-

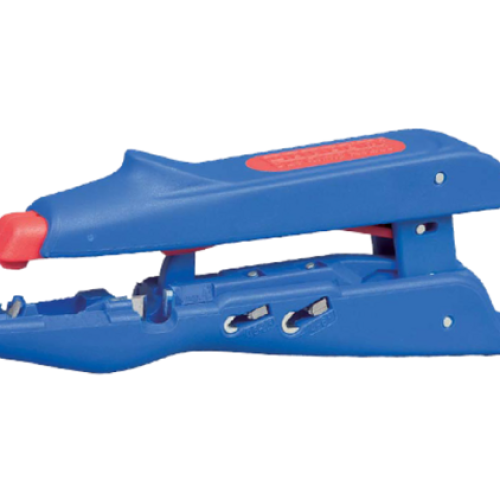

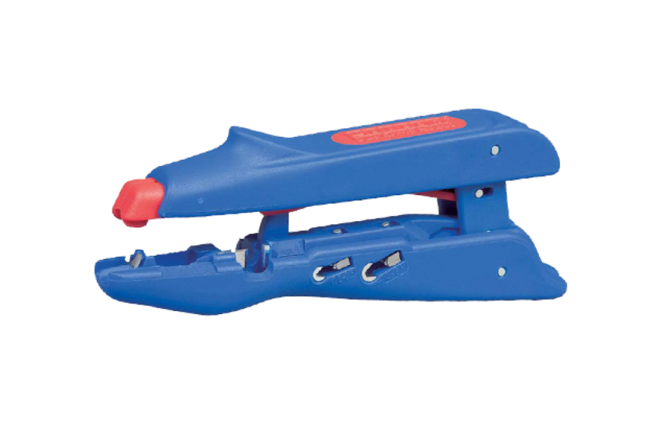

Description: The Duo-Crimp No. 300 enables stripping of conductors and crimping of ferrules. The automatic sensing system eliminates the need for adjustment to the cable cross-section. It features a visual scale of lengths from 8 to 20 mm and is suitable for all multi-strand and single-strand conductors from 0,5 mm² to 6 mm². It strips conductors over a length of 5 mm, preventing the strands from untwisting. Then the conductor is twisted. For crimping ferrules, the tool has two cross-section ranges: 0.5 to 2,5 mm² and 4.0 to 6,0 mm². Side wire cutter easily accessible for multi-strand cables up to 6,0mm2, single-strand up to 4,0mm2.
-
Cable types: multi-strand and single-strand conductors with PVC insulation, coaxial cables
-
Inner blade: adjustable and replaceable
-
Material: glass fiber reinforced polyamide
-
Accessories: replacement blades, Art.-No. 5100-157
Stripping: from 0.5 to 6mm2
Wire Cutter: max ø: – multi-strand: 6,0mm2 – single-strand: 4,0mm2
Length: 160mm
Weight: 28 gr
Reference: 5100-300
