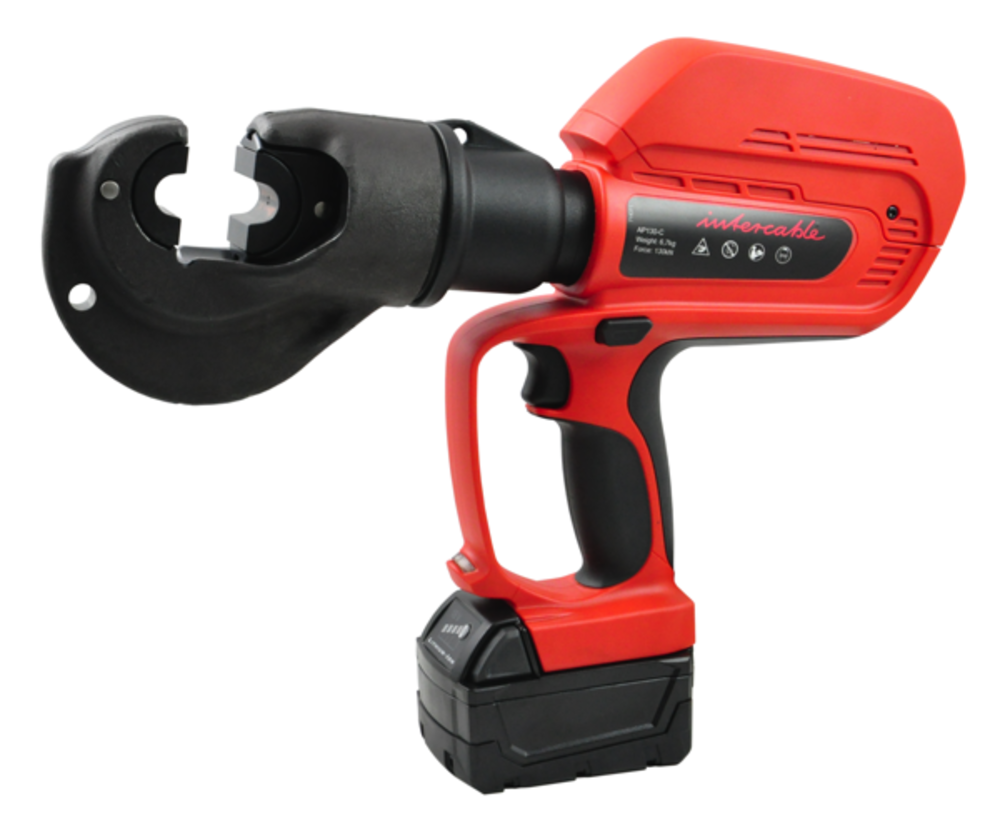

Intercable AP130-C battery-powered hydraulic crimping tool – pistol grip design
3-year or 20 000 cycles warranty
The battery-powered hydraulic crimping tool Intercable AP130-C is a self-powered tool for heavy-duty electrical work sites. Its quick handling, swivel head and high autonomy ensure consistent and safe cycles for crimping copper and aluminum conductors from 16 mm² to 400 mm².
Compression force: 130 kN.
Battery-powered hydraulic crimping tool specifications
- Dual hydraulic cylinder dual hydraulic cylinder architecture: short cycles, stable pressure, uniform die closure.
- Carabiner-closure head swiveling 360°: access to cabinets, manholes, busbars and confined spaces.
- Single-touch decompression, operable with one hand, suitable for left/right-handed users.
- Balanced handle and shoulder strap ring: secure hold on ladders and aerial platforms.
- Housing and control in insulating polymers, high resistance to impact and light hydrocarbons.
- Integrated LED lighting for dark areas and poorly lit cabinets.
Physical specifications
- Dimensions: pistol grip format, optimized footprint for cabinets
- Weight: ≈ 6,0 kg (with battery)
- Power supply: Li-ion battery 18 V (RA series); LG charger
- Cross-section range: 16–400 mm² (Cu/Al)
Recommended uses for a battery-powered hydraulic tool
LV/MV heavy-duty connections, power bars, cable trays, substations, commercial/industrial applications. The swivel head aligns the crimping impression, limits torsional stress on the core and ensures controlled deformation of terminals and sleeves according to dies and applicable standards.
Set contents
- Test report
- Tool AP130-C
- Battery 18 V Li-ion
- Charger
- Shoulder strap
Supplied in rigid case with die compartments.

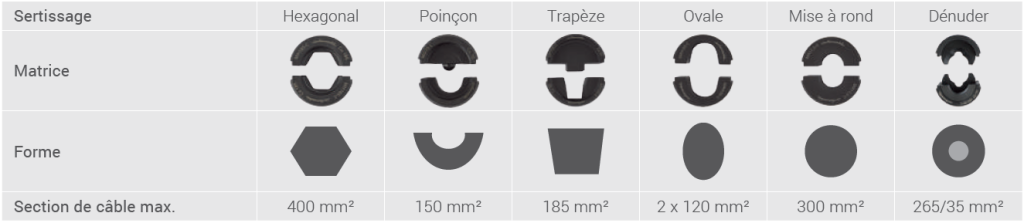

Compatible dies
Discover the complete range of hydraulic tools to select by application and cross-section.
