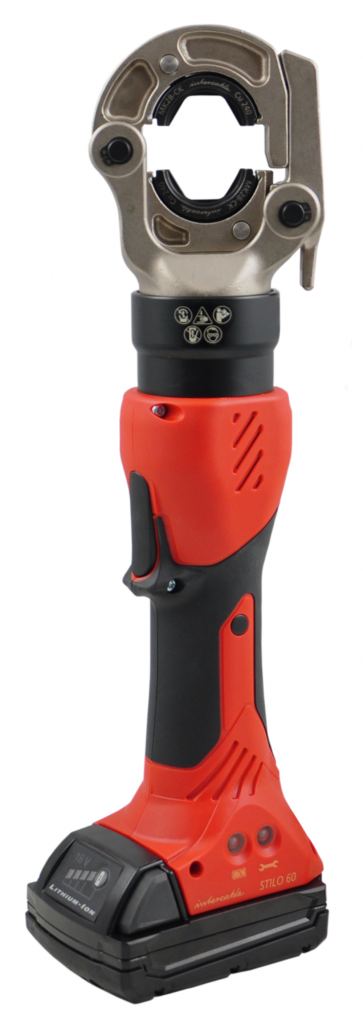

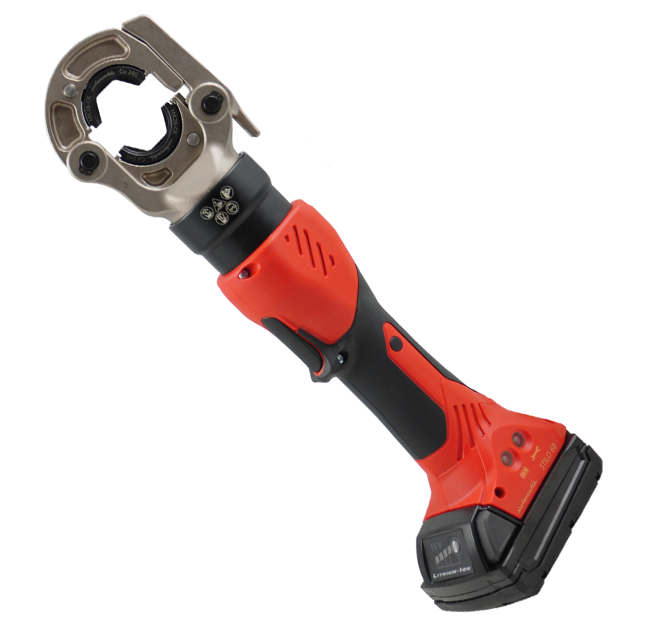

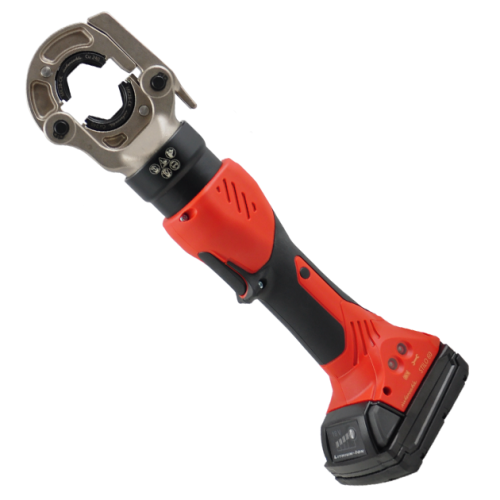

intercable STILO60 battery-powered hydraulic crimping tool

Handy – Ergonomic – Smart – Powerful

New!
Compatible with NF dies according to standard NFC 20-130

Suitable for crimping copper and aluminum cables from 6 mm² up to max. cross-section 300 mm².
=> Compression force: 60 kN

Design and ergonomics

• Lightweight, compact and robust.
• Ergonomic design suitable for both left- and right-handed users.
• Balanced and comfortable handle for secure grip.
• Integrated powerful LED to illuminate dark work areas.

Hydraulic performance

• Three-piston axial pump for extremely fast operation.
• Automatic pressure limitation and monitoring by sensor.
• Progressive start and quick stop that increase service life.
• Automatic return after crimping completion.
• Manual return possible in any position.
• Fast reopening thanks to high return flow.
• Maximum stroke of 16 mm.

Electronic control and safety

• Continuous monitoring of the crimping process by intelligent module.
• Integrated cycle management with automatic motor stop.
• Automatic energy-saving mode after 5 mminutes of inactivity.
• Service indicator and maintenance control.
• Electronic module with 2 LED multifunction (3 colors).
• Impossible to interrupt a cycle thanks to battery charge control.

Data storage and connectivity

• Internal memory of 100 000 cycles with error history.
• Data reading and export via USB.
• Mini USB interface compatible with standard PC systems.
• Software updates accessible via USB.
• Software provided (CD) for compression curve analysis.

Power supply and autonomy

• Li-Ion battery 18 V (1.5–2.0 Ah depending on configuration).
• Direct charge status display on the battery.
• Optimized gearbox service life management.

Physical specifications

• Dimensions: 124 × 383 × 81 mm
• Weight: 3,3 kg (with battery)

Set contents

• Test report
• Crimping tool STILO60
• Battery 18 V/2.0 Ah Li-Ion (RA20)
• Charger (LG8)
• USB cable
• Software (CD)

Supplied in rigid transport case (560 × 357 × 118 mm – total weight 6,3 kg).

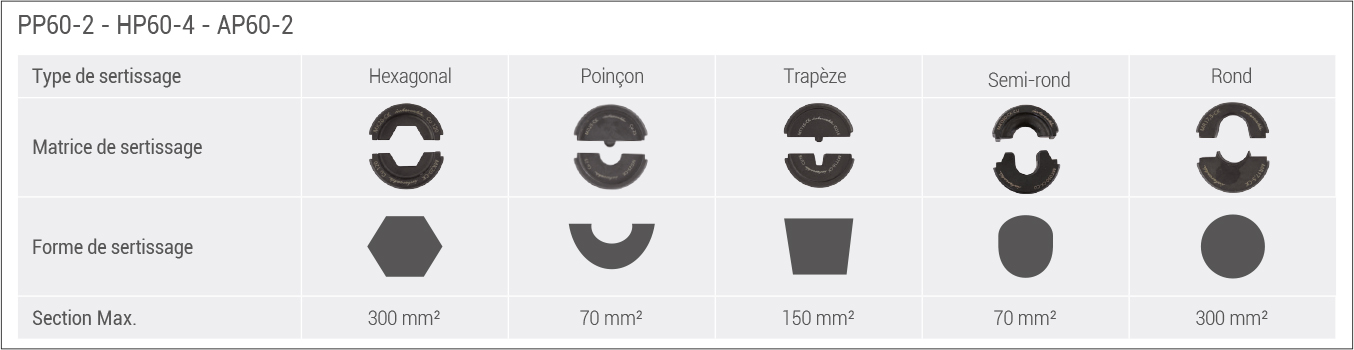

Compatible dies

Compatibility with series 60-2/4. Die selection according to cross-section and material.View dies
