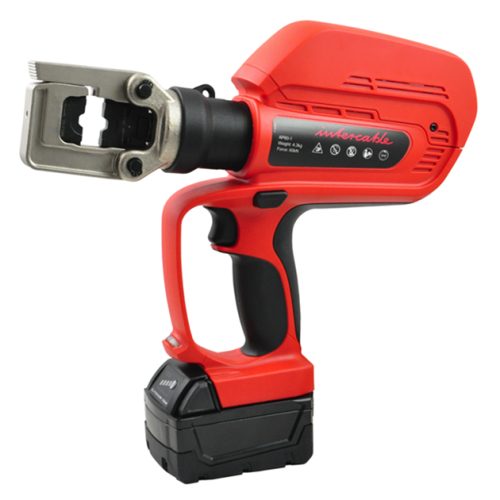

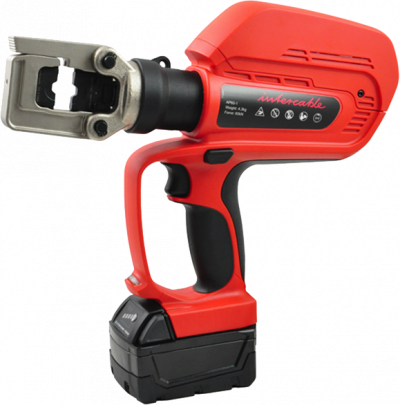

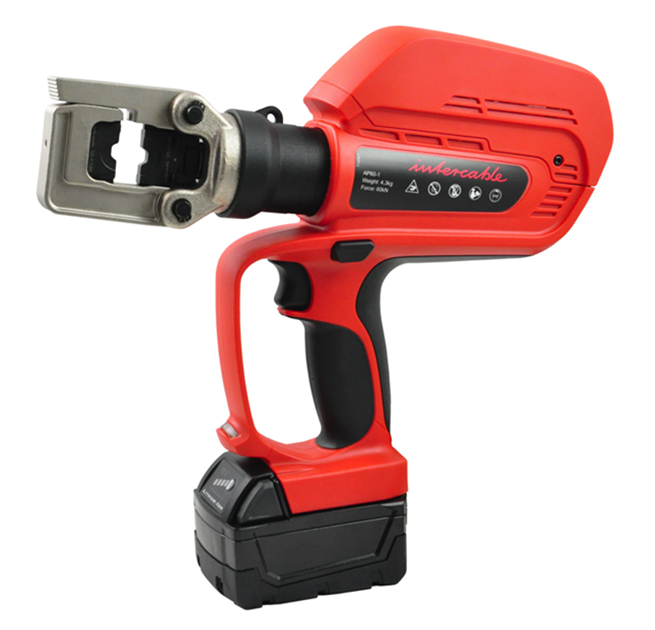

Intercable AP60-1 battery-powered hydraulic crimping tool – pistol grip
3-year or 20 000 cycle warranty
The battery-powered hydraulic crimping tool Intercable AP60-1 is a self-powered tool designed for professional crimping of copper and aluminum conductors from 6 mm² to 240 mm². Its ergonomic design, low weight and dual hydraulic cylinder guarantee speed, safety and cycle consistency on site.
Compression force: 60 kN
Battery-powered hydraulic crimping tool specifications
- Architecture dual hydraulic cylinder for fast cycles and uniform die closure.
- Snap-hook crimping head rotating 360°, practical in cabinets and confined spaces.
- One-touch decompression button usable with one hand, left or right side.
- Balanced ergonomic handle with shoulder strap attachment ring, suitable for work at height.
- Housing and control in insulating polymers, resistant to impact and hydrocarbons.
- Powerful lighting LED for dark areas.
Physical specifications
- Dimensions: 329 × 331 × 75 mm
- Weight: 4,3 kg (with battery)
- Power supply: Li-ion battery 18 V / 3.0 Ah (RA50); charger LG8
- Cross-section range: 6–240 mm² (Cu/Al)
Recommended uses
Ideal for LV/MV connections, installation of hexagonal terminals and sleeves, as well as commercial and industrial installations. The rotating head reduces torsional stress on the conductor core, guaranteeing precise crimping in compliance with standards.
Set contents
- Test report
- Crimping tool AP60-1
- Battery 18 V / 3.0 Ah Li-ion (RA50)
- Charger (LG8)
- Shoulder strap
Supplied in rigid case with slots for 18 m dies (580 × 470 × 115 mm – total weight 7,9 kg).

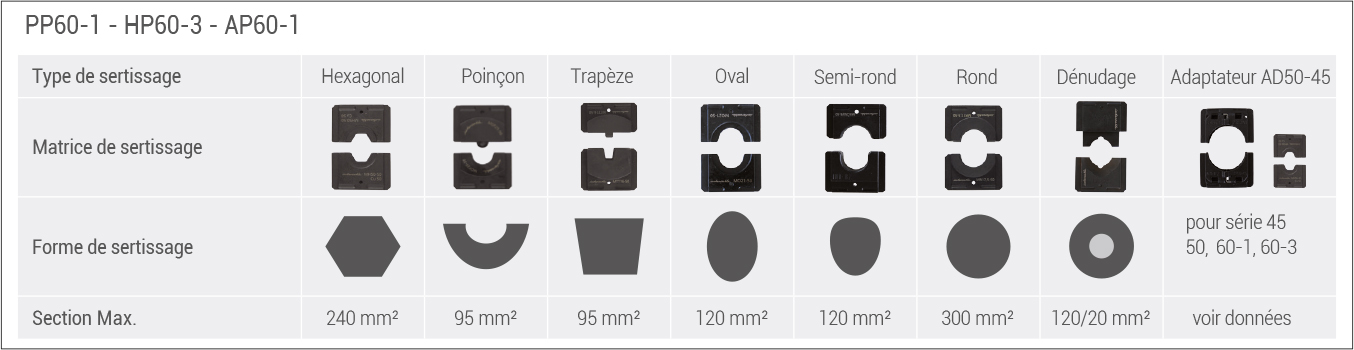

Compatible dies
Compatibility series PP60-1 – HP60-3 – AP60-1. Selection of indents according to cross-section, material and standard.View dies
3D view
View the geometry and handling of the battery-powered hydraulic crimping tool in interactive model if available.
