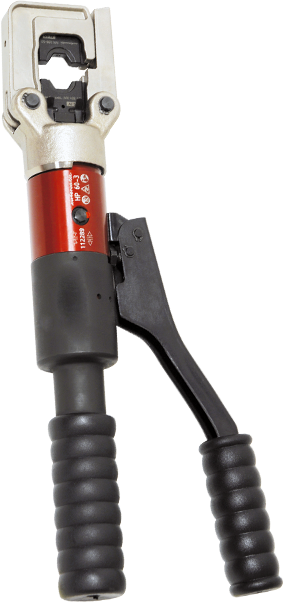

Intercable HP60-3 manual hydraulic crimping tool – hand pump
3-year or 20 000 cycle warranty

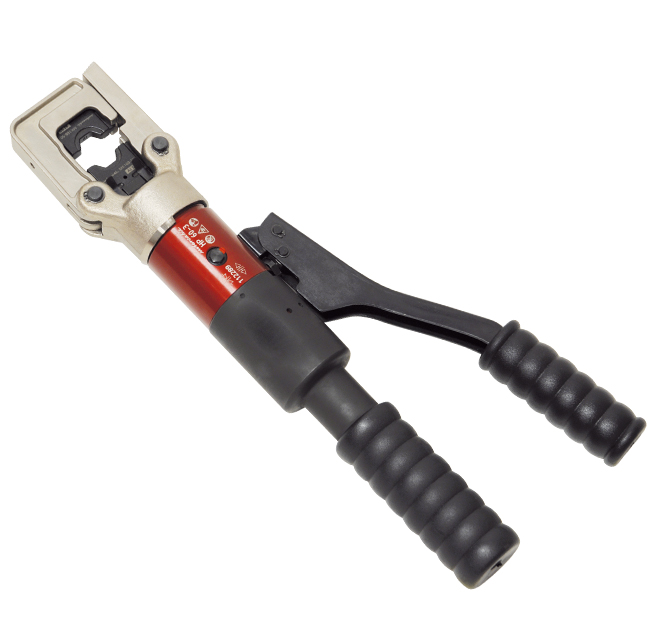

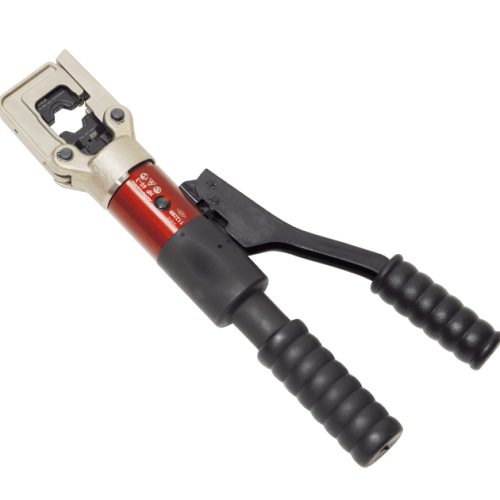

The manual hydraulic crimping tool Intercable HP60-3 is designed for electrical professionals seeking a compact, powerful and reliable tool. With a compression force of 60 kN, it enables safe crimping of copper and aluminum cables from 6 mm² to 240 mm². Its robust construction and swivel head offer great flexibility of use, even in confined environments such as electrical cabinets or cable trays.
Compression force: 60 kN · Pressure: 700 bar
Manual hydraulic crimping tool features
- Double hydraulic cylinder ensuring fast cycles, stable pressure and uniform crimping.
- Carabiner crimping head swiveling 180°for easier access to confined areas.
- Integrated automatic safety valve to prevent pressure overload.
- Manual ram return possible at any position via the main handle.
- Compact and ergonomic structure, resistant to impacts and light hydrocarbons.
Physical specifications
- Dimensions: 168 × 392 × 54 mm
- Weight: 2,5 kg
- Nominal pressure: 700 bar
- Maximum stroke: 17 mm
- Cross-section range: 6–240 mm² (Cu/Al)
Recommended uses
The HP60-3 crimping tool is suitable for connecting hexagonal terminals, installing splice sleeves, preparing low and medium voltage cables, and maintenance on industrial and commercial installations. Thanks to its swivel head, it reduces mechanical stress on the conductor core and ensures precise crimping in compliance with applicable standards.
Set contents
- Test report
- HP60-3 crimping tool
- User manual
Each tool is supplied in a rigid transport case with slots for 15 m dies (400 × 190 × 80 mm), enabling secure and organized storage on site.

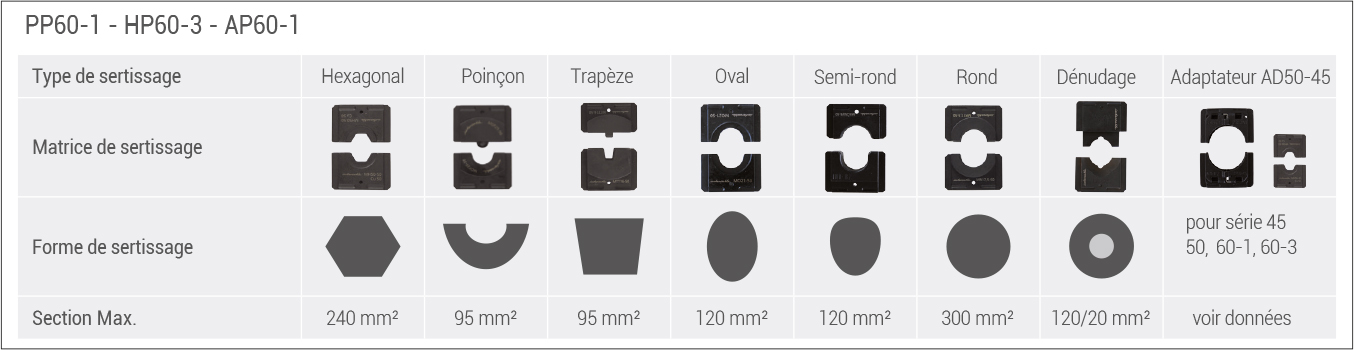

Compatible dies
The HP60-3 is compatible with dies from series 50 and 60-1/3. The choice of impressions depends on the cross-section and material of the conductor.View available dies.
