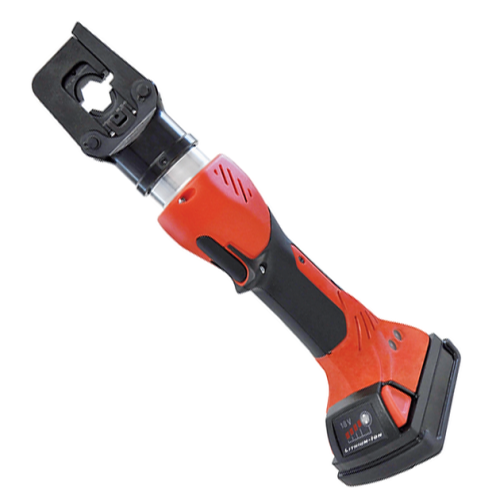

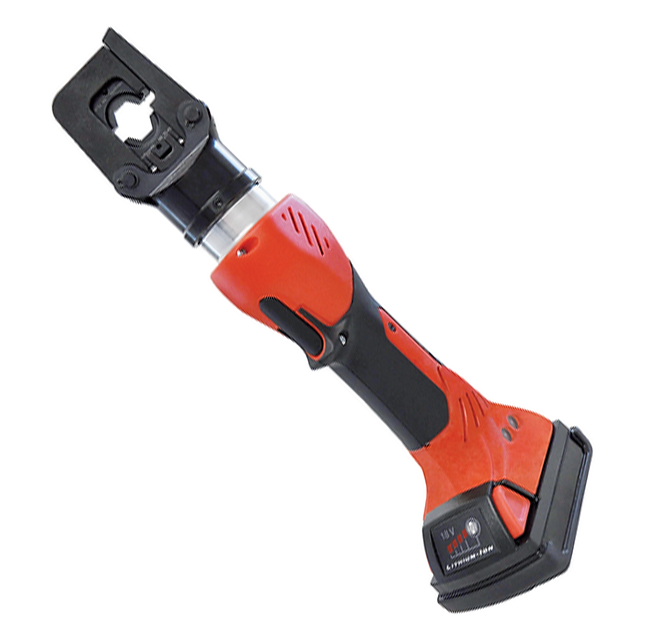

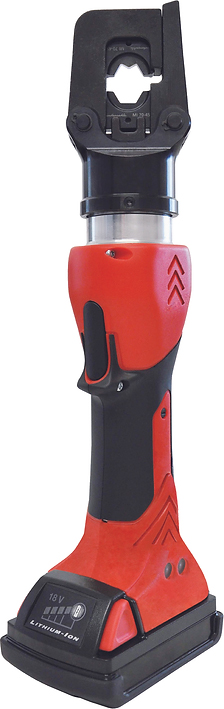

intercable STILO45 Battery-Powered Hydraulic Crimping Tool

The intercable STILO45 battery-powered hydraulic crimping tool is a compact, fast and precise electro-autonomous tool, designed for professional crimping of copper and aluminum cables up to 150 mm². It stands out for its 270° rotating head, its maneuverability and its high-performance hydraulic system, offering high reliability on demanding job sites.

Maneuverable – Ergonomic – Intelligent – Powerful

Suitable for crimping copper and aluminum cables from 6 mm² up to max. section 150 mm².
=> Compression force: 45 kN

Design and ergonomics of the intercable STILO45 crimping tool

• Lightweight, compact and robust structure.
• Ergonomic design usable by left- and right-handed users.
• 270° rotating head facilitating access in difficult areas.
• Balanced handle ensuring comfortable and secure grip.

Hydraulic performance of the electro-autonomous tool

• Three-axial-piston pump ensuring extremely fast work.
• Automatic pressure limitation and monitoring via electronic sensor.
• Progressive start and fast stop increasing motor service life.
• Automatic and manual return possible after crimping.
• Fast reopening thanks to high return flow.
• Maximum stroke: 16 mm.

Electronic control and safety

• Complete electronic monitoring of the crimping process.
• Automatic motor stop at the end of the cycle.
• Energy-saving mode after 5 mminutes of inactivity.
• Integrated service reminder and service control.
• Intelligent module with 2 LED multifunction (3 colors).
• Protection against interrupted cycles thanks to battery charge management.

Data storage and USB connectivity

• Internal memory of 100 000 cycles with error history.
• Reading and export via PC-compatible USB mini interface.
• Software updates available via USB.
• Software supplied on CD for compression curve analysis and diagnostics.

Power supply and autonomy

• Li-Ion battery 18 V (2.0 Ah) with charge level display.
• Optimized motor control for increased gearbox service life.

Physical specifications

• Dimensions: 124 × 369 × 81 mm
• Weight: 2,3 kg (with battery)

Case contents

• Test report
• Crimping tool STILO45
• Battery 18 V / 2.0 Ah Li-Ion (RA20)
• Charger (LG8)
• USB cable
• Software (CD)

Supplied in rigid transport case.

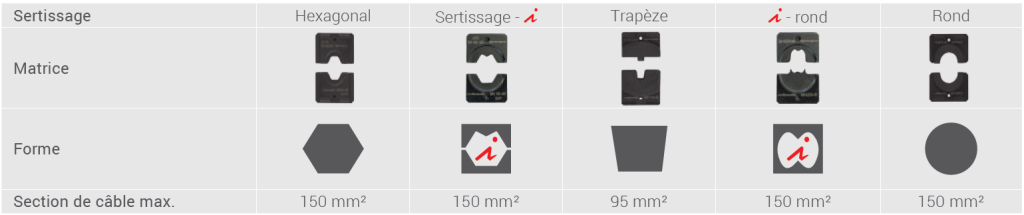

Compatible crimping dies

Compatible with 45series. Die selection according to cable section and material.View intercable dies

Demonstration video

Discover the STILO45 battery-powered hydraulic crimping tool in action:Watch the video on YouTube
