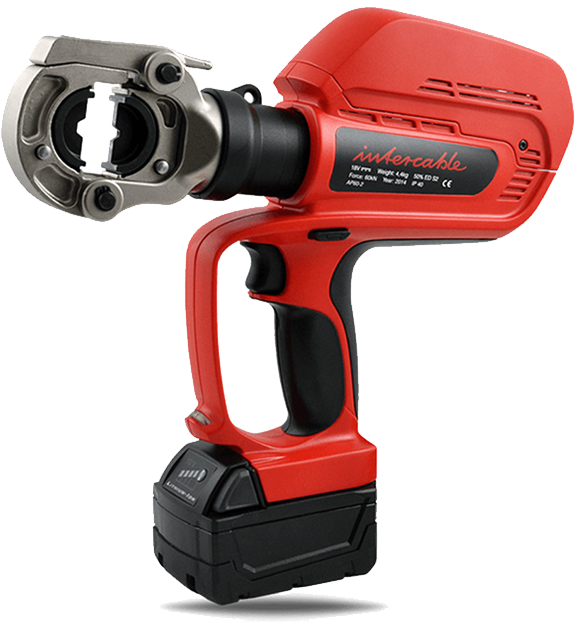

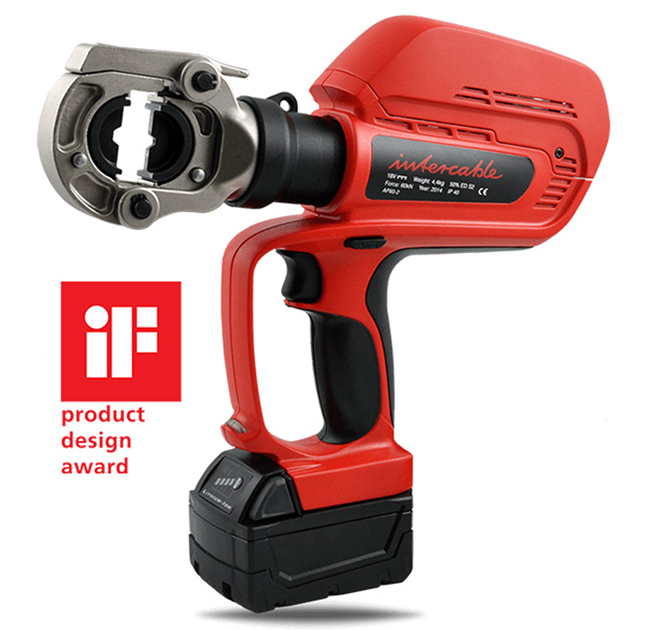

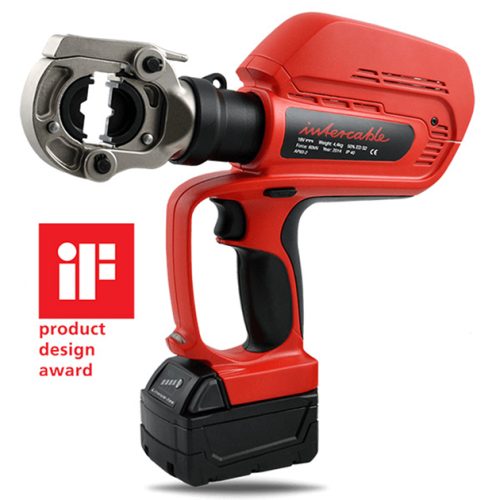

Intercable AP60-2 battery-powered hydraulic crimping tool – pistol grip design
3-year or 20 000 cycle warranty
The battery-powered hydraulic crimping tool Intercable AP60-2 is a self-powered tool for demanding electrical jobsites. Its quick handling, swivel head and high autonomy ensure consistent and safe cycles for crimping copper and aluminum conductors from 6 mm² to 300 mm².
Compression force: 60 kN.
Battery-powered hydraulic crimping tool specifications
- Dual hydraulic cylinder dual hydraulic cylinder architecture: short cycles, stable pressure, uniform die closure.
- Carabiner-closure head swiveling 360°: access to cabinets, manholes, busbars and confined spaces.
- One-touch decompression, operable with one hand, suitable for left/right-handed users.
- Balanced handle and shoulder strap ring: secure hold on ladders and aerial platforms.
- Housing and control in insulating polymers, high resistance to impact and light hydrocarbons.
- Integrated LED lighting for dark areas and poorly lit cabinets.
Physical specifications
- Dimensions: 331 × 334 × 75 mm
- Weight: 4,4 kg (with battery)
- Power supply: Li-ion battery 18 V / 3.0 Ah (RA50); charger LG8
- Cross-section range: 6–300 mm² (Cu/Al)
Recommended uses for a battery-powered hydraulic tool
LV/MV connections, power cabinet links, cable trays, commercial and industrial applications. The swivel head aligns the crimping impression, limits torsional stress on the core and ensures controlled deformation of terminals and sleeves according to dies and applicable standards.
Set contents
- Test report
- Tool AP60-2
- Battery 18 V / 3.0 Ah Li-ion (RA50)
- Charger (LG8)
- Shoulder strap
Supplied in rigid case with space for 18 mdies
(580 × 470 × 115 mm – total weight: 8,5 kg).

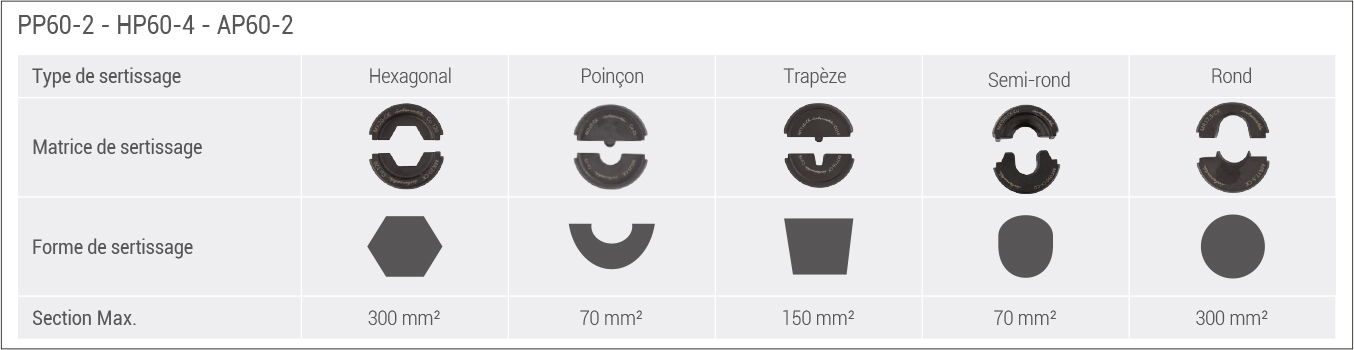

Compatible dies
Compatibility with series PP60-2 – HP60-4 – AP60-2.
Selection of impressions according to cross-section, material and standard. The battery-powered hydraulic crimping tool reaches 60 kN, suitable for standard hexagonal dies on Cu/Al.View dies
3D view
Explore the geometry and handling of the battery-powered hydraulic crimping tool in interactive model:access 3D view.
