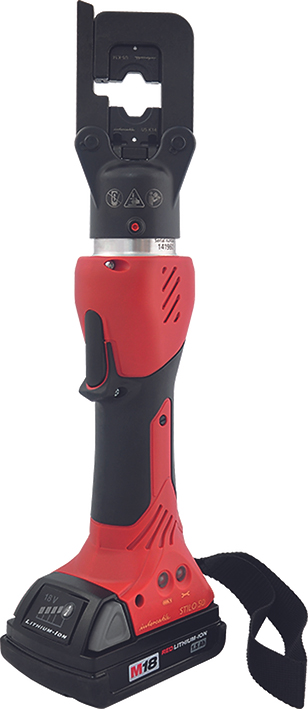

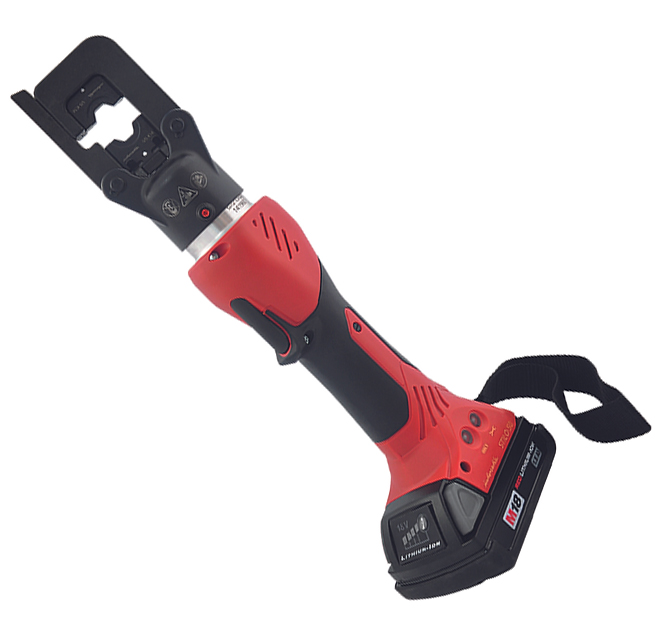

Intercable STILO50 Battery-Powered Hydraulic Crimping Tool

Intercable STILO50 battery-powered hydraulic crimping tool is a compact electro-autonomous tool, designed for professional crimping of copper and aluminum cables. Combining power, speed and precision, it is intended for installers seeking maneuverable, ergonomic and intelligent equipment for their on-site operations.

Maneuverable – Ergonomic – Intelligent – Powerful

Suitable for crimping copper and aluminum cables from 6 mm² up to max. cross-section 240 mm².
=> Compression force: 50 kN

Design and ergonomics of the Intercable STILO50 crimping tool

• Lightweight, compact and robust structure.
• Ergonomic design usable by left-handed and right-handed users.
• Balanced handle for safe and comfortable grip.

Hydraulic performance of the electro-autonomous tool

• Three-piston axial pump providing fast and constant operation.
• Automatic pressure monitoring via electronic sensor.
• Progressive start and fast stop extending motor service life.
• Automatic return and fast reopening after crimping.
• Maximum stroke: 16 mm.

Electronic control and safety

• Intelligent crimping cycle monitoring module.
• Automatic motor shutdown and integrated cycle management.
• Energy-saving mode after 5 mminutes of inactivity.
• 2 LED multifunction (3 colors) for cycle and battery status.
• Protection against interrupted cycles through continuous load monitoring.

Data storage and USB connectivity

• Internal memory of 100 000 cycles with error history.
• Data reading and export via USB port.
• Mini-USB interface compatible with PC and software updates.
• Analysis software supplied on CD (compression curves and diagnostics).

Power supply and autonomy

• Li-Ion battery 18 V (2.0 Ah) with integrated charge display.
• Optimized motor control to preserve the gearbox.

Physical specifications

• Dimensions: 120 × 403 × 75 mm
• Weight: 2,4 kg (with battery)

Case contents

• Test report
• Crimping tool STILO50
• Battery 18 V / 2.0 Ah Li-Ion (RA20)
• Charger (LG8)
• USB cable
• Software (CD)

Supplied in rigid transport case.

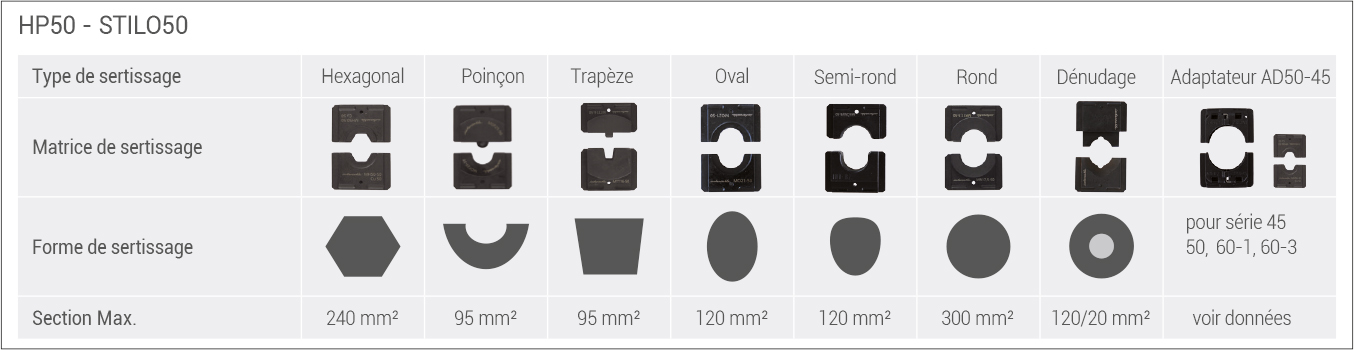

Compatible crimping dies

Compatible with 50series. Die selection according to cable cross-section and material.View intercable dies

Presentation video

Discover the STILO50 battery-powered hydraulic crimping tool in action:Watch the video on YouTube
