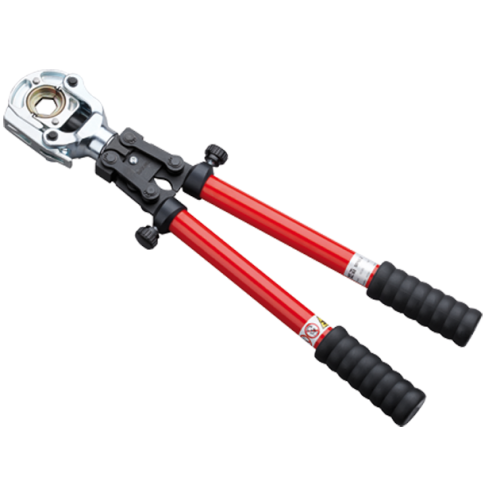

Manual hydraulic crimping tool MP60-2 – 60 kN for copper and aluminum terminals up to 300 mm²
manual hydraulic crimping tool MP60-2from Intercable is a compact and powerful tool designed for manual crimping of copper and aluminum terminals and sleeves up to 300 mm².
Its high-performance mechanical design combines robustness and ergonomics to provide precise and safe work on electrical sites.
With its force of 60 kN and its 360° rotating head, this manual hydraulic crimping tool guarantees uniform and fast crimping, compliant with low and medium voltage connection standards.
Intercable crimping tool features
- Application: copper / aluminum terminals and sleeves up to 300 mm²
- Crimping force: 60 kN
- Stroke: 19 mm
- 360° rotating head for optimal access
- Adjustable telescopic handles (340–540 mm) for reduced effort
- Compact and lightweight structure for easy transport
- Robust materials resistant to impacts and light hydrocarbons
Physical specifications
- Dimensions: 552 × 154 × 43,5 mm
- Weight: 3,6 kg
- Maximum force: 60 kN
- Effective stroke: 19 mm
MP60-2 set composition
- Intercable MP60-2 manual hydraulic crimping tool
- Storage bag for the tool and dies

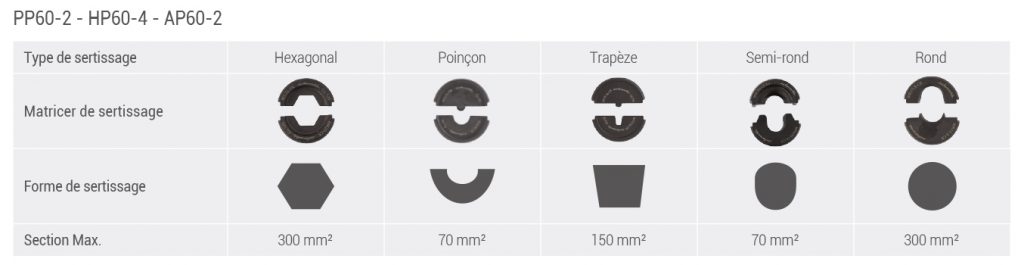

- Die correspondence table
Applications and uses
Ideal for electrical connection, cable preparation and industrial maintenance, this manual crimping tool provides precise and consistent crimping without external power source. Its mechanical leverage system ensures powerful compression while reducing user effort.
