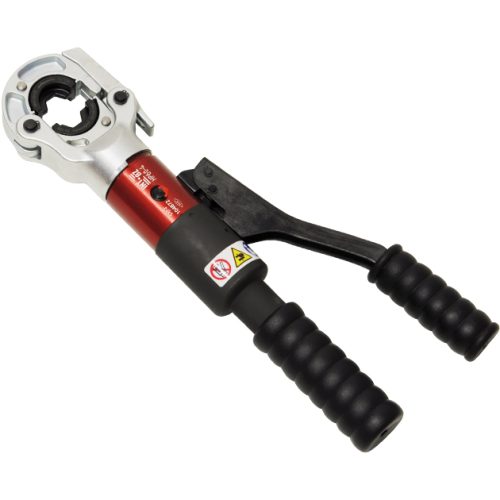

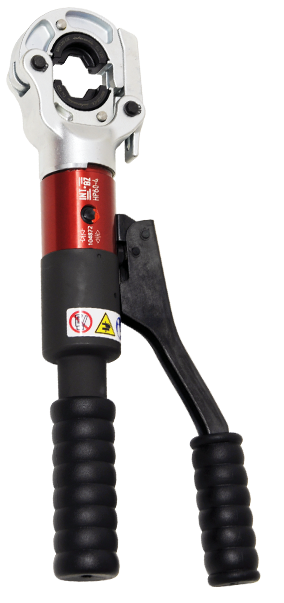

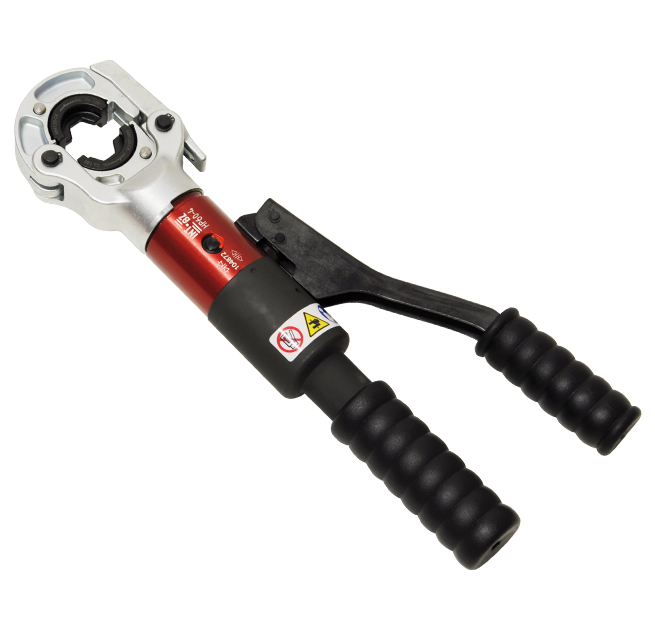

Intercable HP60-4 manual hydraulic crimping tool – hand pump
3-year or 20 000 cycle warranty
The manual hydraulic crimping tool Intercable HP60-4 delivers 60 kN for Cu/Al crimping from 6 mm² to 300 mm². Compact design, swivel head and dual-cylinder fast advance for short, consistent cycles on site.
Compression force: 60 kN · Pressure: 700 bar
Manual hydraulic crimping tool specifications
- Dual hydraulic cylinder architecture: short cycles, stable pressure, consistent die closure.
- Quick-closing crimping head with carabiner, swiveling 180°for access in cabinets and confined spaces.
- Automatic safety valve: integrated pressure limitation.
- Manual return to any position via main handle.
- Robust, compact structure: housing resistant to impacts and light hydrocarbons.
Physical specifications
- Dimensions: 176 × 396 × 54 mm
- Weight: 2,8 kg
- Rated pressure: 700 bar
- Max. stroke: 17 mm
- Cross-section range: 6–300 mm² (Cu/Al)
Recommended uses
LV/MV connections, hexagonal terminals and sleeves, cable trays, distribution panels. The swivel head reduces torsional stress on the core and guarantees controlled deformation according to dies and applicable standards.
Set contents
- Test report
- Crimping tool HP60-4
- Instructions
Supplied in rigid transport case with slots for 21 m dies (700 × 260 × 105 mm).

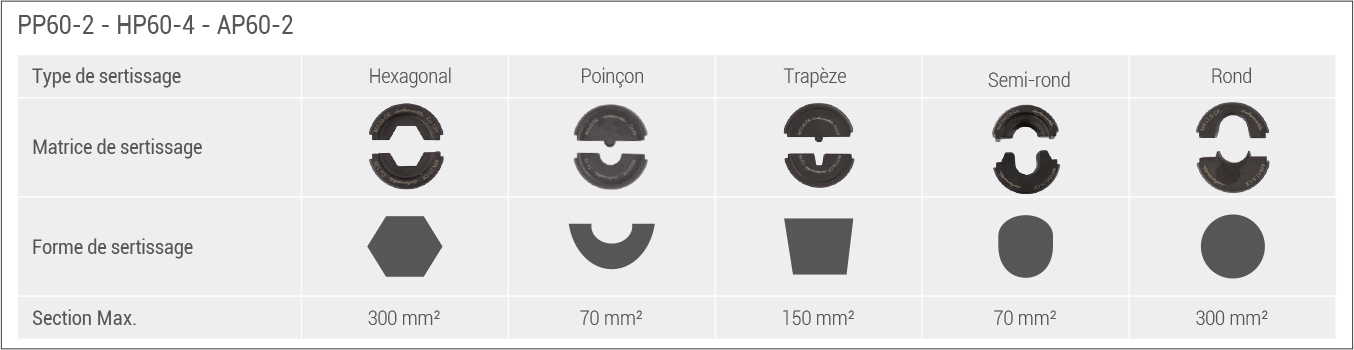

Compatible dies
Series compatibility 60-2/4. Die selection according to cross-section, material and reference standard (e.g. NFC 20-130).View dies
