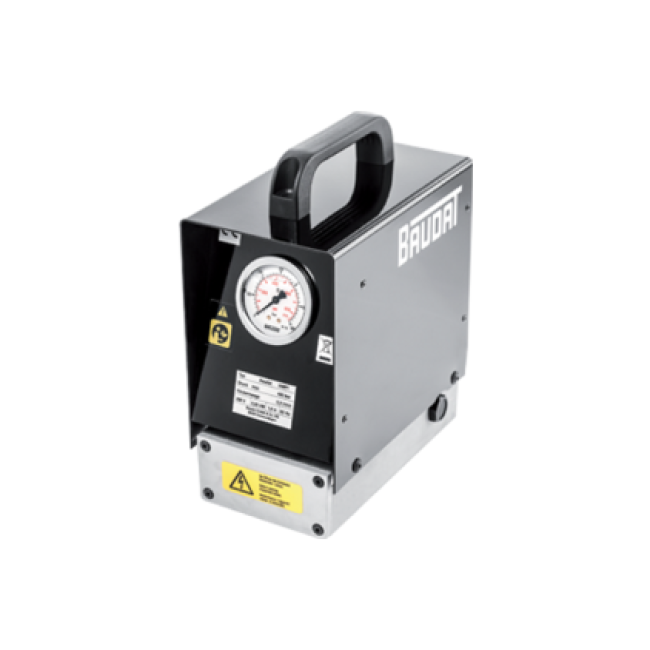

AP: Electro-Hydraulic Pump

Lithium-Ion battery-powered autonomous electro-hydraulic pump, designed to power BAUDAT hydraulic cable cutters.
Available in 450 or 700 bar depending on model, it provides a mobile, compact and reliable solution for operations on copper and aluminum cables.

Industry type

Electrical networks

Brand

Baudat

Request a quote

Request a quote, we will get back to you within N days

Request a quote

AP: Electro-Hydraulic Pump

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

Lithium-Ion battery-powered autonomous pumps.

=> Directly connectable with BAUDAT hydraulic cable cutters.

AP3: BAUDAT single-acting electro-hydraulic pumps – battery-powered autonomous unit – 450 or 700 bar depending on model

New 2ème generation pumps – Available in 450 or 700 bar

Operating pressure: 450 bar or 700 bar depending on model
Usable oil volume: 330 cm3
Flow rate: approximately 0.37 l/min for 450 bar version and 0.25 l/min for 700 bar version
Voltage: Lithium-Ion battery 18 V
Power: 3 Ah
Charging time: 22 min
LED charge indicator
Dimensions: 294 x 126 x 120 mm
Weight: approximately 5,8 kg
CEJN 115 series female quick coupler

AP4: BAUDAT single-acting electro-hydraulic pumps– battery-powered autonomous unit –450 or 700 bar depending on model

New 2ème generation pumps – AVAILABLE IN EN 450 OR 700 bar

Operating pressure: 450 bar or 700 bar depending on model
Usable oil volume approx. 500 cm3
Flow rate: approximately 0.84 l/min for 450 bar version and 0.71 l/min for 700 bar version
Voltage: Lithium-Ion battery 36 V
Power: 2.6 Ah
Charging time: 22 min
Dimensions: 321 x 156 x 150 mm
Weight: approximately 10 kg
CEJN 117 series quick coupler

All compatible with BAUDAT hydraulic cable cutters

Related services

Request a quote

Similar equipment

AP Electro-Hydraulic Pump

BAUDAT AP Electro-Hydraulic Pump.

AP Electro-Hydraulic Pump

AS 120-2 Hydraulic Cable Cutter

Application: Aluminum, Copper Max. diameter: ø 120mm Force 60 kN Operating press...

AS 120-2 Hydraulic Cable Cutter

AS 50 Hydraulic Cable Cutter

Application: Aluminum, Copper Max. diameter: ø 50mm Force 60 kN Operating pressu...

AS 50 Hydraulic Cable Cutter

AS 85 Hydraulic Cable Cutter

Application: Aluminum, Copper Max. diameter: ø 85mm Force 70 kN Operating pressu...

AS 85 Hydraulic Cable Cutter

AS 95 Hydraulic Cable Cutter

Application: Aluminum, Copper Max diameter: ø 95mm Force: 65 kN Operating pressu...

AS 95 Hydraulic Cable Cutter

Battery-powered pump for CP700 EC hydraulic cable cutters

1.5ml hydraulic hose (3ml on request) Supplied in nylon bag with carrying strap ...

Battery-powered pump for CP700 EC hydraulic cable cutters

Battery-powered pump for hydraulic cable cutters CP700

1.5ml hydraulic hose (3ml on request) Control screen Supplied in nylon bag with ...

Battery-powered pump for hydraulic cable cutters CP700

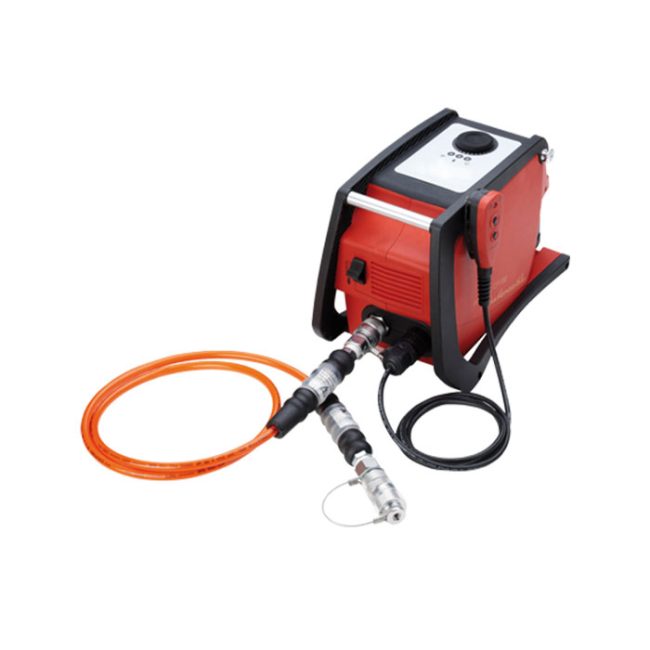

CP700 hydraulic pump – Intercable
