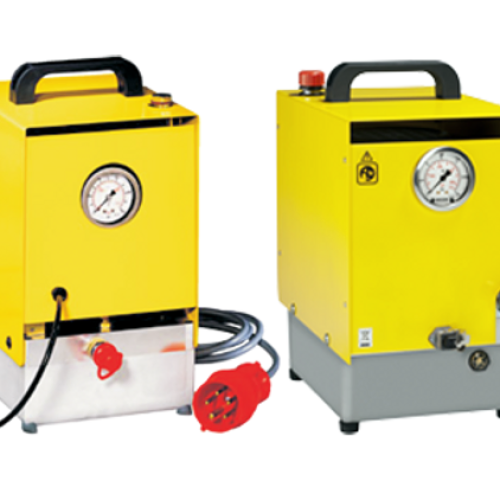

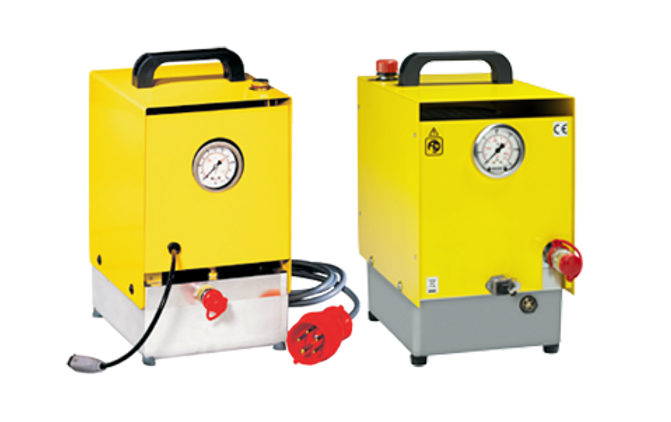

HMP2: Electro-Hydraulic Pump

BAUDAT HMP2 electro-hydraulic pump single or double acting, available in 450 or 700 bar.

Connectable to hydraulic cable cutters HS3-4 and KB10/65-20/100, with 230 V or 400 V power supply depending on model.

Industry type

Electrical networks

Brand

Baudat

Request a quote

Request a quote, we will get back to you within N days

Add to quote
  • Free / No obligation
Contact Us

Request a quote

Add to quote

HMP2: Electro-Hydraulic Pump

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

BAUDAT HMP2 Electro-Hydraulic Pumps are available in single or double acting version; with alternating or three-phase direct current (450 or 700 bars).

=> Directly connectable with hydraulic Cable Cutters ranges HS3-4 and KB10/65-20/100.

BAUDAT HMP2 WE Electro-Hydraulic Pumps: singleacting – Alternating current

  • Operating pressure: 450 bar or 700 bar (depending on model)
  • Usable oil volume: 1.3 l
  • Flow rate: approximately 2.45l/min at 450 bar – 1.7l/min at 700 bar
  • Voltage: alternating current 230 V – 50 Hz
  • Power consumption: 1,1 kW
  • Motor remote control: safety voltage 24 v
  • Dimensions: 320 x 215 x 380 mm
  • Weight: approximately 23 kg
  • Female quick coupling CEJN 115 series

BAUDAT HMP2 DE Electro-Hydraulic Pumps: singleacting – Three-phase current

  • Operating pressure: 450 bar or 700 bar (depending on model)
  • Usable oil volume: 1.3 l
  • Flow rate: approximately 2.45l/min at 450 bar – 1.7l/min at 700 bar
  • Voltage: three-phase current 400 V – 50 Hz
  • Power consumption: 1,1 kW
  • Motor remote control: safety voltage 24 v
  • Dimensions: 320 x 215 x 380 mm
  • Weight: approximately 23 kg
  • Female quick coupling CEJN 115 series

BAUDAT HMP2 WE RH Electro-Hydraulic Pumps: doubleacting – Alternating current

  • Operating pressure: 450 bar or 700 bar (depending on model)
  • Usable oil volume: 1.3 l
  • Flow rate: approximately 2.45l/min at 450 bar – 1.7l/min at 700 bar
  • Voltage: alternating current 230 V – 50 Hz
  • Power consumption: 1,1 kW
  • Motor remote control: safety voltage 24 v
  • Dimensions: 340 x 215 x 380 mm
  • Weight: approximately 23 kg
  • Coupling:
    • P: female quick coupling CEJN 115 series
    • R: female quick coupling CEJN 117 series

BAUDAT HMP2 DE RH Electro-Hydraulic Pumps: doubleacting – Three-phase current

  • Operating pressure: 450 bar or 700 bar (depending on model)
  • Usable oil volume: 1.3 l
  • Flow rate: approximately 2.45l/min at 450 bar – 1.7l/min at 700 bar
  • Voltage: three-phase current 400 V – 50 Hz
  • Power consumption: 1,1 kW
  • Motor remote control: safety voltage 24 v
  • Dimensions: 340 x 215 x 380 mm
  • Weight: approximately 23 kg
  • Coupling:
    • P: female quick coupling CEJN 115 series
    • R: female quick coupling CEJN 117 series

Compatible with BAUDAT hydraulic Cable Cutters
