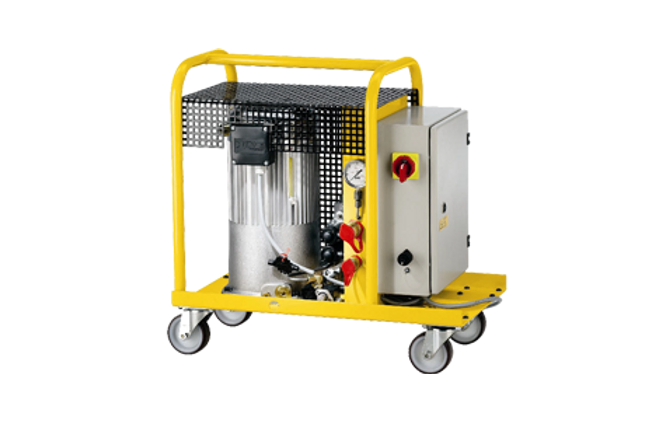

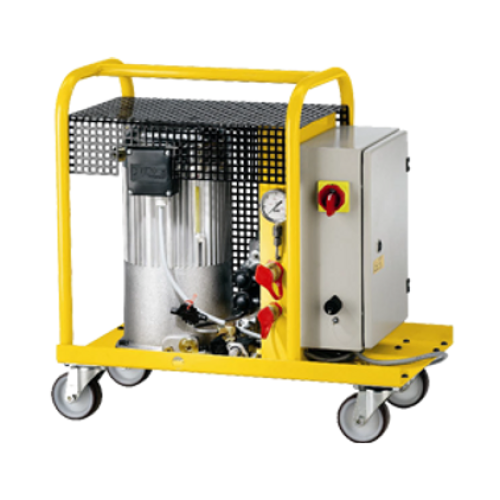

HMP3: Electro-Hydraulic Pump

BAUDAT HMP3 single or double acting electro-hydraulic pump for HS and KB hydraulic cable cutters. Three-phase model 400 V, with adjustable flow rate and continuous operation depending on version.

Industry type

Electrical networks

Brand

Baudat

Request a quote

Request a quote, we will get back to you within N days

Request a quote

HMP3: Electro-Hydraulic Pump

Robust equipment

Time savings

Local after-sales support

Operational safety

Description

BAUDAT HMP3 Electro-Hydraulic Pumps are available in single or double acting versions; with three-phase current with continuous operation depending on model.

=> directly connectable with all BAUDAT HS and KB hydraulic Cable Cutter ranges.

BAUDAT HMP3 DE Electro-Hydraulic Pumps:Singleacting – Three-phase current and depending on modelthree-phase current in continuous operation

Operating pressure: 360 bar
Useful oil volume: 2.4 l
Flow rate: approximately 4.2l/min adjustable
Voltage: three-phase current 400 V – 50 Hz
Power consumption: 2,2 kW
Motor remote control: safety voltage 24 v
Dimensions: 720 x 400 x 725 mm
Weight: approximately 79 kg
Female quick coupling CEJN 115 series

BAUDAT HMP3 DE RH Electro-Hydraulic Pumps: Double acting – Three-phase current and depending on modelthree-phase current in continuous operation

Operating pressure: 360 bar
Useful oil volume: 2.4 l
Flow rate: approximately from 0.3 to 4.2l/min adjustable
Voltage: three-phase current 400 V – 50 Hz
Power consumption: 2,2 kW
Motor remote control: safety voltage 24 v
Dimensions: 720 x 400 x 725 mm
Weight: approximately 79 kg
Connection:
- P: female quick coupling CEJN 115 series
- R: female quick coupling CEJN 117 series

Compatible with BAUDAT hydraulic Cable Cutters
